Asus AP2400R-E2(AS8) - Manual (Page 55)

A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 2 - 3 5 2 - 3 5 2 - 3 5 2 - 3 5 2 - 3 5
2.7.4 2.7.4 2.7.4 2.7.4 2.7.4 Slim optical and floppy drives Slim optical and floppy drives Slim optical and floppy drives Slim optical and floppy drives Slim optical and floppy drives

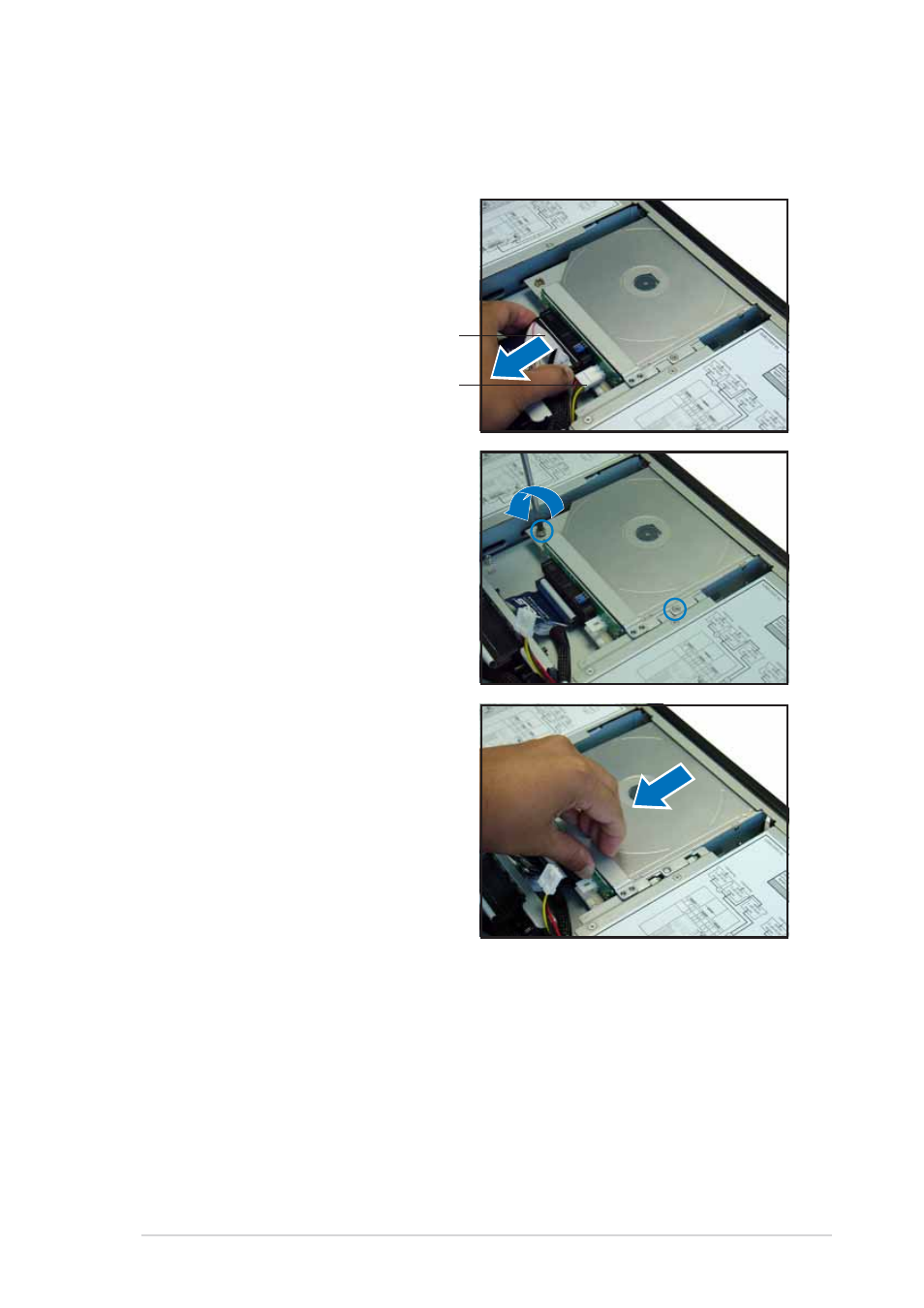

To uninstall the optical and floppy disk drives:
1. Disconnect the power and signal
cables connected to the rear of
the drives.
2. Loosen the screws that secure
the drive bracket to the chassis.
The optical drive is attached to
the top of the bracket, and the
floppy drive to bottom.
3. Slide the drive bracket toward
the SCSI backplanes to release it
from the chassis, then carefully
pull it out of the drive bay.
S i g n a l c a b l e S i g n a l c a b l e S i g n a l c a b l e S i g n a l c a b l e S i g n a l c a b l e
P o w e r c a b l e P o w e r c a b l e P o w e r c a b l e P o w e r c a b l e P o w e r c a b l e
