Incorrect installation of the CPU into the socket may bend the pins and
severely damage the CPU!

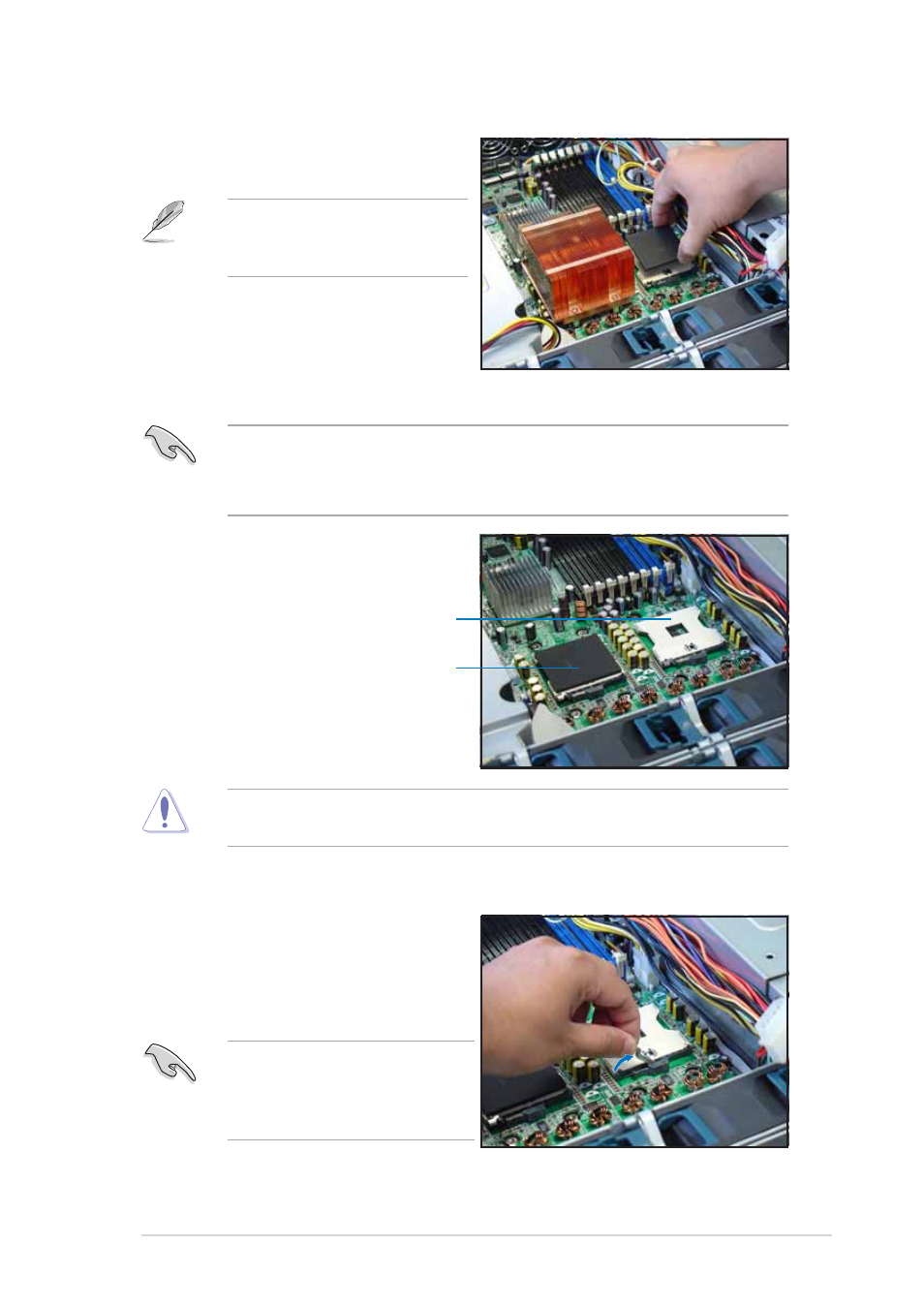

To install the CPUs:
1. Locate the CPU1 socket on the
motherboard. Flip up the socket
lever and push it all the way to
the other side.
Make sure that the socket
lever is pushed back all the
way. Otherwise the CPU does
not fit in completely.
• The motherboard supports either one or two CPUs. If you are
installing only one CPU, you MUST install it in CPU socket 1.
• If you are installing two CPUs, install in the CPU socket 2 first.
C P U S o c k e t 1 C P U S o c k e t 1 C P U S o c k e t 1 C P U S o c k e t 1 C P U S o c k e t 1
( o u t e r s o c k e t ) ( o u t e r s o c k e t ) ( o u t e r s o c k e t ) ( o u t e r s o c k e t ) ( o u t e r s o c k e t )
C P U S o c k e t 2 C P U S o c k e t 2 C P U S o c k e t 2 C P U S o c k e t 2 C P U S o c k e t 2
( i n n e r s o c k e t w i t h r u b b e r p a d ) ( i n n e r s o c k e t w i t h r u b b e r p a d ) ( i n n e r s o c k e t w i t h r u b b e r p a d ) ( i n n e r s o c k e t w i t h r u b b e r p a d ) ( i n n e r s o c k e t w i t h r u b b e r p a d )
2.2.2 2.2.2 2.2.2 2.2.2 2.2.2 Installing a CPU Installing a CPU Installing a CPU Installing a CPU Installing a CPU
4. Remove the rubber pad(s) on
top of the CPU socket(s).
Remove the rubber pad(s)
only when you are ready to
install the CPU(s).
