1.6 LED information

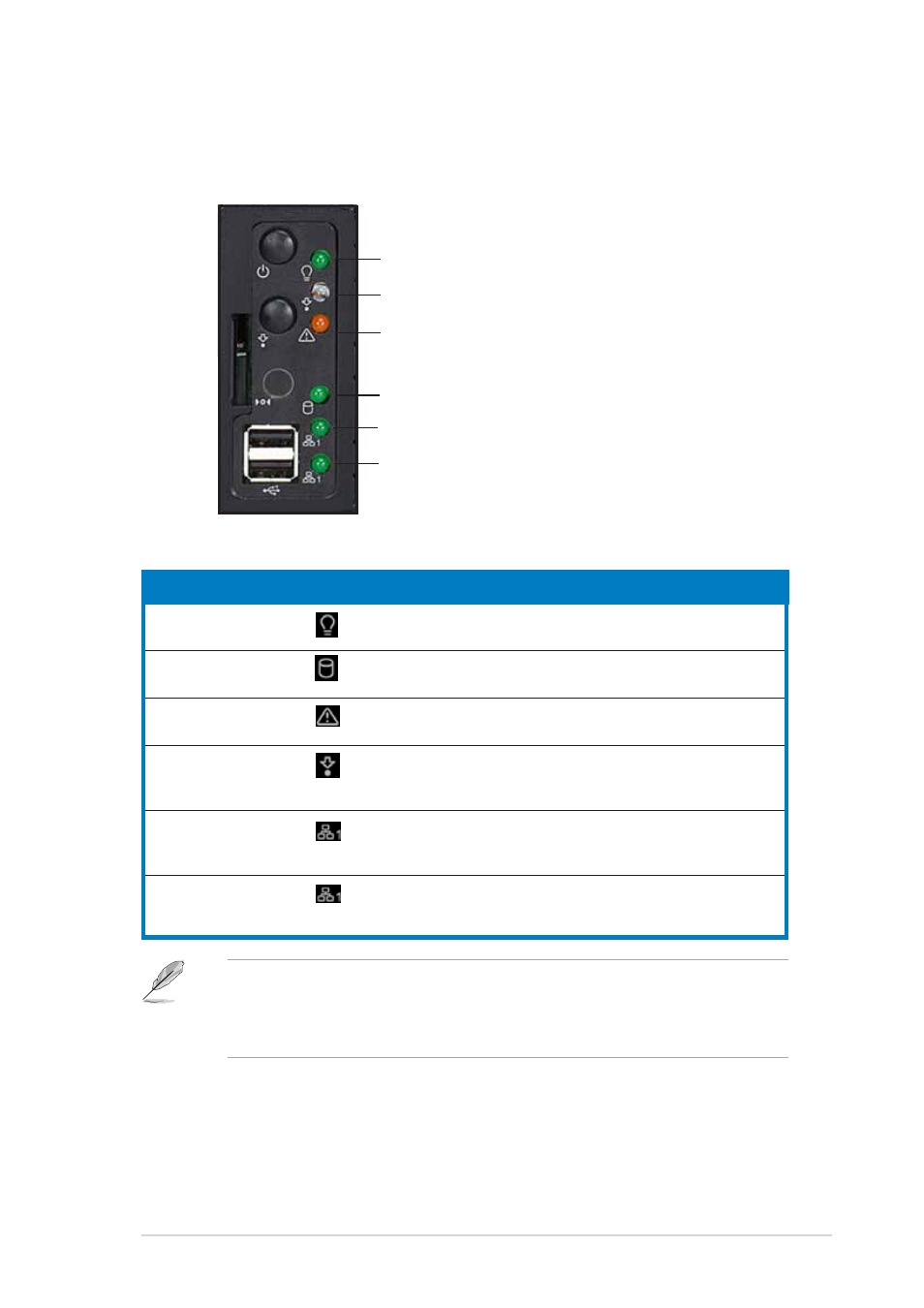

1.6.1 1.6.1 1.6.1 1.6.1 1.6.1 Front panel LEDs Front panel LEDs Front panel LEDs Front panel LEDs Front panel LEDs
The location switch and LED are for service purposes. When the system
fails or is shut down, the server administrator can press either the front
or the rear location switch to identify the location of the specific 2U
system in a rack cabinet.
L E D L E D L E D L E D L E D I c o n I c o n I c o n I c o n I c o n D i s p l a y s t a t u s D i s p l a y s t a t u s D i s p l a y s t a t u s D i s p l a y s t a t u s D i s p l a y s t a t u s D e s c r i p t i o n D e s c r i p t i o n D e s c r i p t i o n D e s c r i p t i o n D e s c r i p t i o n
Power LED ON System power ON
Storage Access LED OFF No activity
Blinking Read/write data into the HDD
Message LED OFF System is normal; no incoming event
Blinking ASWM indicates a HW monitor event
Location LED OFF Normal status
ON Location switch is pressed
(Press the location switch again to turn off)
LAN1 LED OFF No 64-bit Gbit LAN connection
Blinking LAN is transmitting or receiving data
ON LAN connection is present
LAN2 LED OFF No 64-bit Gbit LAN connection
Blinking LAN is transmitting or receiving data
ON LAN connection is present
P o w e r L E D P o w e r L E D P o w e r L E D P o w e r L E D P o w e r L E D
L o c a t i o n L E D L o c a t i o n L E D L o c a t i o n L E D L o c a t i o n L E D L o c a t i o n L E D
M e s s a g e L E D M e s s a g e L E D M e s s a g e L E D M e s s a g e L E D M e s s a g e L E D
S t o r a g e A c c e s s L E D S t o r a g e A c c e s s L E D S t o r a g e A c c e s s L E D S t o r a g e A c c e s s L E D S t o r a g e A c c e s s L E D
L A N 1 L E D L A N 1 L E D L A N 1 L E D L A N 1 L E D L A N 1 L E D
L A N 2 L E D L A N 2 L E D L A N 2 L E D L A N 2 L E D L A N 2 L E D
