Operating Manual SG Series 10 –20 – 30 - 40 kVA

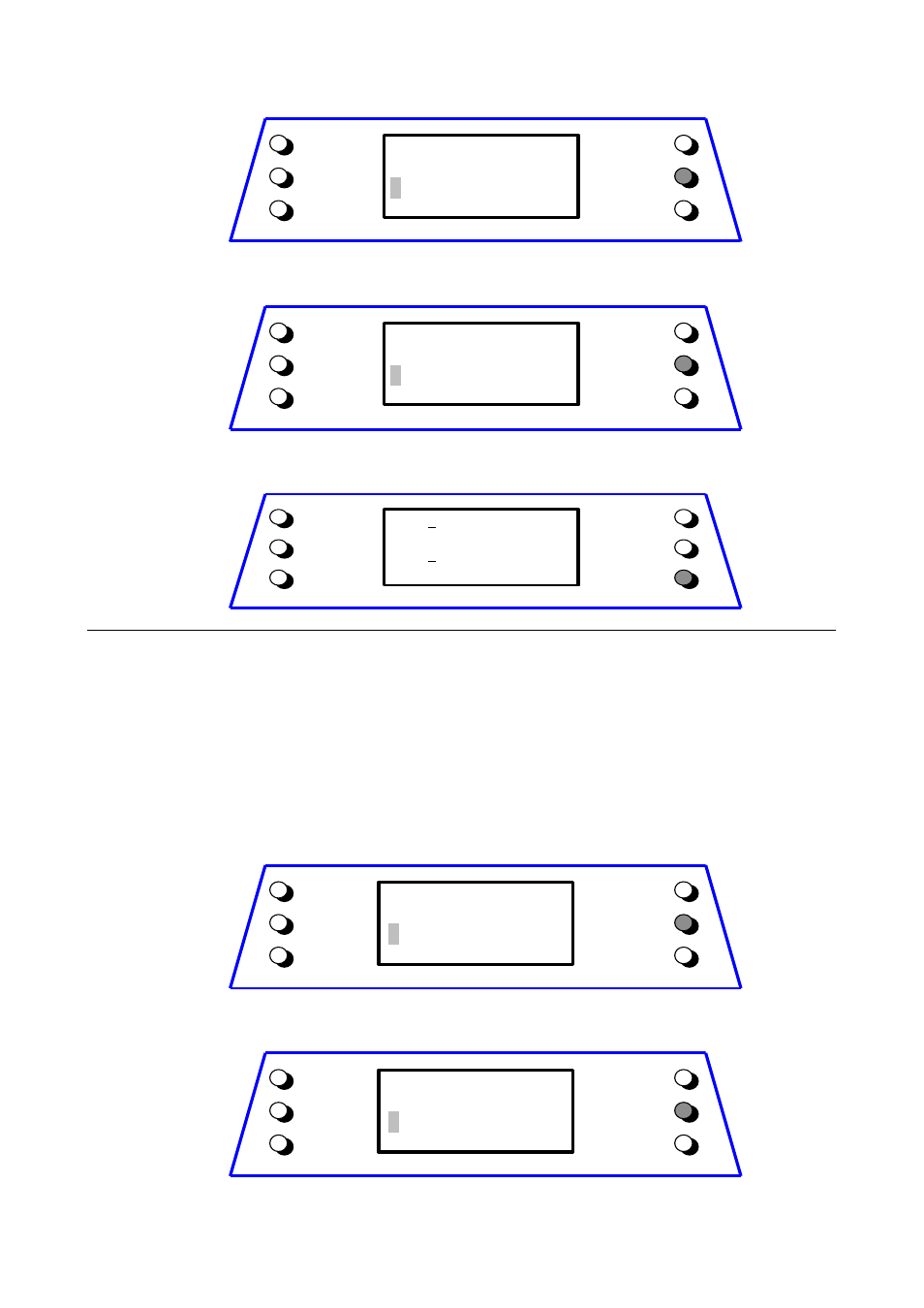

3 – Change the selected character (-).
EDIT MODE
PHONE NUMBER 2
005017464340
+ SCROLL
- CHANGE
metering
3
alarms
parameters
+
–
ok
4 – Change the selected character (-).
EDIT MODE
PHONE NUMBER 2
006017464340
+ SCROLL
- CHANGE
metering
4
alarms
parameters
+
–
ok
5 – Press ok: the screen will return to parameters mode saving the new value.
Tel1:002186394567
Tel1 enabled:
N
Tel2:006017464340
Tel2 enabled:
N
m e te rin g
5
a la rm s
p a ra m e te rs
+
–
ok
Type 2: Parameters having a limited range of values.
For example the parameter Printer Baud Rate has the range {600, 1200, 2400, 4800 and 9600}.
There is no need to edit this parameter digit by digit.
By pressing the [–] button the next value within the range is automatically provided by the software.
1 – Enter Edit mode for Printer Baud Rate, initial value = 1200.
EDIT MODE
PRINTER BAUDRATE
1200
+ SCROLL - CHANGE
metering
1
alarms
parameters
+
–
ok
2 – Change to 2400.
EDIT MODE
PRINTER BAUDRATE
2400
+ SCROLL - CHANGE
metering
2
alarms
parameters
+
–
ok
