Lineage Power 17
Data Sheet
June 26, 2009
36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
HW006/010/012 Series Power Modules; dc-dc Converters
Thermal Considerations (continued)

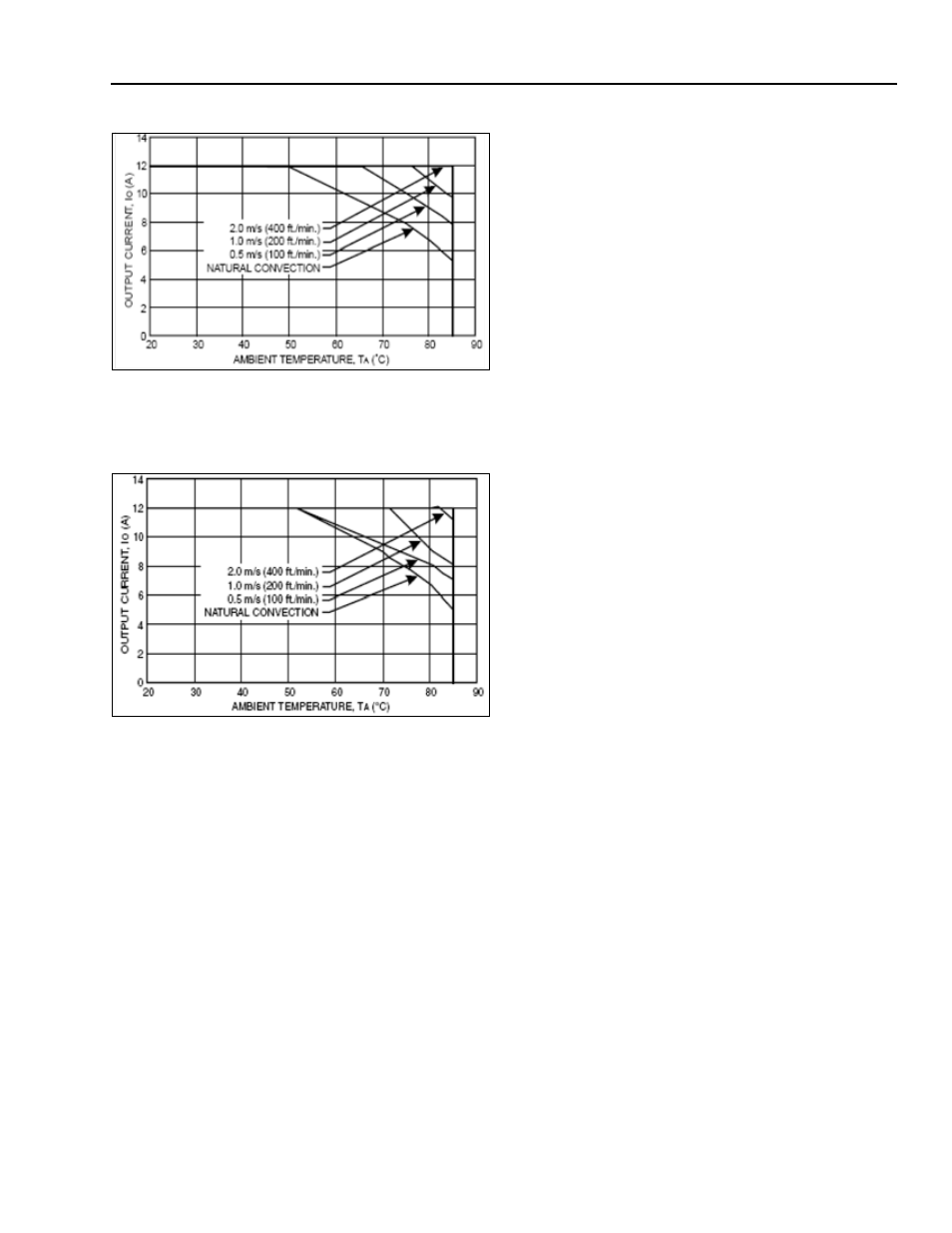

Figure 47. Derating Curves for HW012A0Y1
(VO = 1.8 V) in Transverse Orientation
(VI = 48 Vdc).
Figure 48. Derating Curves for HW012A0P1
(VO = 1.2 V) in Transverse Orientation
(VI = 48 Vdc).
Layout Considerations
Copper paths must not be routed beneath the power module.
For additional layout guidelines, refer to the FLTR100V10 or
FLTR100V20 data sheet.
EMC Considerations
For assistance with designing for EMC compliance, please
refer to the FLTR100V10 data sheet
(FDS01-043EPS)
