GE Industrial Solutions HW006-010-012 Series - Manual

Data Sheet
June 26, 2009

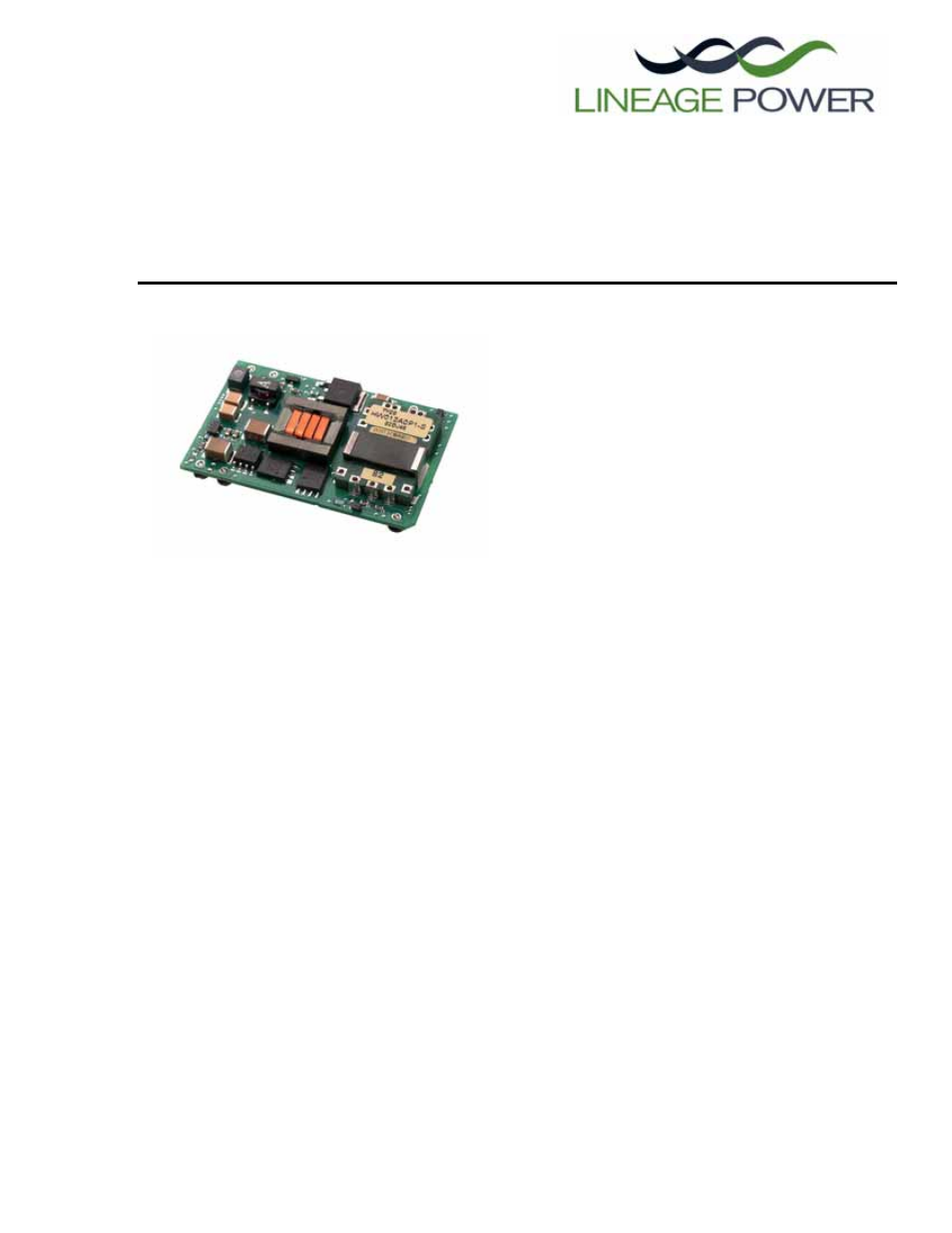

HW006/010/012 Series Power Modules; dc-dc Converters
36-75 Vdc Input; 1.2 Vdc to 5 Vdc Output; 6.6A to 12A
Document No: ADS02-006EPS ver.1.4
PDF Name: fds03-0031.pdf
Applications
n
Distributed Power Architectures
n
Wireless Networks
n
Access and Optical Network Equipment
n
Enterprise Networks
n
Latest generation IC’s (DSP, FPGA, ASIC) and Micropro-
cessor-powered applications.
Options
n Remote On/Off negative logic
n
Surface-mount package (–S Suffix)
n
Basic Insulation (–B Suffix)
Features
n
Compatible with RoHS EU Directive 200295/EC (-Z Ver-
sions)
n
Compatible in RoHS EU Directive 200295/EC with lead
solder exemption (non -Z versions)
n
Delivers up to 12A output current
n
High efficiency: 90% at 3.3V full load (VIN = 48V)
n
Small size and low profile:
47.2 mm x 29.5 mm x 8.50 mm
(1.86 in x 1.16 in x 0.335 in)
n Low output ripple and noise
n
Exceptional thermal performance
n
High reliability: MTBF > 4.5M hours at 25 °C
n
Remote On/Off positive logic (primary referenced)
n
Constant switching frequency (285 KHz typical)
n
Output overvoltage and overcurrent protection
n
Overtemperature protection
n
Input undervoltage lockout
n
Adjustable output voltage (± 10%)
n
Surface mount or through-hole package
n
Meets the voltage and current requirements for
ETSI 300-132-2 and complies with and is approved for
Basic Insulation rating per IEC60950 3
rd (-B version only)
n
UL* 60950 Recognized, CSA † C22.2 No. 60950-00 Certi-
fied, and VDE ‡ 0805 (IEC60950, 3rd edition) Licensed
n
CE mark meets 73/23/EEC and 93/68/EEC directives §
n
ISO** 9001 and ISO14001 certified manufacturing facili-
ties
RoHS Compliant
Description
The HW series power modules are isolated dc-dc converters that can deliver up to 12A of output current and provide a precisely
regulated output voltage over a wide range of input voltages (VI = 36 V to 75 Vdc for HW modules). The modules achieve full load
efficiency of 90% at 3.3 V output voltage. The open frame modules, available in both surface-mount and through-hole packaging,
enable designers to develop cost- and space-efficient solutions. Standard features include remote On/Off, output voltage adjust-
ment, overvoltage, overcurrent and overtemperature protection.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§ This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be followed. (The CE mark is placed on selected products.)
** ISO is a registered trademark of the Internation Organization of Standards
