Galaxy Power System 4848/100 with 595 Series Rectifiers S1:3 and later
Issue 10 February 2008 System Description 2 - 7
Cabinet Cabling Options
Standard Standard cabinets are designed so that ac, battery, and dc load cables are
run through the top of the cabinet.
Non-Traditional Any of the battery panels and dc load panels (shown in Sections 6 and
7) may be used in cabinets that have non-traditional cabling orientations.
However, only G20, G22, G24, G26, and G70 ac panels (shown in
Section 5) are available for these cabinets (see Figure 2-6). Suffixes of
the ac panels indicate the cabling arrangements listed below:
AC
Panel
Suffix
Cabling Arrangement
AC Battery and DC Load
A Through bottom of cabinet Through bottom of cabinet
B Through bottom of cabinet Through top of cabinet
C Through top of cabinet Through bottom of cabinet
Note: Check H569-434 for availability.

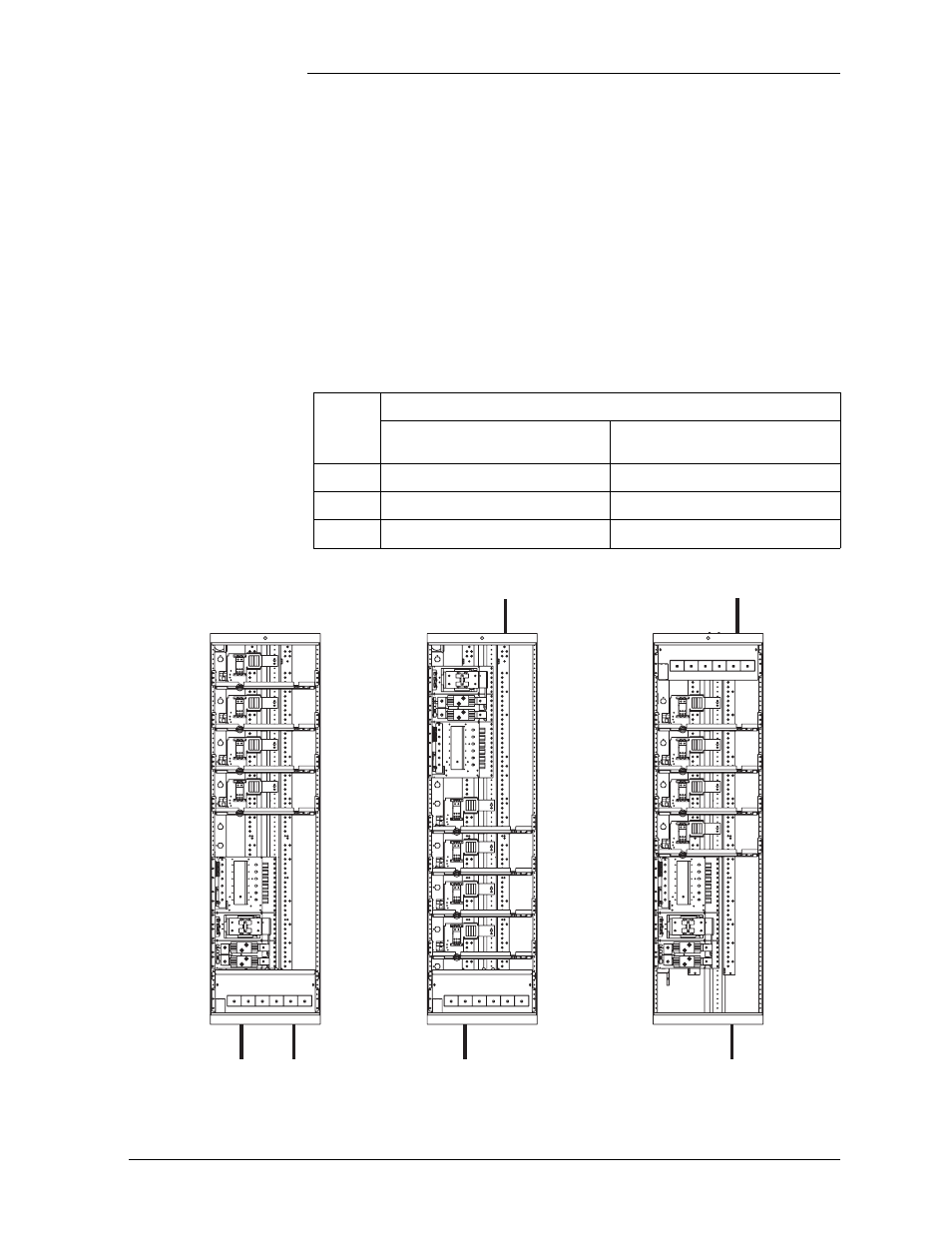

Figure 2-6: Non-Traditional Cabling Arrangements
AC Input
Battery and
DC Load Leads AC Input
Battery and
DC Load Leads
AC Input Battery and
DC Load Leads
"A" Arrangement "B" Arrangement "C" Arrangement
