GE Data Sheet
CAR0812FP series rectifier
Input: 85V
AC
to 264V
AC
; Output: 12V
DC
@ 850W; 3.3V
DC
or 5 V
DC
@ 1A
May 2, 2013 ©2013 General Electric Company. All rights reserved. Page 13

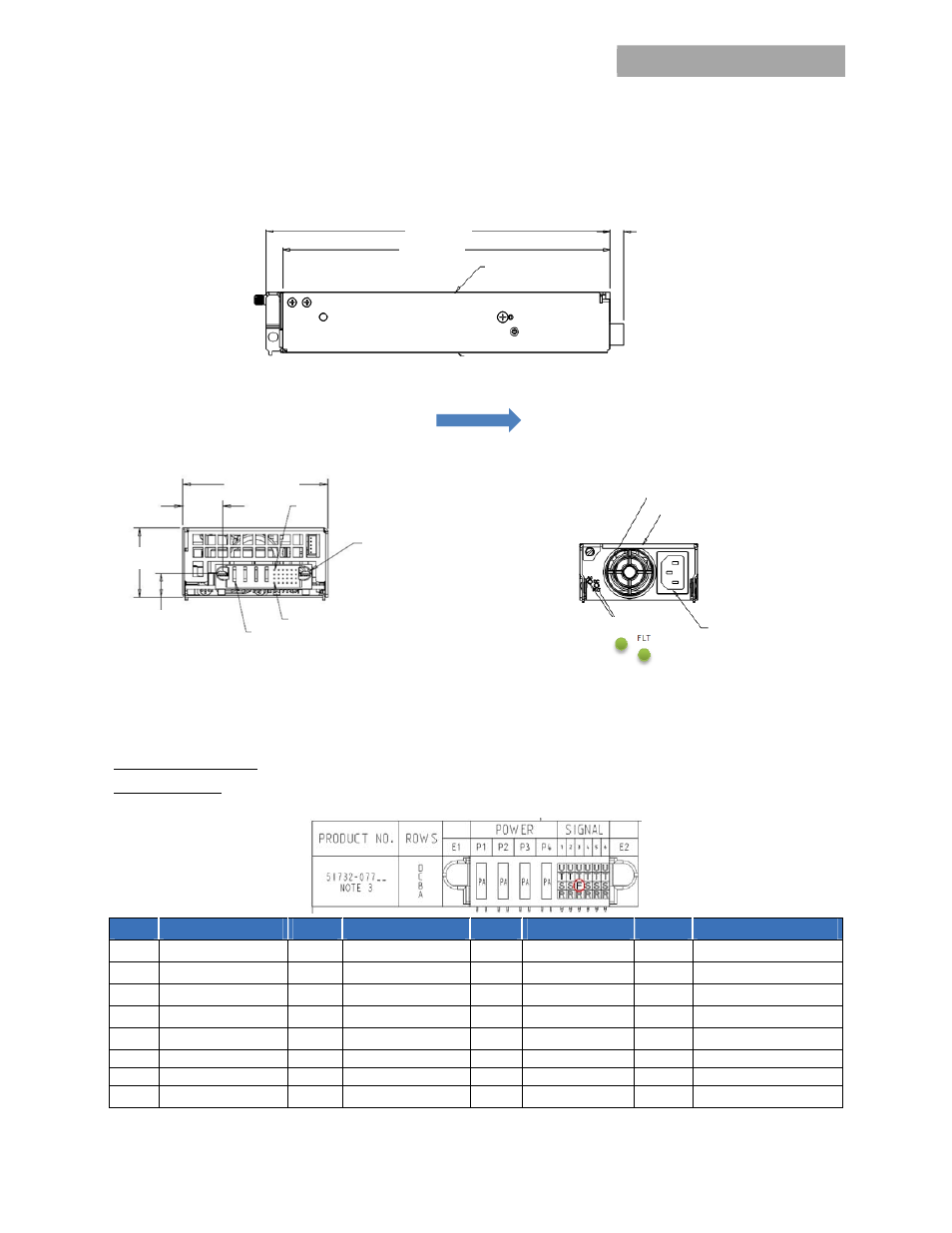

Outline Drawing
airflow
Connector Pin Assignments
Input Mating Connector: IEC320, C13 type
Output Connector: FCI Berg P/N: 51732-077LF (replaces 51722-10402400ABLF)
Mating connector: 51762-10402400ABLF
Pin Function Pin Function Pin Function Pin Function
A1 V
STDBY
[3.3V] B1 Fault C1 ISHARE D1 VProg
A2 V
STDBY
[3.3V] Return B2 I Monitor (IMON) C2 N/C D2 OVP Test Point
A3 Signal Return B3 Enable C3 Over Temp Warning D3 Remote ON/OFF
A4 Write Protect (WP) B4 PS Present C4 I 2 C Address (A0) D4 DC OK
A5 Remote Sense (+) B5 SDA (I 2 C bus) C5 I 2 C Address (A1) D5 INPUT OK
A6 Remote Sense (-) B6 SCL (I 2 C bus) C6 I 2 C Address (A2) D6 SMBAlert#/Interrupt
P1 +V
OUT
P2 +V
OUT
P3 Output Return P4 Output Return
AC DC
FLT
.935
3.380 ± .020
1.610 ± .020
.555
D1
A1
PIN 1
OUTPUT CONNECTOR
INPUT CONNECTOR
BEZEL
HANDLE
9.172 ±.020
8.730 ±.020
.370 ±.020
COVER
