Introduction – GE Industrial Solutions AF-60 LP Micro Drive User Manual
Page 6
2. Introduction
2.1.1. Drive Identification

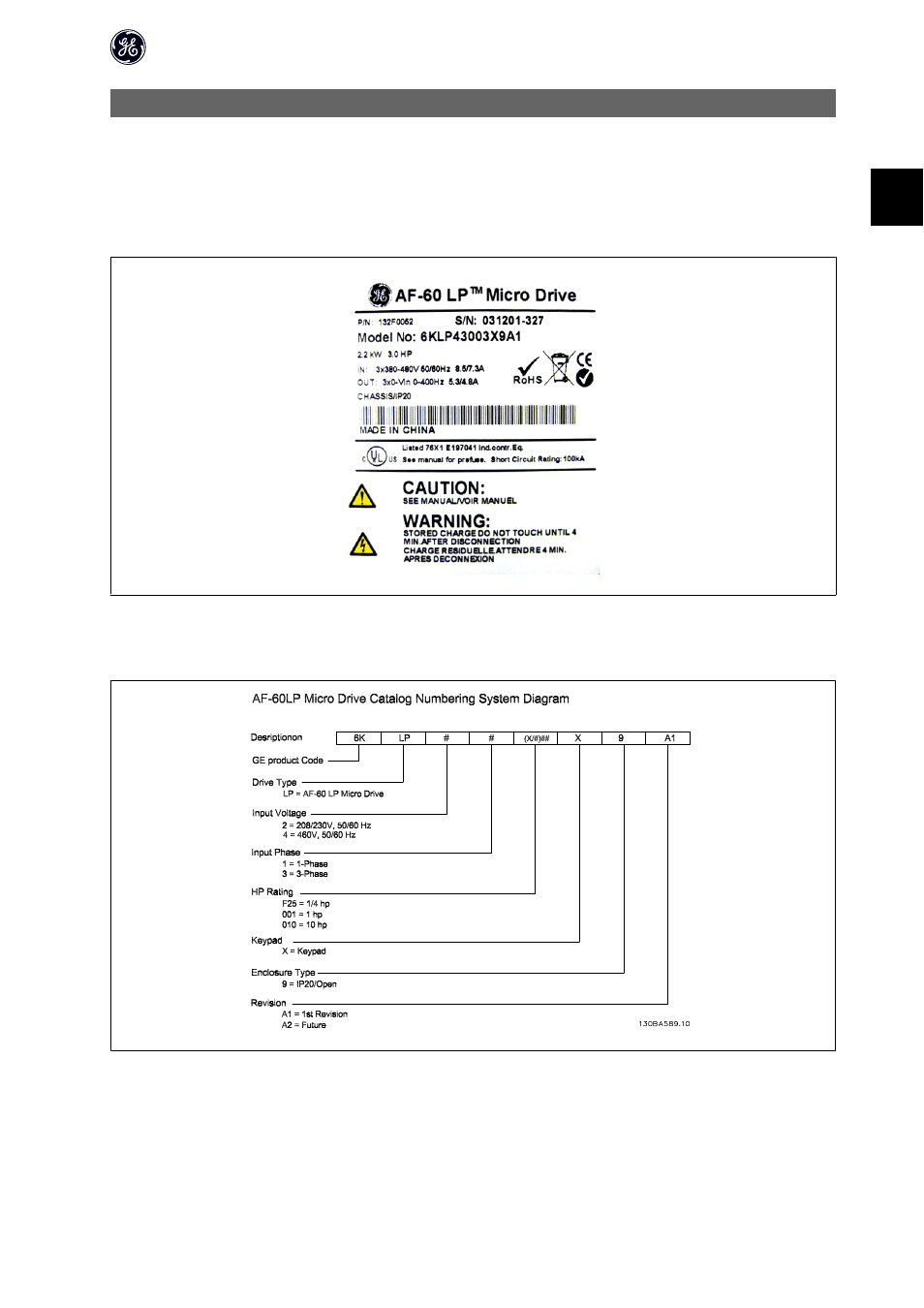

Below is an example of the frequency converter nameplate sticker. This sticker is located on the top of each frequency converter and shows the ratings, serial
number, warnings catalog number, and other relevant data for each unit. See following tables for details, how to read the Type code string.
130BA505
Illustration 2.1: This example shows the identification sticker.
2.1.2. AF-60 LP Micro Drive Model Number System Diagram
AF-60 LP™ Micro Drive Programming Guide
5
2
