GE Industrial Solutions MicroVersaTrip Plus and MicroVersaTrip PM AK-1-15, AK-1-25 User Manual
Page 10
10
Solid State Trip Device Removal (K-3000S
and K-4000S only)
1. Remove the seven mounting screws from the
front escutcheon, as shown in Figure 17, and lift
off the escutcheon. Retain all the mounting
hardware.
2. Loosen the two retaining bolts securing the arc
chutes, as shown in Figure 18. Lift out the arc
chute assemblies from each pole.
3. Remove the nine mounting screws securing the
auxiliary switch mounting plate to the breaker, as
shown in Figure 19. Remove the mounting plate.
CAUTION: If the breaker contains auxiliary switches,
the auxiliary switch mounting plate must be
temporarily supported to the side in order to
prevent accidental damage to the breaker’s integral
wiring harness.

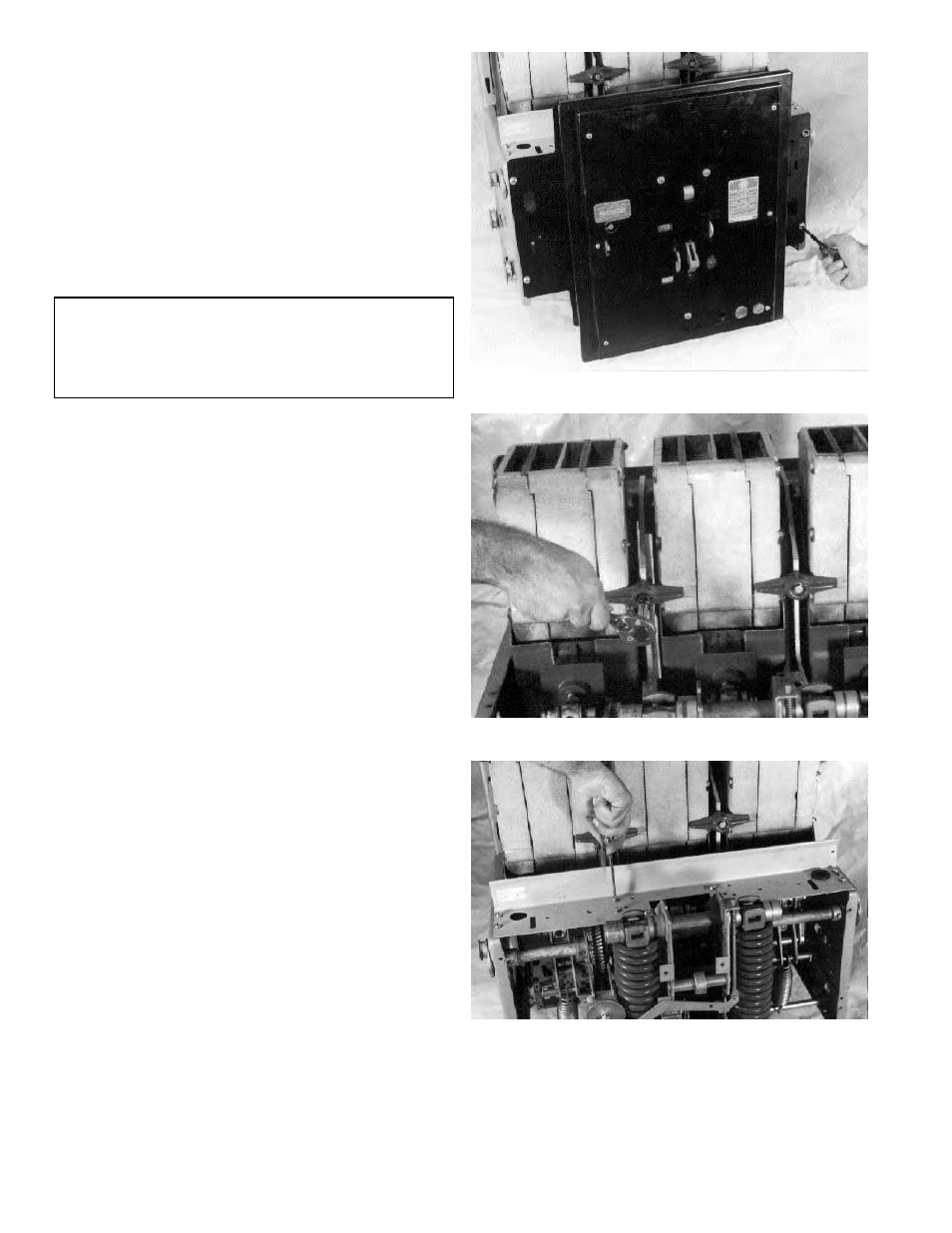

Figure 17. Escutcheon removal.
Figure 18. Arc chute removal.
Figure 19. Auxiliary switch mounting plate removal.
