CAR1212DC series DC-DC converter
Input: -36V
D C
to -75V
DC
; Output: 12V
DC
@ 1200W; 3.3V
DC
or 5 V
DC
@ 1A
October 21, 2013 ©2013 General Electric Company. All rights reserved. Page 15

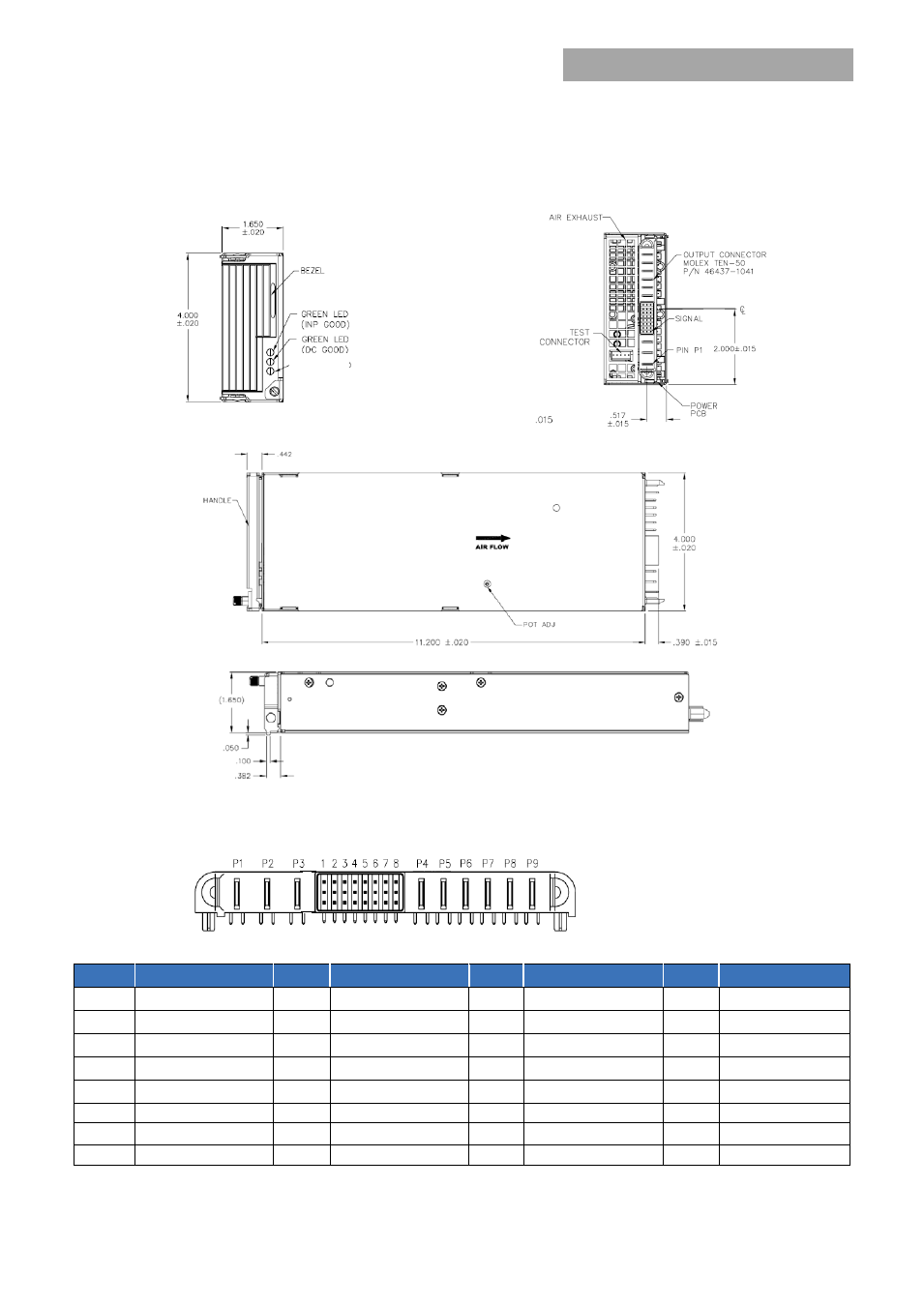

Outline Drawing
Connector Pin Assignments
Input/Output Molex P/N: 46437-1041
Mating connector: Molex P/N: 46436-1041
Pin Function Pin Function Pin Function Pin Function
A1 Vprog B1 Write Protect (WP) C1 Remote ON/OFF P1 V
IN
( + )
A2 PS Present B2 DC OK C2 SDA (I 2 C bus) P2 V
IN
( - ) [return]
A3 OVP Test Point B3 INPUT OK C3 SCL (I 2 C bus) P3 GND
A4 Fault B4 V
STDBY
return C4 Vstb return
A5 Remote Sense ( + ) B5 SMBAlert (Interrupt) C5 I 2 C Address (A2) P4 – P6 +12V
DC
A6 Temperature OK B6 I Monitor (IMON) C6 I 2 C Address (A1) P7 – P9 Power Return
A7 N/C B7 V
STDBY
[3.3V]
C7 I 2 C Address (A0)
A8 Remote Sense ( - ) B8 Enable (short pin) C8 Ishare
RED LED
(FAULT)
A
B
C
C1
