Data Sheet
September 10, 2013
Austin Lynx
TM
24V:Non-isolated Power Modules:
18/20-30/32Vdc input; 3 to 6Vdc & 5 to 15Vdc Output; 30/50W
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS05-032 ver.1.23
PDF name: lynx_24v_ds.pdf
Features
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 20002/95/EC with
lead solder exemption (non-Z versions)
Wide input voltage range
AXB030: 18
to
30Vdc
AXB050:
20 to 32Vdc
Output voltage programmable via external resistor
AXB030: 3Vdc
to
6Vdc
AXB050: 5Vdc
to
15Vdc
High efficiency modules (V
IN
= 24Vdc)
AXB030:
91% at 3.3V full load
AXB050:
94% at 12Vdc full load
Low output ripple and noise
Monotonic start-up into pre-bias output
Remote On/Off (Positive logic)
Remote Sense
Small size and low profile:
33.0 mm x 13.5 mm x 8.28 mm
(1.30 in x 0.53 in x 0.326 in)
Constant switching frequency
Wide operating temperature range (-40°C to
85°C)
Over current and Over temperature protection (non-
latching)
UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-
03 Certified, and VDE
‡
0805:2001-12 (EN60950-1)
Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Wireless Base stations
Industrial equipment
LANs/WANs
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC)
and Microprocessor powered applications
Description

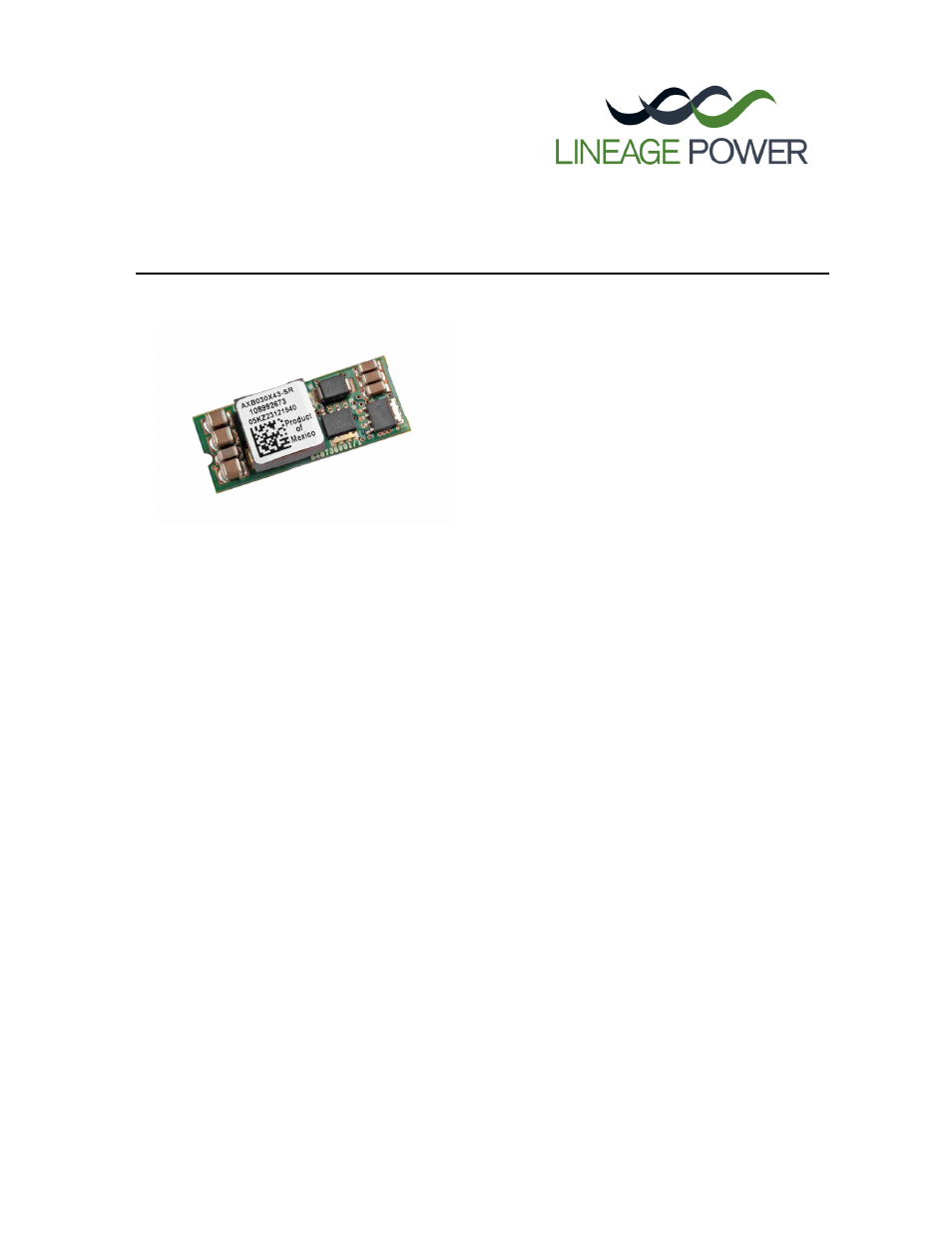

The Austin Lynx
TM
24V series SMT power modules are non-isolated DC-DC converters in an industry standard
package that can deliver up to 48W of output power with a full load efficiency of 94% at 12Vdc output voltage (V
IN
=
24Vdc). These modules operate over a wide input voltage range (V
IN
= 18/20 – 30Vdc) and provide a precisely
regulated output voltage from 3 to 6Vdc (AXB030) and 5 to 15Vdc (AXB050), programmable via an external resistor.
Standard features include remote On/Off, adjustable output voltage, remote sense, over current and over
temperature protection.
RoHS Compliant
