2: Installing Jaz
12 013-RD000-000-02-201103

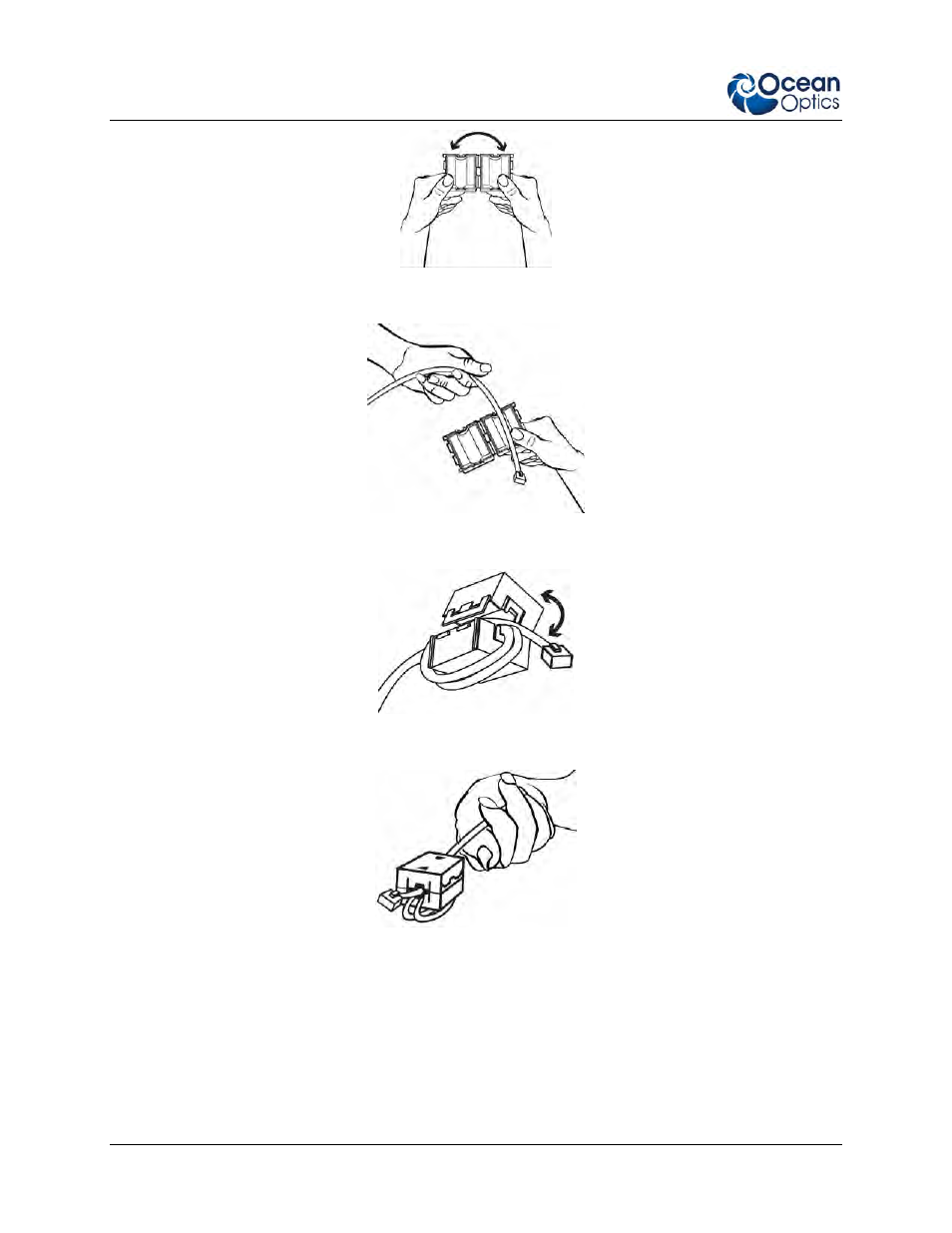

3. Place the ferrite on the Ethernet cable as close to the connector for the computer as possible.
4. Loop the Ethernet cable through the ferrite twice.
5. Snap the ferrite closed to lock it in place.
6. Plug the Ethernet cable into the Ethernet connector on the JAZ-E module, and then to a Power
Over Ethernet (POE) bridge or switch to the network (e.g., an 8-port network hub).
