A: Reference
26 000-20000-090-02-1209

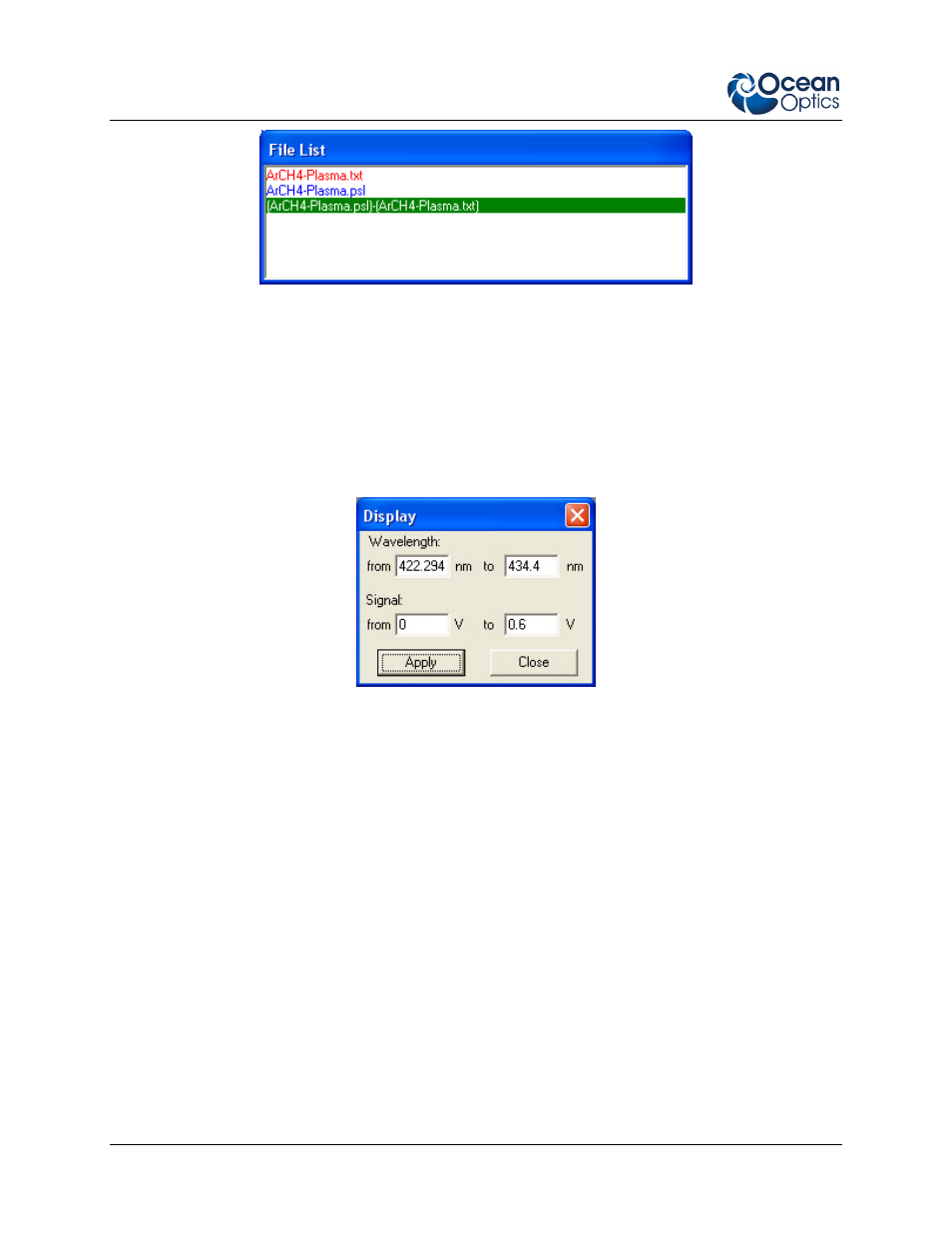

A spectrum must first be selected before it is evaluated and processed. Select a spectrum by selecting its
corresponding file in this dialog box. The selected spectrum is highlighted in the file list and the file name
is displayed in the title bar of the Diagram window.
Display
Use this dialog box to change the range displayed in the diagram. The Display dialog box is available for
Diagram windows and remains open until you close it.
Wavelength
Only the data of the given wavelength range is displayed in the diagram.
Signal
Only the data of the given signal range is displayed in the diagram.
Scaling
Use this dialog box to shift a spectrum or change the dispersion, which may be necessary if the
wavelength or the dispersion could not be specified exactly during the data acquisition process. The
Scaling dialog box is available for Diagram windows and remains open until you close it.
