2: Desktop Software Installation and Operation
20 PHSENSOR-TRANS-REFLECT-201111

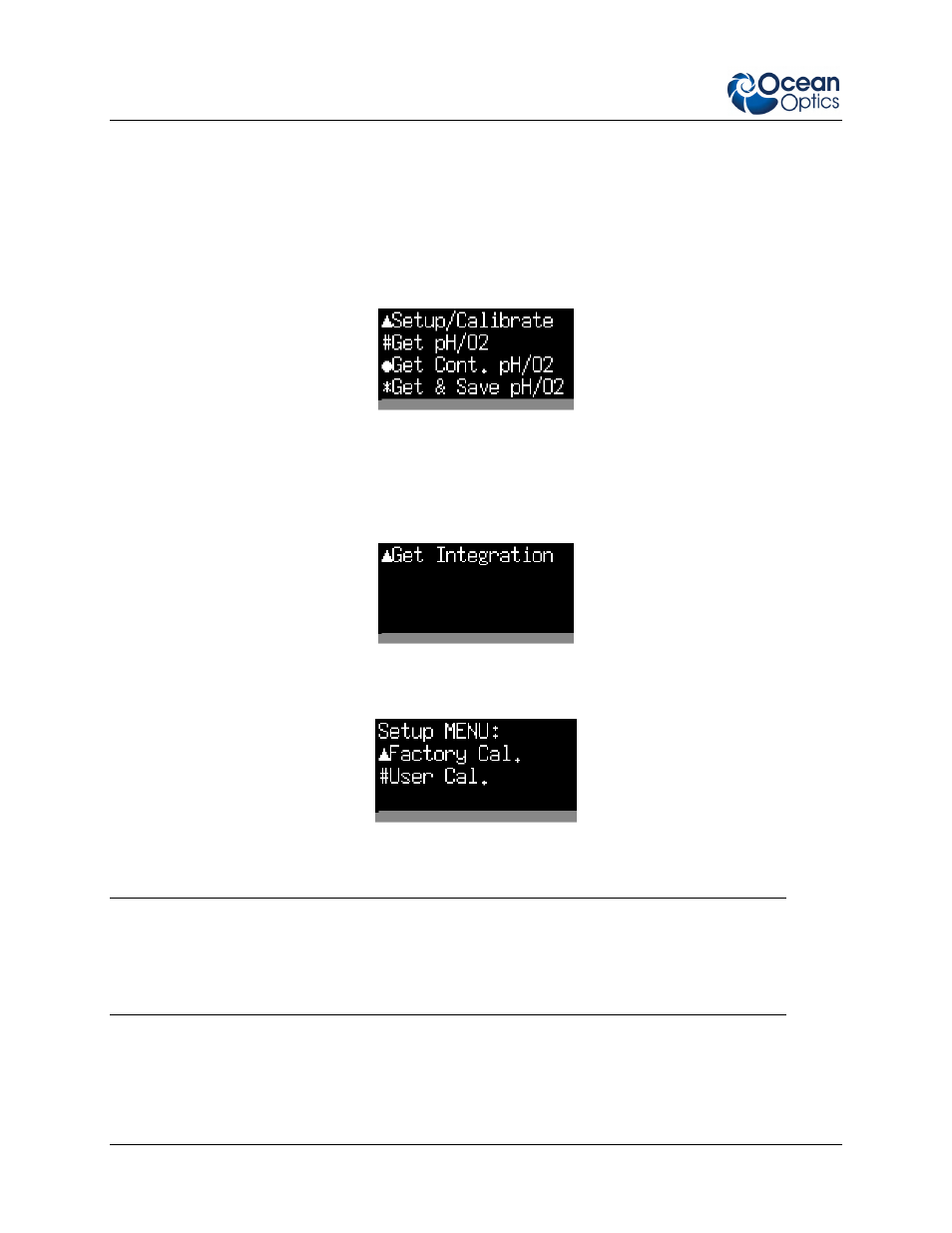

Performing a User Calibration with Jaz
► Procedure
1. Select the Setup/Calibrate option from the Jaz screen
2. Get the integration time. To do this, expose the sensor to pH 1 buffer in the manner described
previously in the SpectraSuite operating instructions, based on your sensor form factor. Select the Get
Integration option on the Jaz. The program adjusts the integration time to prevent saturation.
Adjustment of your light source may be required.
3. Select the User Cal. Option from the Jaz screen
4. Enter the Acquisition wavelength using the Jaz keys. Then click Accept.
Note
For pH sensors that perform in the biological range (pH 5 – 9), the Acquisition Wavelength is
620nm and the Baseline Wavelength is referred to in the above specification tables for the
various form factors.
