1: Products
PHSENSOR-TRANS-REFLECT-201111 9
For field measurements, an SD card with the pH software is required
for the Ocean Optics handheld Jaz spectrometer.

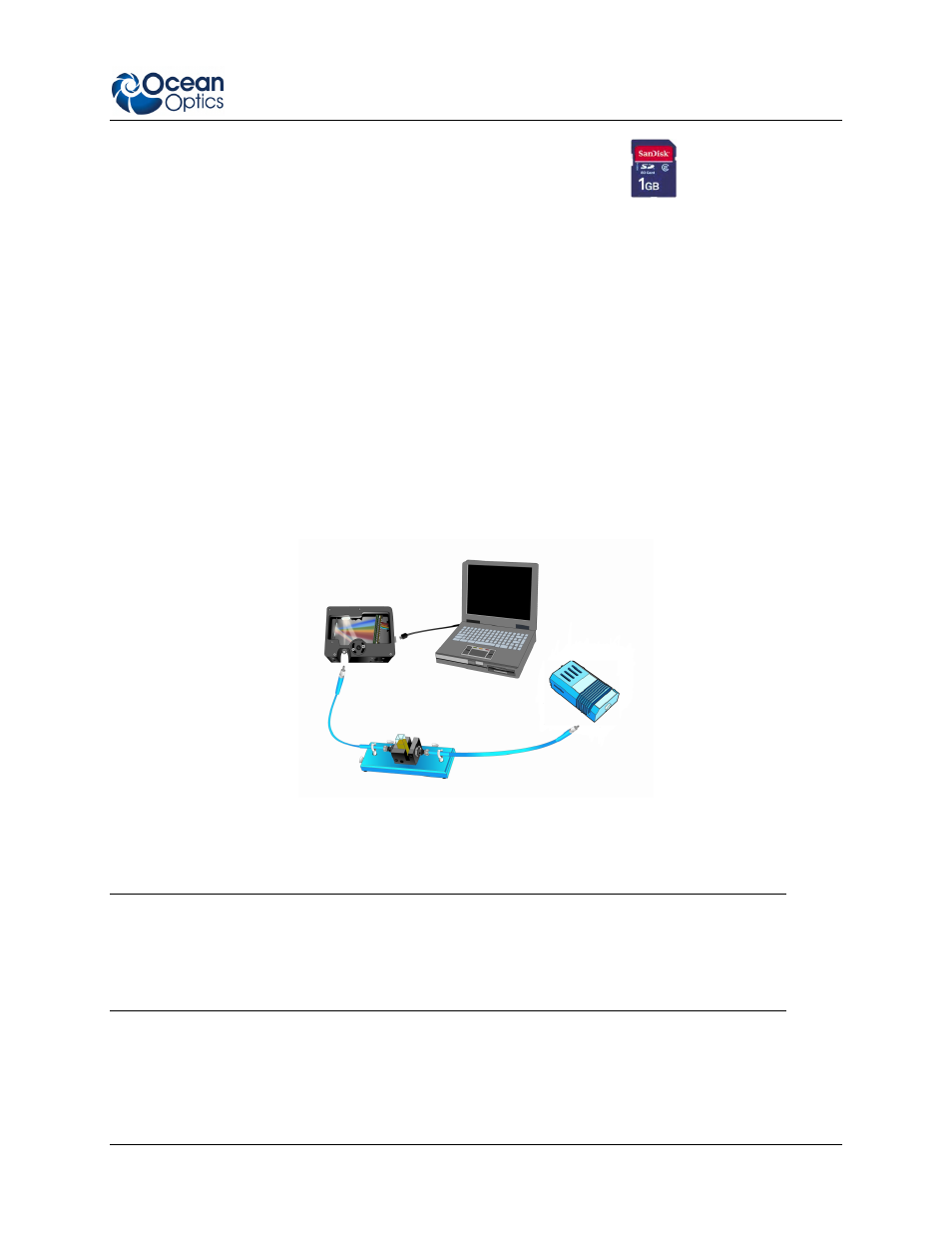

Hardware Setup and Installation
► Procedure
To install your pH Sensor components,
1. Install SpectraSuite on your computer.
2. Connect the spectrometer to your computer using the supplied USB cable.
3. Install the light source as specified in its instructions.
4. Attach the fibers between the spectrometer, cuvette holder, and light source.
5. Turn on the light source and allow it to warm up for the period specified in the light source
instructions.
Caution
Make sure that the cuvette says fastened in the cuvette holder with the tightening screw and
that it does not move until all measurements have been completed. Any movement will
change the optical signal, disrupting the quality of the measurement.
