Factory Direct Hardware Toto ABA990X#01FCP User Manual
Page 32
32
➃

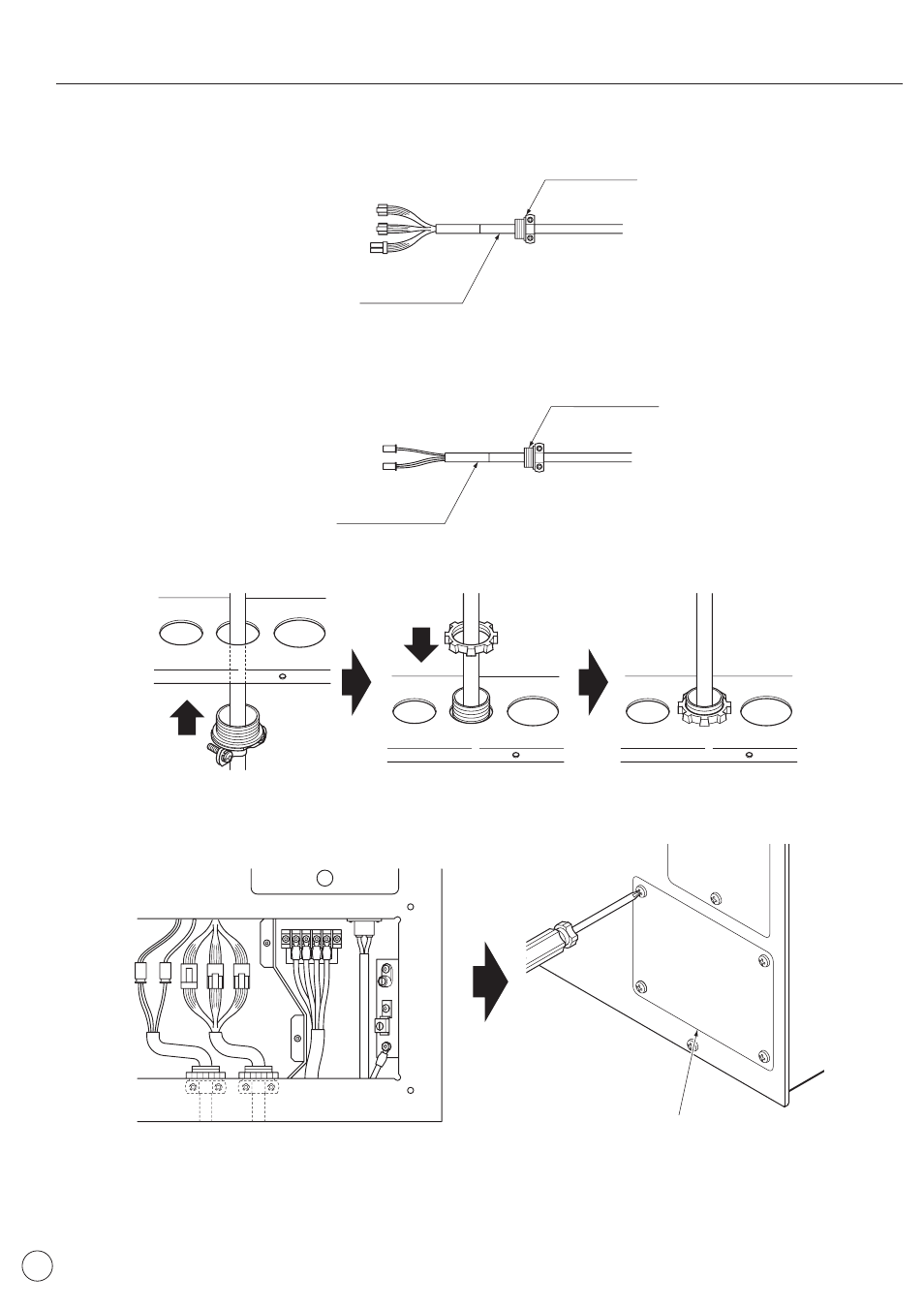

Set up the clamp connector (3/4) that comes with the "Control Unit" of the power supply relay cable.
Clamp
connector (3/4)
Power supply relay cable
Set up the clamp connector (1/2) that comes with the "Control Unit" of the signal relay cable.
Clamp
connector (1/2)
Signal relay cable
Pull the cables ➄ and ➃ through their respective holes in the bottom and fix the clamp connectors in place.
➅
Attach the cover after connecting each of the connectors and you are finished.
Cover
