31

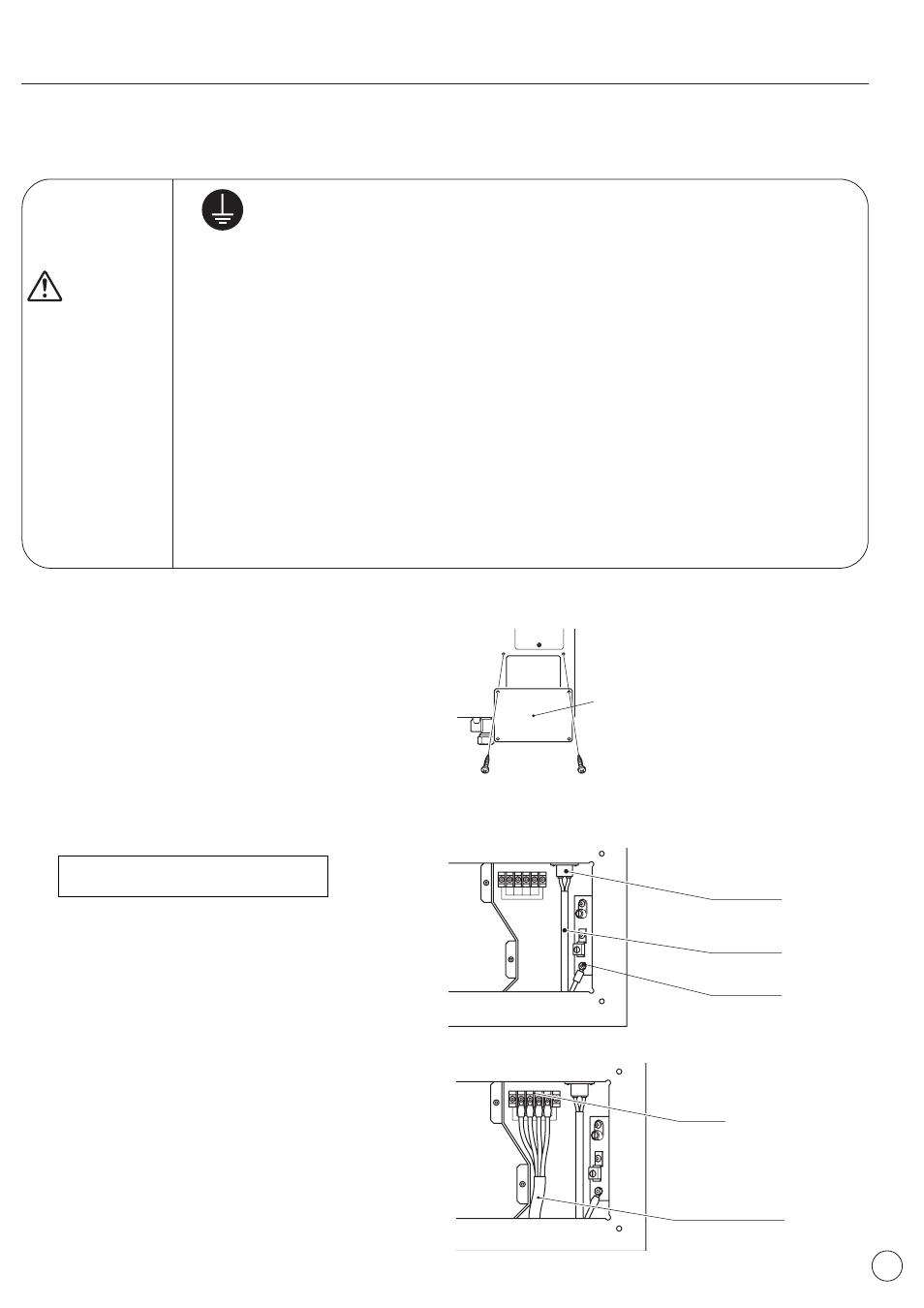

(8) Electrical work
● Power supply check.
Warning
Connect Ground
The power supply for this function module is 120 V (60 Hz) and the power consumption is 710 W.
● Connecting the cable and the bathtub equipment
➀ Remove the cover on the connector
Connector cover
➁ Using a conduit joint (arranged on site), pull the power supply cord (arranged on site) through the hole in the bottom
and push it into the power supply terminal strip. During this operation, please be careful of the size of the wire and
the length of insulation that is stripped away.
Pull the grounding wire (arranged on site) through
the same hole and fix it to the ground with a screw.
❈ Proper size: AWG12 or 14
Stripped length: 0.55 in (14 mm)
➂ Using a conduit joint (arranged on site), pull the air-
blower cord (arranged on site) through the hole in
the bottom and fix it to the power supply terminal
strip with a screw.
When doing this, please make sure that the color of
the wire and the color of the terminal strip label
match.
Power supply terminal strip
Power supply cord
Grounding screw
Terminal strip
Air blower cord
• All electrical connections must be in accordance with local codes, ordinances, and
the National Electrical Code (NEC).
If you are unfamiliar with methods of installing electrical wiring and appliances, you
should secure the services of a qualified licensed electrician.
Improperly performed work could result in breakdowns or current leaks that could
lead to electric shocks.
Install to permit access for servicing.
An equipment grounding terminal is provided in the field wiring compartment. To
reduce the risk of electric shock, this Terminal must be connected to the grounding
means provided In the electric supply panel with a conductor equivalent in size to
the circuit conductor supplying this equipment.
Install this unit in accordance with the National Electrical Code (NEC) NFPA 70 and
Canadian Electrical Code, Part 1.
Connect only to a branch circuit protected by an overcurrent protective device rated
not more than 15A.
