26
(2) Function module installation
● The weight of the equipment will hang on the installation wall, so it should be reinforced if it isn't strong enough.
The supporting structure should be capable of supporting at least 40 lbs (18 kg).
● When installing the equipment, do not drop it or hit it against anything.
Doing so could break or damage the parts inside the equipment.
● Be sure to install it on a vertical wall.
● The plumbing that is connected to the equipment should be installed so that there will be no safety problems with
respect to earthquakes, other vibration or physical impact and caulking material should be used to seal the points
where the hot and cold water and the power lines pass through the walls.
6-4 Function module installation

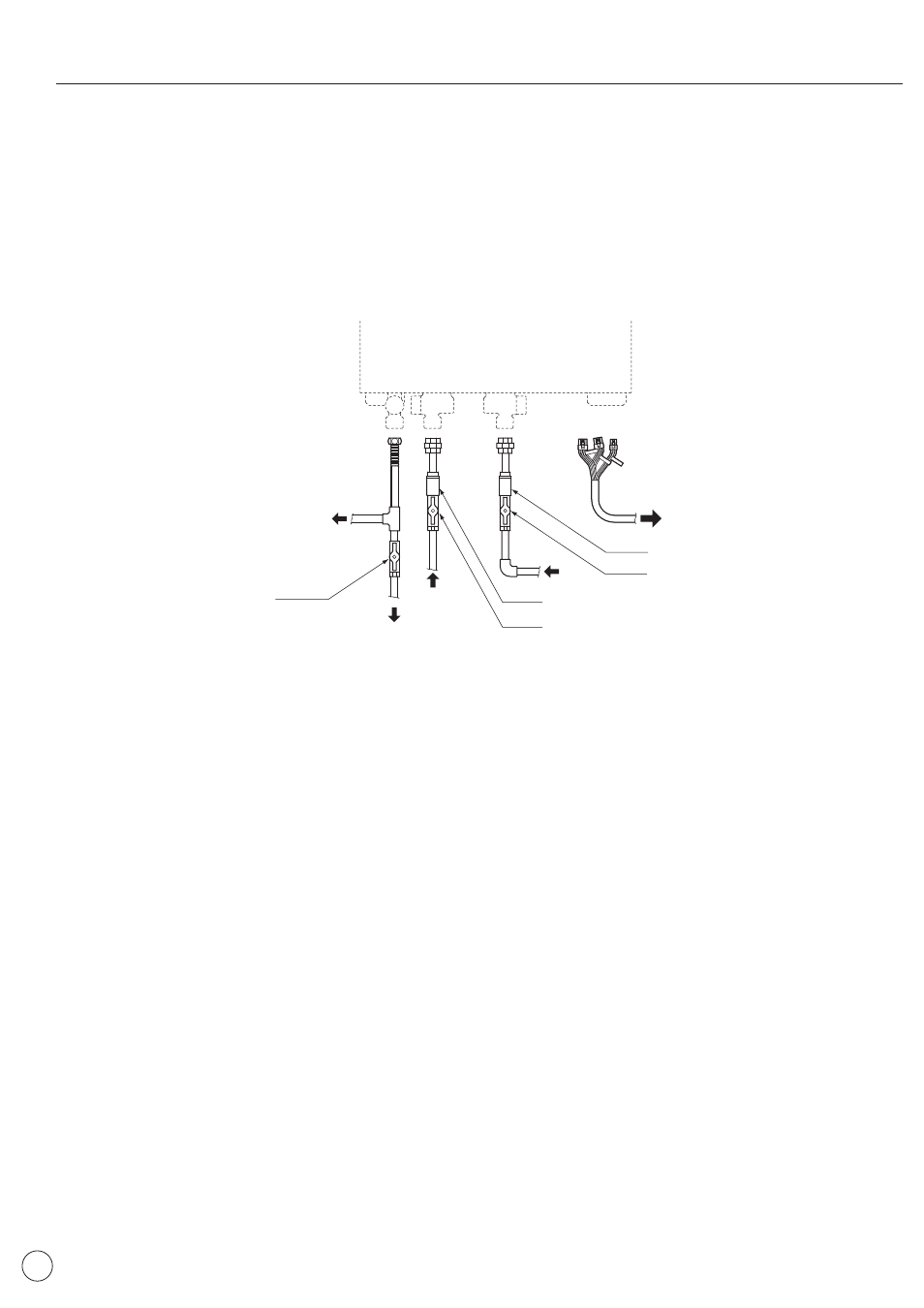

(1) Advance preparation
➀ Install shut-off valves and anti-backwash valves on the hot and cold water supply pipes.
➁ Run the pipes and cables for the connection between the bathtub and the function module.
❈ Install a water removal valve on the fill-tub pipes and make arrangements for a suitable water drainage process.
Bathtub Bathtub
Water
Hot
water
Drain
Water removal valve
Anti-backwash valve
Anti-backwash valve
Shut-off valve
Shut-off valve
Function Module
