S&B Filters Cold Air Intake Scoop AS-1002 - Manual (Page 4)

Scoop Plug Installation
P/N: AS-1002

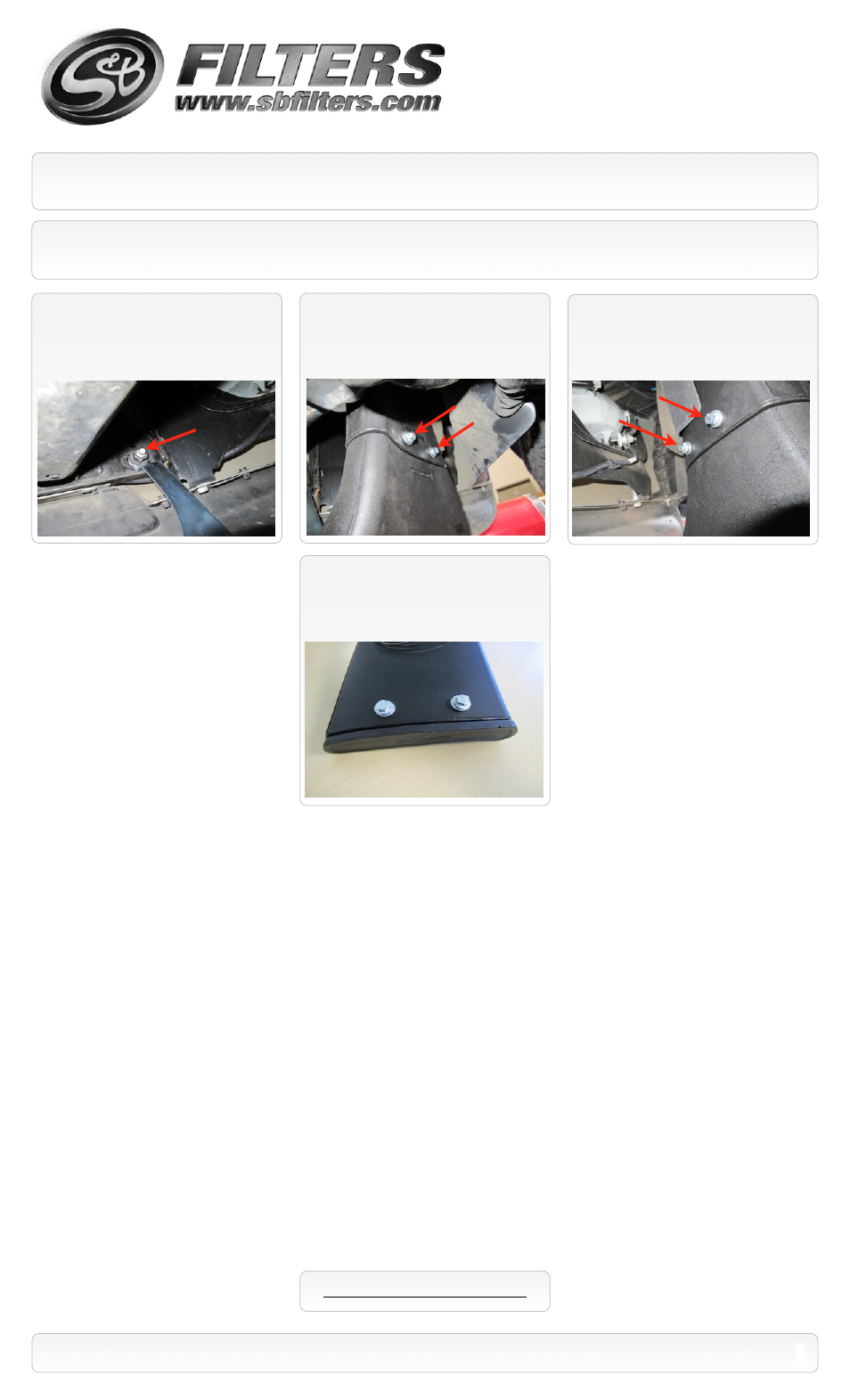

1.
From under the truck using 18mm
socket, remove the nut behind the bumper.
Slide the mounting bracket off the stud.
Then re-attach the nut and torque to factory
specs.
2.
On the backside of the assembly, remove
the two 1/4”-20x1.0” Screws (B) , 1/4” Split
Lock washers (K) , and 1/4” Flat Washers (A)
mounting Scoop base to the channel.
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 - www.sbfilters.com
SEE EXPLODED VIEW ON PAGE 5
4
3.
On the frontside of the assembly, remove
the two 1/4”-20x1.0” Screws (B) , 1/4” Split
Lock washers (K) , and 1/4” Flat Washers (A) .
When to use the plug.
We recommend installing the plug during the winter months if you in an area that receives snow or excessive rain.
4.
Install the Plug (L) into the Scoop
Channel using the two 1/4”-20x3/4” Screws
(M) , 1/4” Split Lock washers (K) , and 1/4” Flat
Washers (A) .
