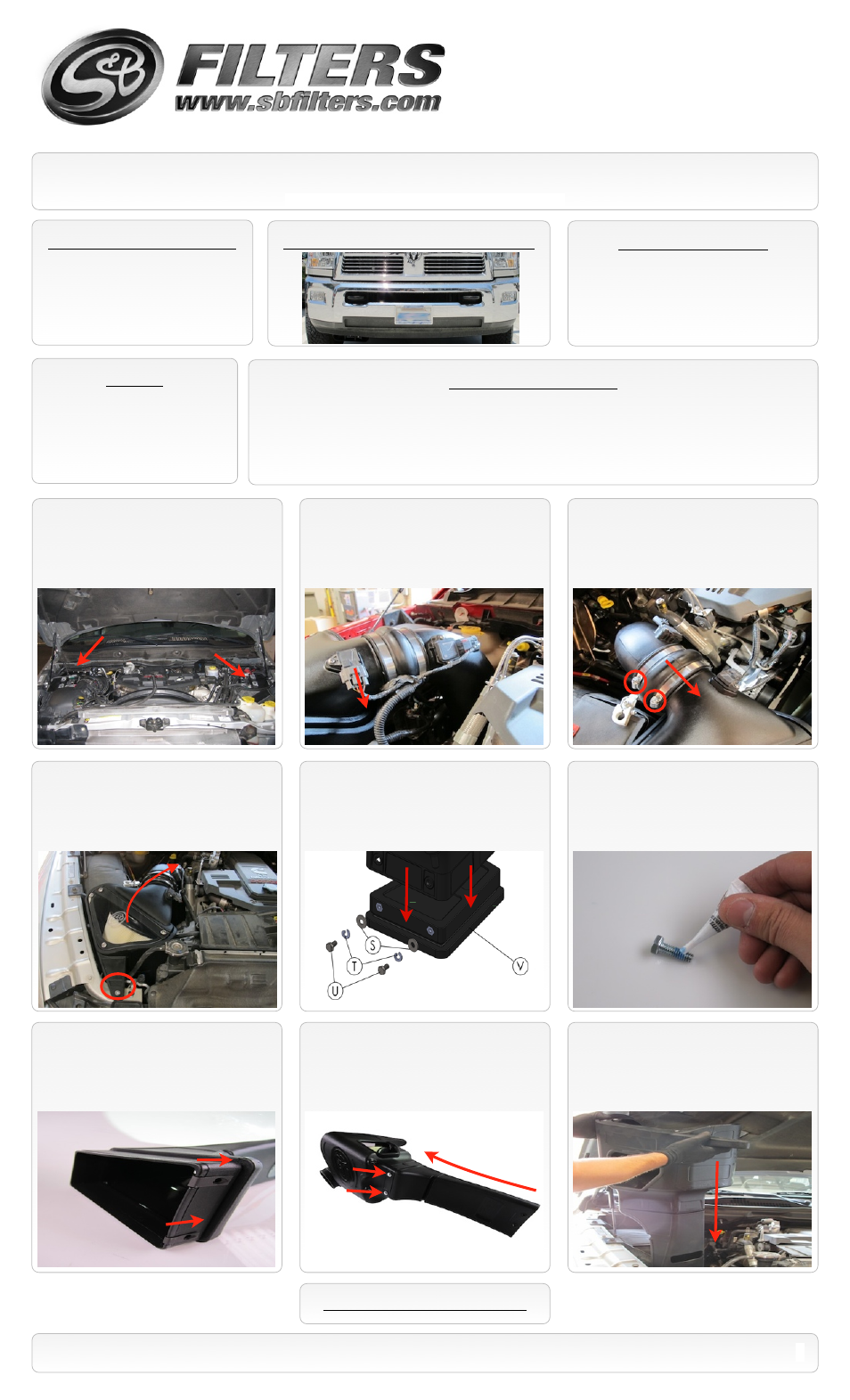

1. With the ignition switched off and the
parking brake set, disconnect the negative
battery cables on both batteries.
INSTALLATION INSTRUCTIONS
VEHICLE APPLICATION
Year: 2010-12
Make: DODGE
Model: RAM 2500/ 3500
Engine: 6.7L DIESEL
(Factory bumper only)
TOOLS REQUIRED
• 8mm Socket
• 18mm Wrench or Deep Socket
• 7/16” & 1/2” Wrench & Socket
• 5/16” Nut Driver or Flat Blade Screwdriver
STANDARD FACTORY BUMPER ONLY
NOTES
Kit may not fit with the following:
• Aftermarket Bumper
• Body Lift or Lowering Kit
• Front Hitch
• Oversized Wheels and Tires
BEFORE YOU START
• Please read the entire product guide before proceeding.
• Ensure all components listed on page 4 are present.
• If you are missing any of the components, call our customer support at (909) 947-0015.
• Do not attempt to work on your vehicle while engine is hot.
• Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 - www.sbfilters.com
6.
Apply a small amount of the supplied Blue
Loctite to all (6) 1/4”-20 Hex Bolts (B) .
P/N: AS-1002
SEE EXPLODED VIEW ON PAGE 5
2
Important: Read warning page prior to proceeding.
2.
Disconnect the IAT sensor wiring
harnesses from the sensor.
3.
Loosen both the #72 Hose Clamps on
the Hump adapter, then slide the hump
adapter over the Filter adapter tube.
5.
If installed, remove the S&B Box plug
from the lower portion of the air box using
7/16” socket. Retain plug and all hardware if
you expect on driving through heavy rain or
snow.
7.
Slide the Speed Clip Nuts (C) over the
flange of the Scoop Channel (D) . Make sure
the nuts clip into place.
4.
Remover the M8x1.25x40mm Allen Head
screw from the air box and remove the
complete air box assembly from the truck.
8.
Secure the Channel assembly to the air
box using the supplied 1/4”-20 Screws (B) ,
1/4” Split Lock washers (K) , and 1/4” Flat
Washers (A) .
9.
Slide the air box/ channel assembly down
from the engine compartment and set the air
box back into the two factory grommets on
the side of the battery tray.
