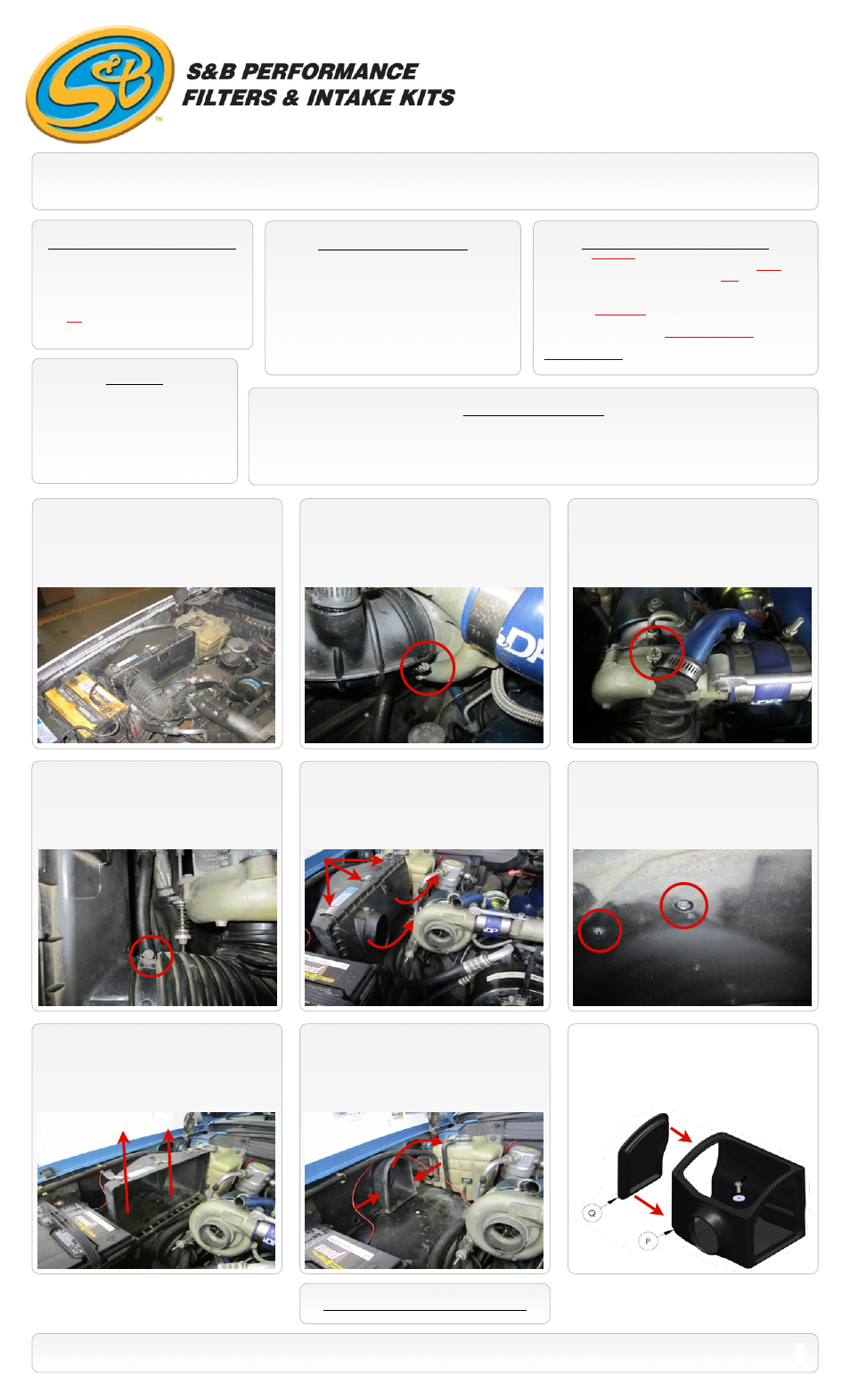

S&B Filters Cold Air Intake Kit - Cotton Filter 75-5045 - Manual

1. Turn off the truck and set the parking
break. Do NOT disconnect the battery
terminals.
INSTALLATION INSTRUCTIONS
VEHICLE APPLICATION
Year: 1992-00
Make: Chevy / GMC
Model: C/K 1500-3500 w/o MAF
Engine: 6.5L Diesel
*Will not fit 97-98 vehicles equipped with
MAF sensor
TOOLS REQUIRED
• 9/16” Wrench or Socket
• Phillips head Screwdriver
• 5/16” Nut Driver or Flat Blade Screwdriver
• 7/32” Allen Wrench
S&B FILTER MAINTENANCE
Cleanable (KF-1047) . If the enclosed filter is Red, it came
pre-oiled from the factory. When serviced, apply (104g) of
S&B oil to the main body of the filter and (4g) to the Power
Stack (Top).
Disposable (KF-1047D) . If the enclosed filter is White, it is a
disposable high flow filter and should be discarded once it
reaches capacity. This filter
(does not require oil) . For more
info on extending the life of S&Bʼs disposable filter, visit
www.sbfilters.com .
NOTES
Kit may not fit with the following
Aftermarket Parts Installed:
• Body Lift
• Custom Hood
• Intercooler or Turbo Upgrades
• Larger Battery Group #
BEFORE YOU START
• Please read the entire product guide before proceeding.
• Ensure all components listed on page 4 are present.
• If you are missing any of the components, call our customer support at (909) 947-0015.
• Do not attempt to work on your vehicle while engine is hot.
• Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 - www.sbfilters.com
4.
Loosen the clamp at the tube/ air box
connection. Then remove the tube assembly
from the truck.
7.
Remove the air box from the truck.
2.
Loosen the hose clamp at the turbo.
5.
Unclip the air box cover from the air box.
Remove the cover and filter from the truck.
8.
Remove the OE snorkel from the fender
by pressings in the sides and popping it out
towards the motor.
3.
Loosen the hose clamp on the crankcase
vent tube (CVT).
6.
From under the wheel well, remove the 2
bolts mounting the air box.
P/N: 75-5045 / 75-5045D
SEE EXPLODED VIEW ON PAGE 4
1
9.
For those concerned about engine heat,
insert the Air Box End Cap (Q) into the
end of the Air Box (P) . For those seeking
additional air flow, set the Air Box End
Cap aside. (See page 3 for more info)
