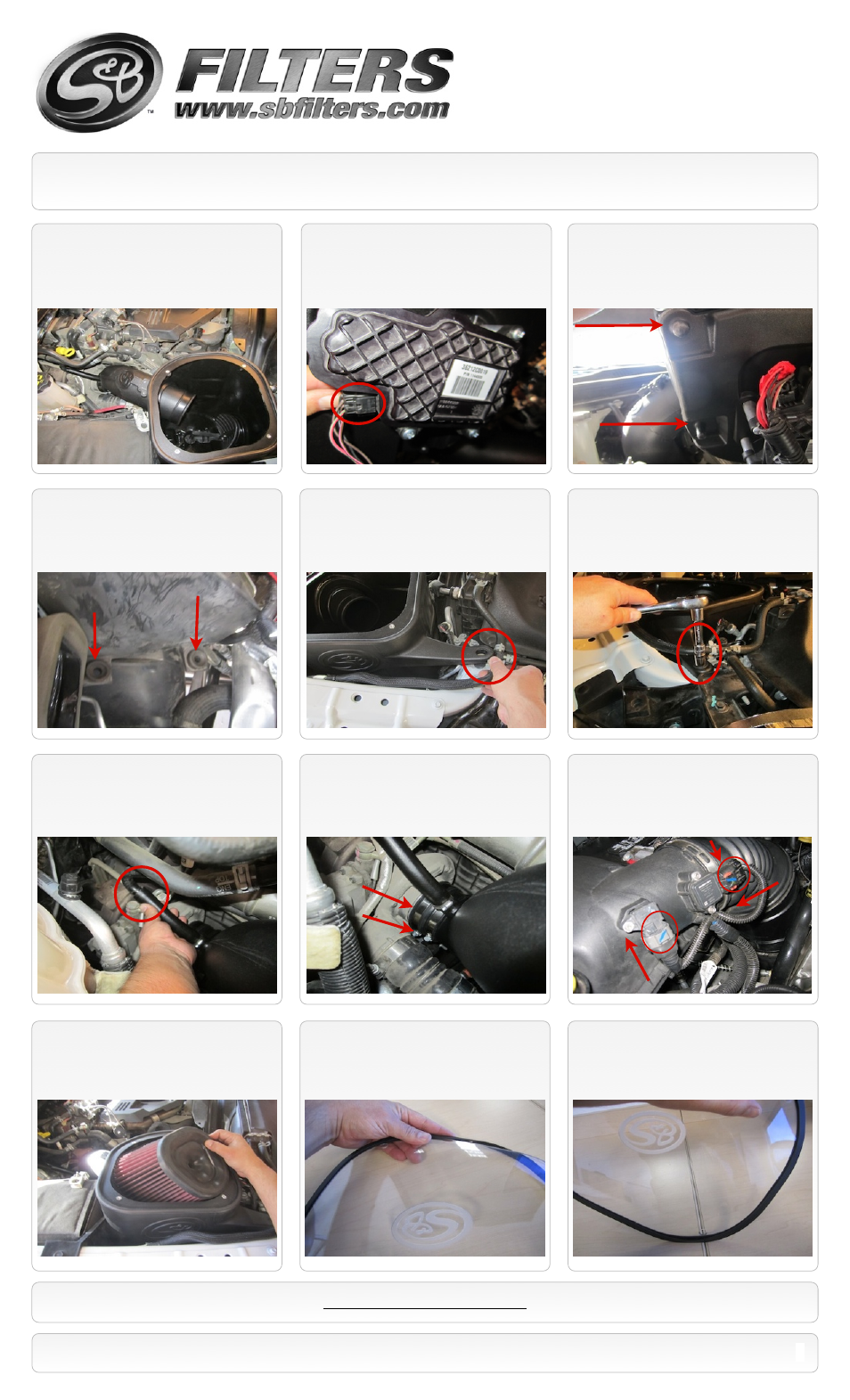

Installation Instructions (continued)
39.
Connect hose
(T)
and tighten hose
clamp
(Y)
.
P/N: 75-5068 / 75-5068D
40.
Connect coupler
(Z)
to turbo and tighten
hose clamp
(AA)
. Please make sure the
coupler is push all the way onto turbo before
tightening completely.
38.
Push down on air box and tighten the
provided retaining bolt
(H)
.
41.
Reconnect the MAF and IAT sensor.
42.
Install the filter
(E)
, please make sure to
install with flat side up and feed the filter onto
tube and push down. Once installed tighten
hose clamp.
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 -
SEE EXPLODED VIEW ON PAGE 7
5
35.
Before installing the air box and tube
assembly attach the swing gate harness
connector to the swing gate motor
(L)
that is
located underneath the S&B air box.
37.
After dropping in the box move hose
forward to let the box drop down completely.
Once box is dropped flush reconnect hose
clip to the vehicle.
36.(a)
When fitting the S&B intake box into
the vehicle please make sure that the stand-off
post on the bottom of the air box fit properly into
the holes on the air box tray in the vehicle.
43.
Install the provided edge trim
(C)
around
lid
(D)
44.
Once edge trim
is installed roll the sides
of the lid on a flat surface to ensure a tight
seal.
36.(b)
Reach under the air box to feel if the
posts pushed through the holes (grommets).
Be careful not to push to hard or the tabs will
break off the battery tray.
34.
Place the S&B air box with air tube
assembly into vehicle.
Read step 35 before continuing with #34
