S&B Filters Cold Air Intake Kit - Cotton Filter 75-5068 User Manual
Page 3

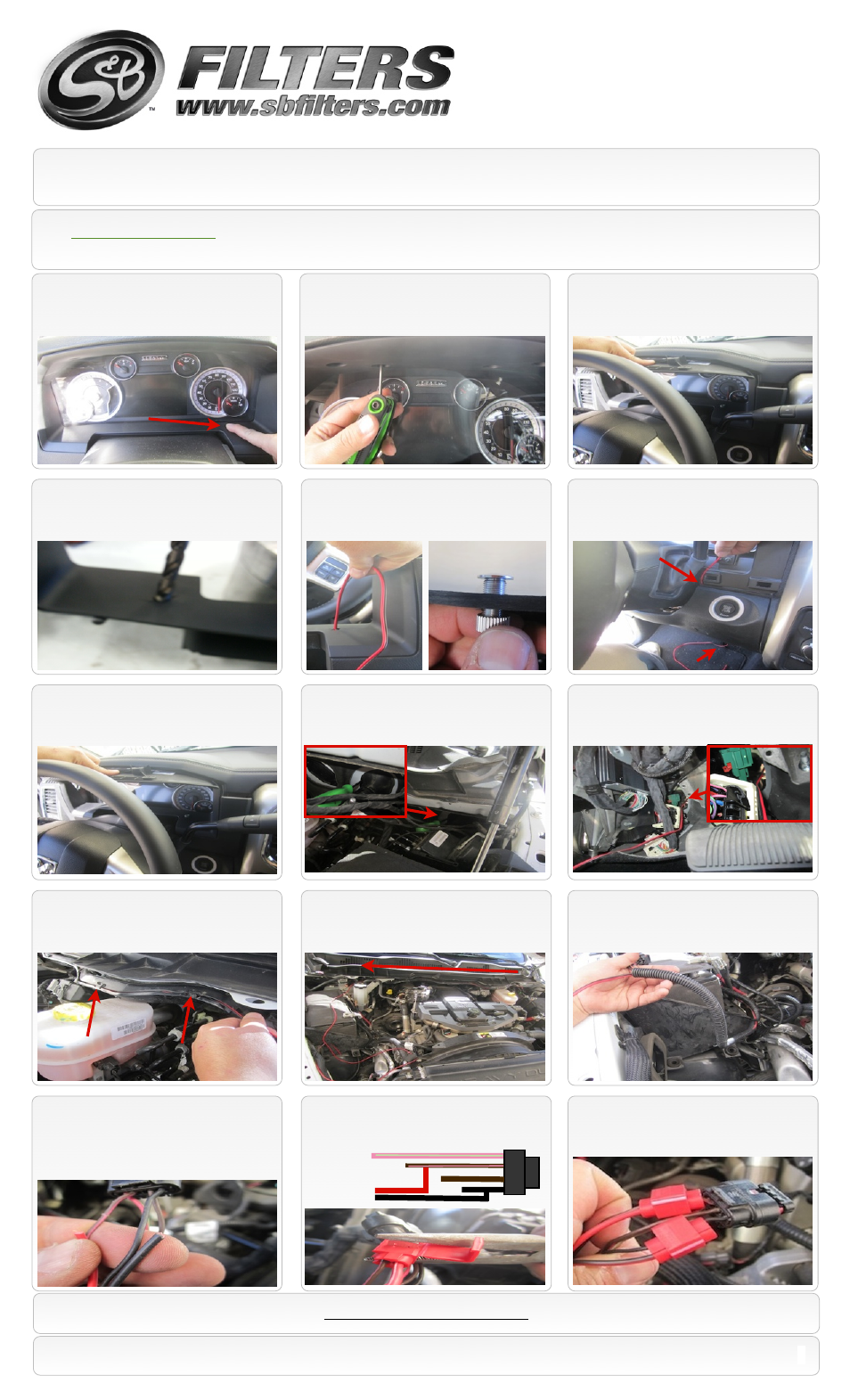

Installation Instructions (continued)
(Optional Step)
P/N: 75-5068 / 75-5068D
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 -
SEE EXPLODED VIEW ON PAGE 7
3
B. Remove panel by first removing the 4 Torx
screws under top part of instrument panel.
C. Once Torx are removed pull down and out
to remove panel. (lowering of shifter and
steering wheel may be required).
A. Choose a location to drill a hole to install
the monitoring light.
E.
Install monitoring light
(AD)
into the drilled out
hole, screw the locking nut onto the back of the
panel by running the wire through the nut.
F. Before re-installing the panel run the
indicator light wire down through the steering
column to the bottom of the dash.
D.
Carefully drill a hole using a 5/16” drill bit, use
lower rpm speeds and start hole with smaller bits
like a 1/8” or 3/16” to avoid damage to panel.
H.
From under the hood on the driver side firewall,
carefully insert a screw driver on the side of the
rubber boot to help run the indicator wire through
.
I.
From under the dash run the wire through fire wall
to the outside were the screw driver enters the
firewall, use zip ties to fasten down the indicator wire
as needed.
G. Reinstall panel, again steering column and
gear shifter may need to be lowered to install
panel.
K. Below is a photo of the wire being ran
through the wire/cable guard. Remember to
lock tabs when finished running wire through.
L.
Once done running the wire through the guard,
run wire down along the side of the battery. It is
recommended to run the wire through the swing
gate motor harness.
J. Pull wire through fire wall and
run wire
through the vehicles wire/cable guard. A
screwdriver may be needed to unlock tabs.
N
. Use the provided tap connectors
(AE)
to tap both
wires together using pliers. Tap the
RED
wire into the
Brown
w/
Pink
wire and tap the Black into the Black wire
on the harness.
M.
Photo of finished harness with the correct wire
taps. It is recommended to use zip ties on lose wires
and to also use electrical tape over the tap
connectors for added protection.
M. This is a photo of how the indicator wire
will be connected into the swing gate motor
harness wires. The
Red
will connect to the
Brown
w/
Pink
and the Black will connect to
the Black wire. (See illustration on next step)
22.
Active Monitoring Light Install
Light may be installed if desired, we recommend on the trim of the instrumentation panel inside the cab (
Warning:
drilling of the instrument panel will be required)
INDICATOR
LIGHT WIRE
Swing Gate Motor Harness
