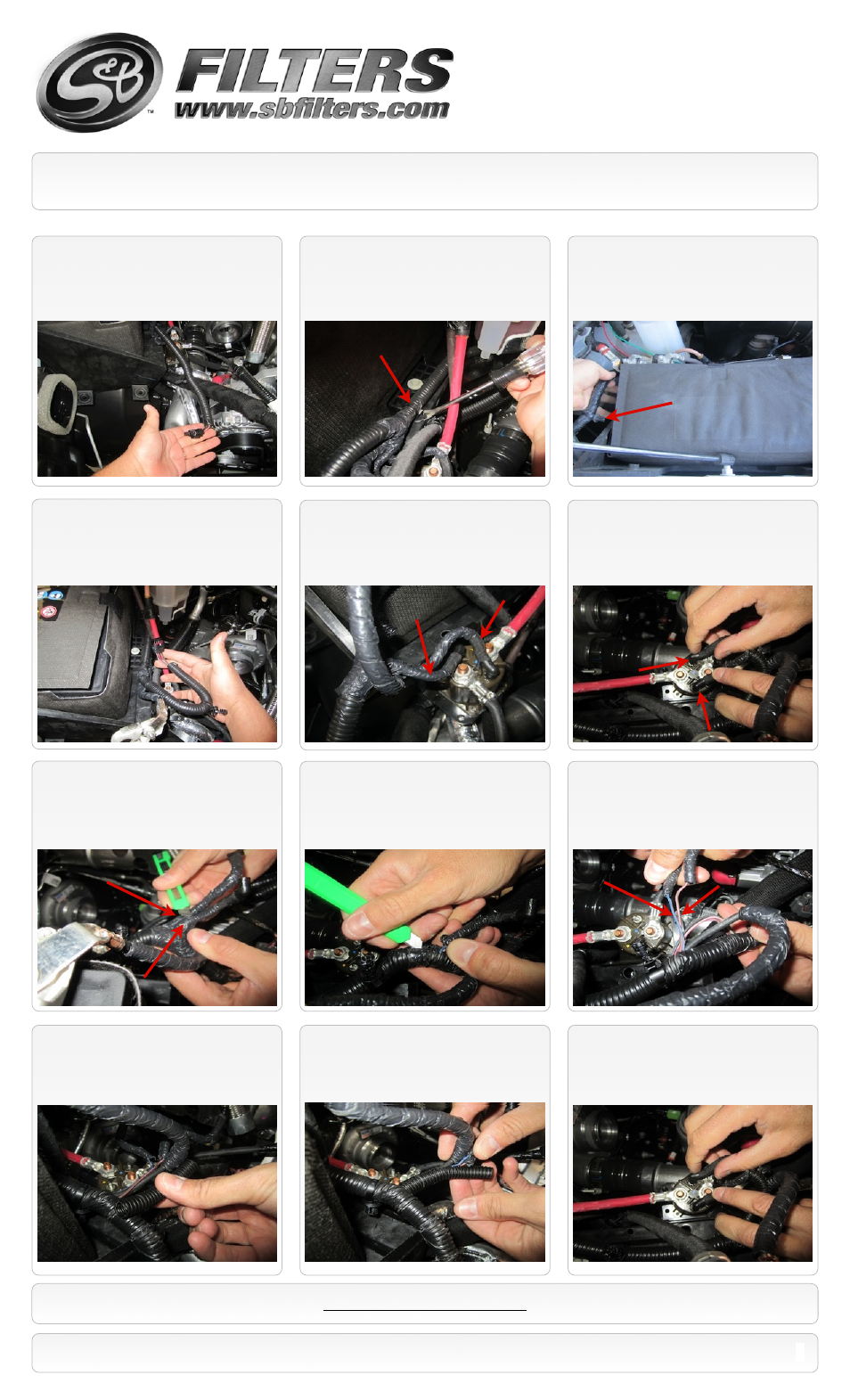

Installation Instructions (continued)
17.
Once the insulation is cut at the base of
each line carefully cut into the main harness
and again be careful not to cut or damage the
wires inside.
P/N: 75-5068 / 75-5068D
18.
Once the insulation is cut pull a length
of about 3 inches for each line.
19.
Use the provided insulated sleeve (AC)
to insulate both wires together. The insulated
sleeve gives the wires added protection.
20.
Install the insulated sleeve (AC) over both
wires, this extra length will let the harness extend
and reach the S&B air box. Re-apply electrical tape
to any exposed wires and sleeve to avoid corrosion.
21.
Once both lines are insulated with the
provided insulation sleeve reconnect each
wire to the correct terminal on the relay
component.
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 - www.sbfilters.com
SEE EXPLODED VIEW ON PAGE 7
15.
Disconnect the wires from the relay component by
pulling them off. Please take note on which wire was
connected to which terminal because these wires will be
reconnected after modification. Please mark each wire
or take a photo to help remember the wire connections.
16.
Cut into the base of the insulation on
each line being careful not the cut or damage
the wires inside.
14.
Pull the harness until it is stopped by
these wires hooked up to the relay
component.
13.
Once the push pins are pulled out the
harness can be pulled out further.
12.
Remove the push pins on the harness
that are located on the side and back of the
battery tray.
10.
Once the factory air box and intake tube
are removed the swing gate motor harness
must be modified for the harness to reach the
S&B air box.
2
11.
First remove the harness push pins that
hold the harness down to the battery tray
using a pry tool or flat head screw driver.
