6 of 13 ISSUED: 01-28-11 SHEET #:125-9176-1
Installation to Articulating Mounts....................................Continue Below Step 4
Installation to Wood Stud Wall................................................................PAGE 9
Installation to Solid Concrete or Cinder Block Wall.............................PAGE 10
Installation to Desktop Mounting Surface.............................................PAGE 11
3
Select Mounting Application

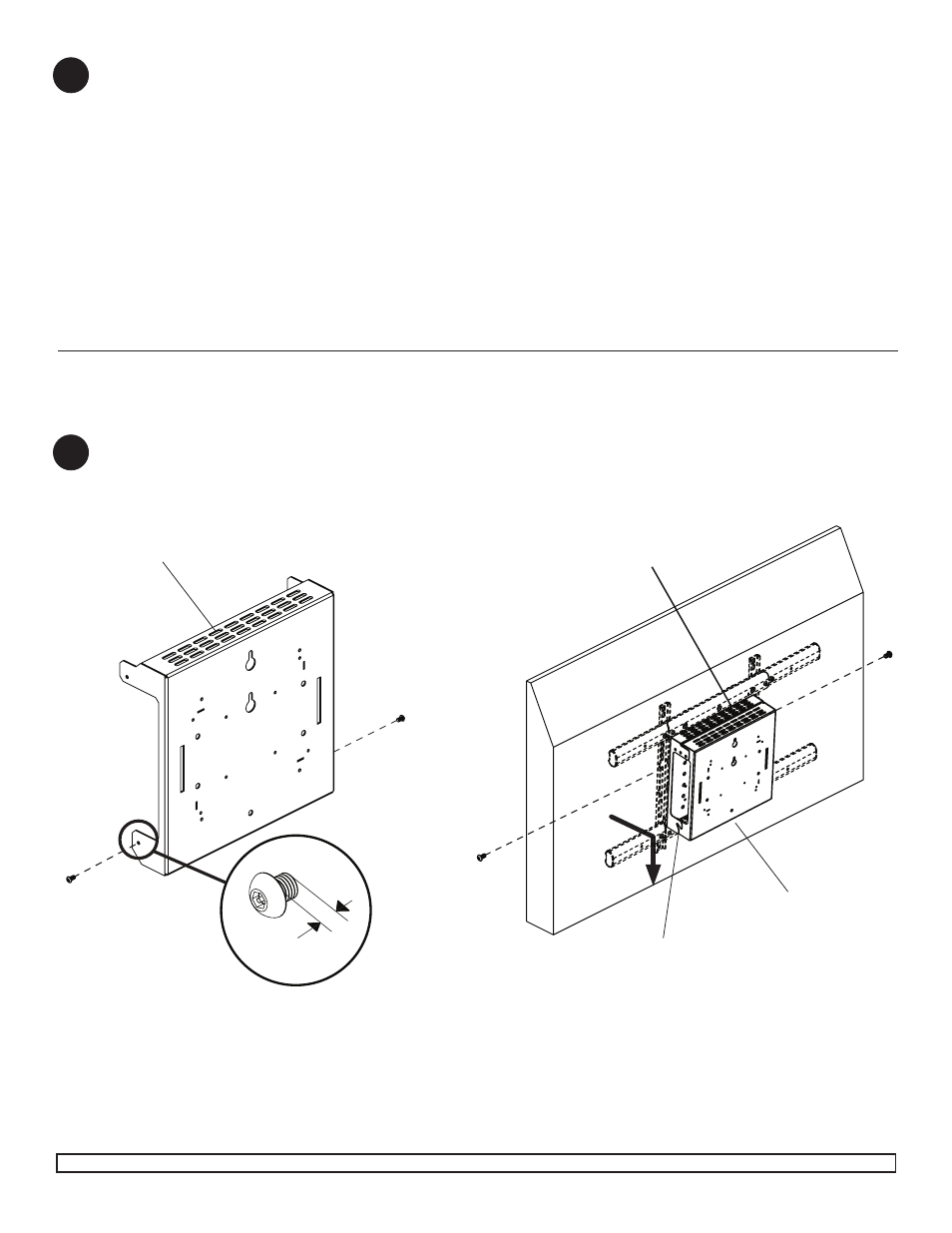

Fasten two M8 x 15 mm screws ( D) into wall plate
( B) leaving 1/8" of exposed thread using 4 mm
allen wrench ( I) as shown below.
4
Attaching Adapter Plate to Wall Plate
A
B
D
Hook adapter plate ( A) onto exposed M8 x 15 mm
screws, and secure using two M8 x 15 mm screws
( D) using 4 mm allen wrench ( I) as shown below.
Tighten all screws.
M8 X 15 MM SCREW
1/8"
D
B
