Peerless-AV GC-UNV - Installation - Manual (Page 4)

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
4 of 13 ISSUED: 01-28-11 SHEET #:125-9176-1

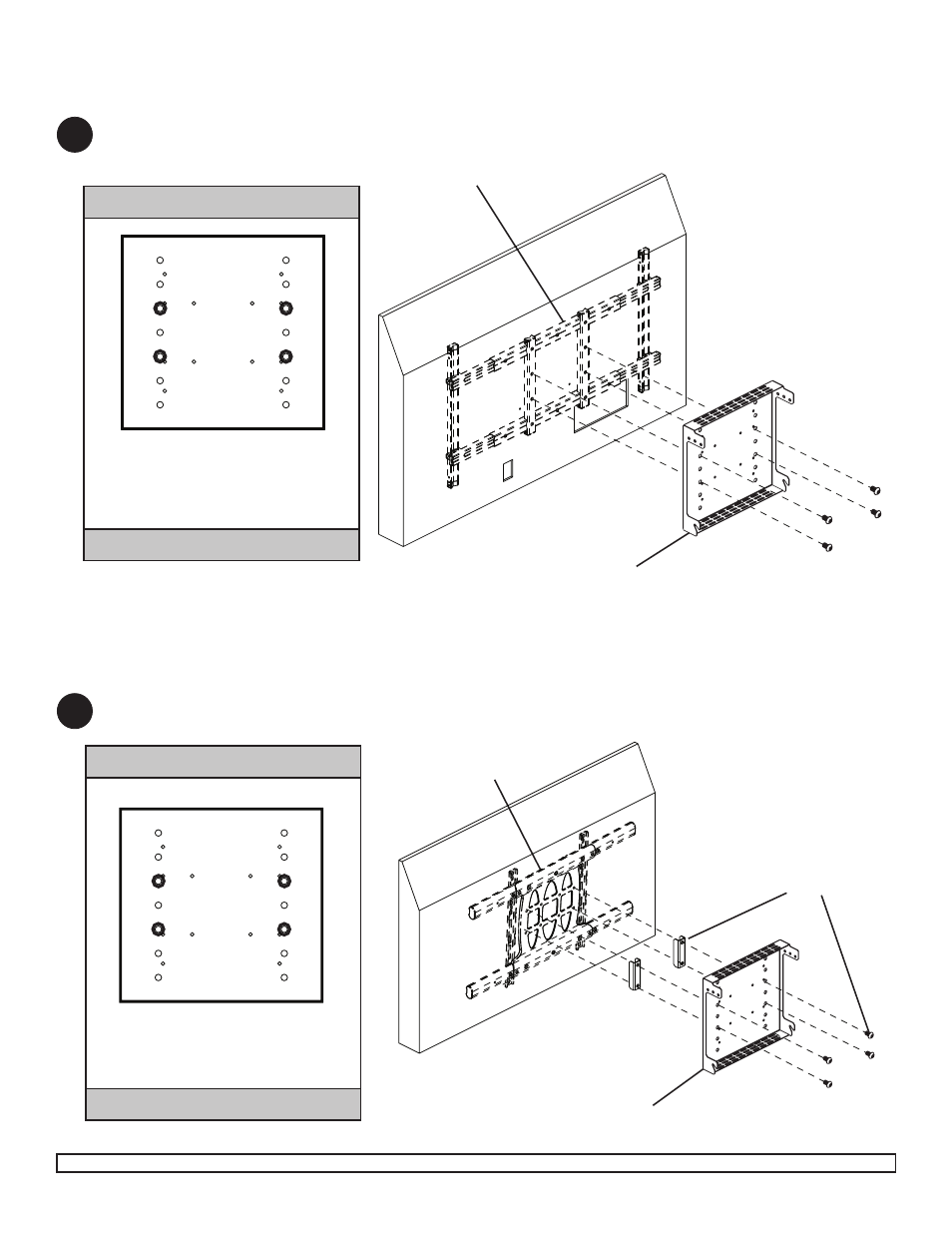

Secure adapter plate ( A) to universal adapter bracket with four M10 x 15 mm screws (supplied with universal
adapter bracket) as shown below.
1
1
MOUNTING PATTERN
M10 x 15 mm
(supplied with
universal adapter bracket)
MOUNTING PATTERN
Attaching Adapter Plate to SA745PU, SA750PU, SA760PU, SA770PU
Universal Adapter Bracket
Attaching adapter Plate to SA752PU, SA761PU, SA763PU, SA771PU
(ACC950 Required) Universal Adapter Bracket
Secure adapter plate ( A) to universal adapter bracket with four M10 x 40 mm screws (supplied with ACC950) as
shown in below.
A
A
UNIVERSAL ADAPTER BRACKET
UNIVERSAL ADAPTER BRACKET
ACC-950 SPACER AND
M10 X 40 MM SCREWS
(SUPPLIED WITH ACC950)
M10 x 40 mm
(supplied with ACC950)
M10 X 15 MM SCREW
(UNIVERSAL ADAPTER BRACKET)
