Installation and Assembly - Adapter Bracket for
VESA
®
400 x 300 Screens
Model:
PLP-V4X3
IMPORTANT! Read instruction sheet before you start installation and assembly. Before you start make sure all parts listed
are included with your product. Some parts may appear slightly different than illustrated.
© 2007, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
CC
AA
BB
Used with
specifi c
mounts only

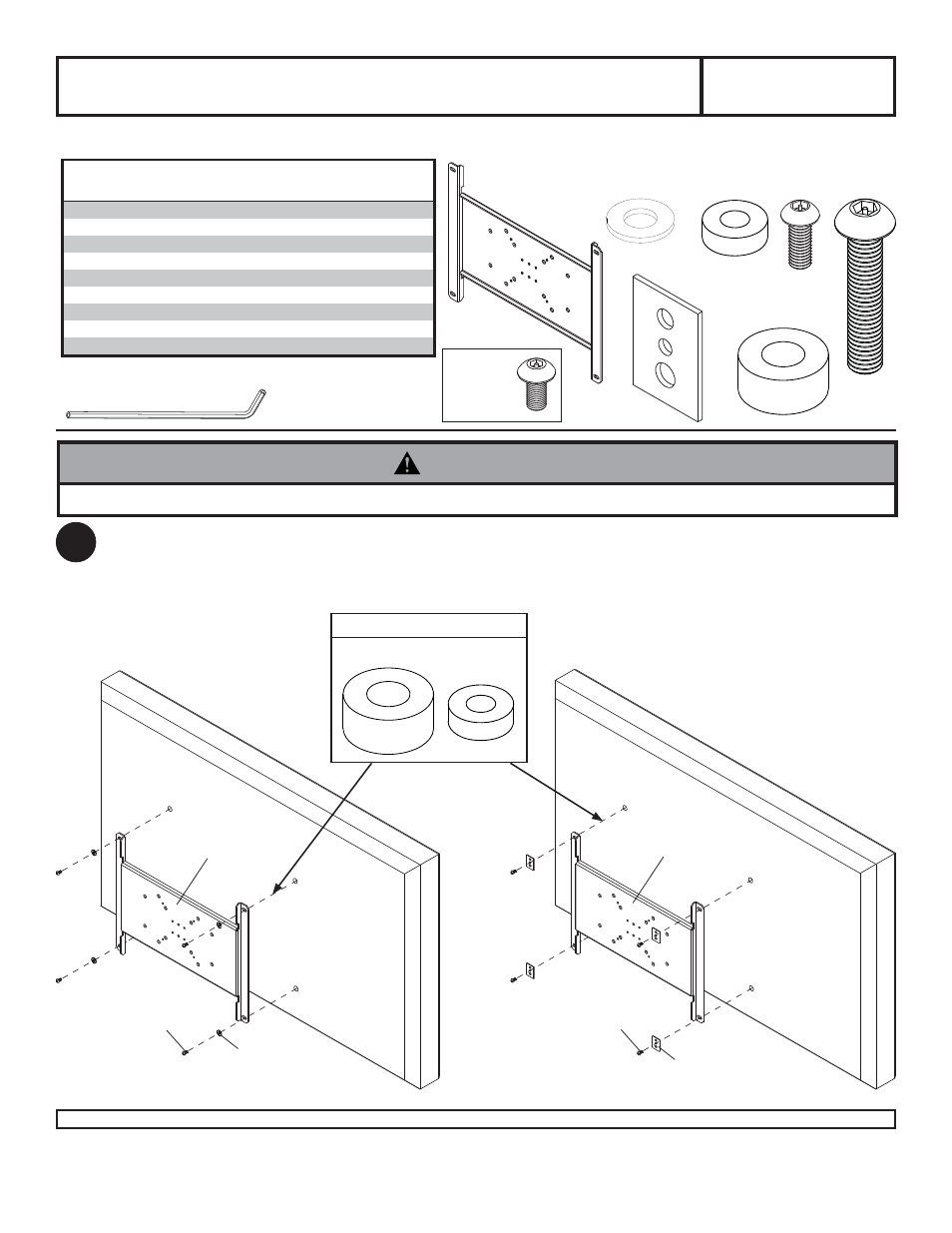

Parts List
Description Qty. Part
#
AA
adapter plate
1
201-1743
BB
M5 x 10 mm socket pin screw
4
520-1063
CC
M6 x 16 mm socket pin screw
4
520-1132
DD
4 mm allen wrench
1
560-9646
EE
M8 x 40 mm screw
4
520-1152
FF
multi-washer
4
580-1036
GG
.5 I.D. spacer
4
590-1121
HH
washer
4
540-9406
II
.34 I.D. spacer
4
540-1002
EE
FF
II
GG
HH
1
Attach adapter bracket (AA) to back of screen using four screws (EE) with washers (HH) as shown in fi gure 1, or
four screws (BB or CC) with washers (FF) as shown in fi gure 2. Tighten screws using 4 mm allen wrench (DD).
For screens with a bump out, recess or shallow inserts, spacers (GG and/or II) may be used between the adapter
bracket and your screen as shown in detail 1.
• Do not overtighten, or permanent damage my occur to the screen. Torque to 26-35 in • lb (30-40 kg • cm).
WARNING
AA
HH
AA
fi g. 2
fi g. 1
II
GG
DETAIL 1
EE
FF
BB,
CC
