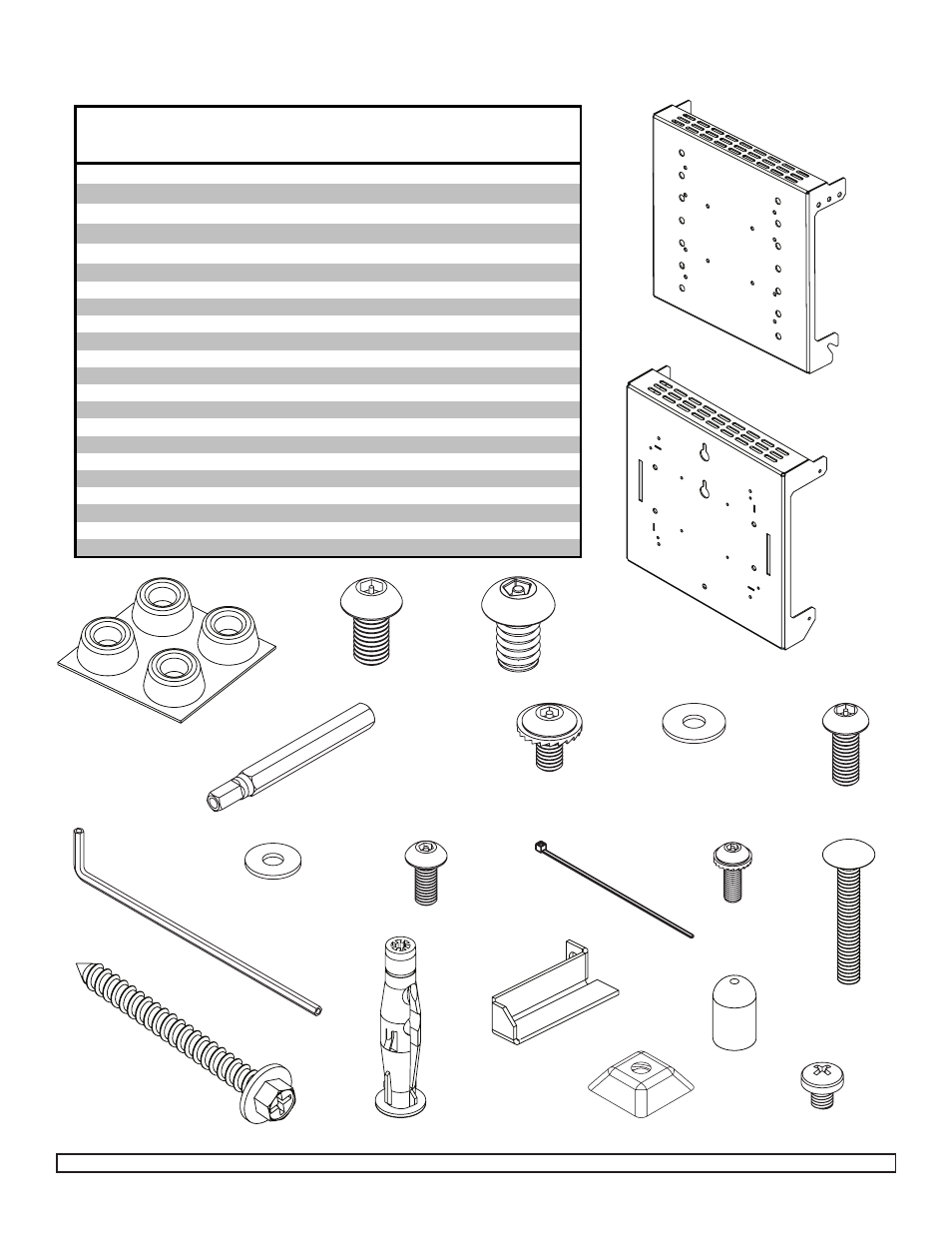

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
A
B
C D E
F G H
I
J
K L
M
P
N
O
Q
R
S
T
U
Description Qty. Part #
A adapter plate 1 125-1213
B wall plate 1 125-1214
C rubber feet (pack of four) 1 570-1036
D M8 x 15mm socket pin screw 4 520-1068
E M10 x 15 mm penta-pin screw 4 520-9263
F M10 penta-pin tool 1 520-9260
G M6 x 12 mm socket pin serrated washer head screw 4 510-1050
H #10 flat washer 4 540-9400
I 4 mm allen wrench 1 560-9646
J M6 x 16 mm socket pin screw 4 520-1132
K #8 flat washers 4 540-1001
L M5 x 12 mm socket pin screw 4 520-1064
M cable tie 4 560-9711
N M4 x 12 mm socket pin serrated washer head screw 4 510-1079
O #14 x 2.5" hex head wood screw 3 5S1-015-C03
P concrete anchor 3 590-0320
Q Wii™ lockdown bracket 3 125-1208
R 1/4-20 x 1.75" carriage bolt 2 520-1017
S 1/4-20 slope nut 3 530-0035
T plastic screw cap 2 590-1294
U M5 x 6 mm phillips screw 3 520-1023
V safety belt hardware (not shown) 1 170-8039-1
PARTS LIST
