Peerless-AV ACC560 - Installation - Manual

1 of 4 ISSUED: 02-06-07 SHEET #: 054-9125-2 07-30-07
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
Note: Read entire instruction sheet before beginning installation and assembly.
Installation and Assembly - Ceiling Plate
Model: ACC 560
Maximum load capacity:
50 lb (22.7 kg)
A B
C
D
• Installer must verify that the supporting surface will safely support the combined weight of mount and projector.
WARNING
E
F

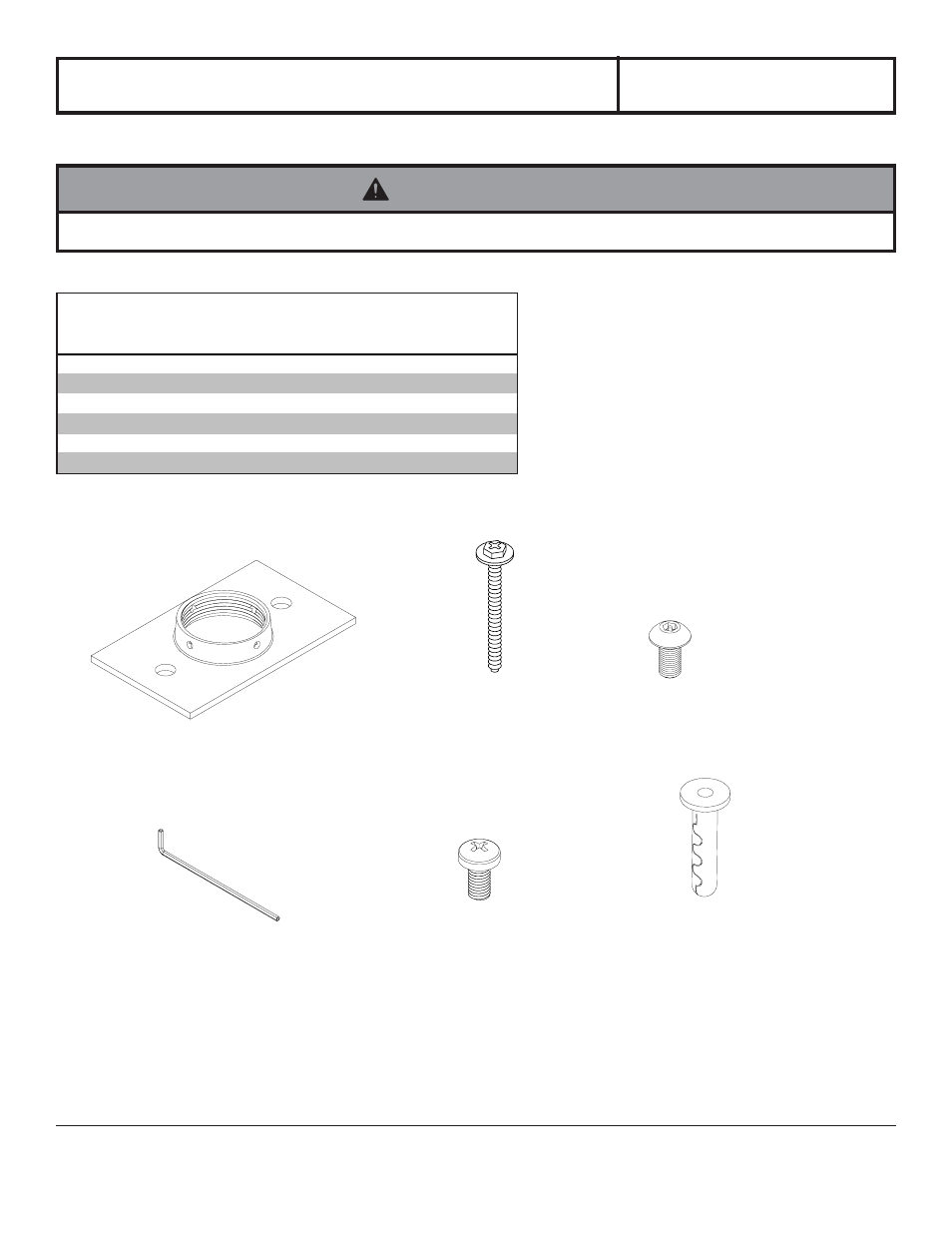

Description Qty. Part #
A ceiling plate 1 580-1042
B #14 x 2.5" (6 mm x 65 mm) wood screw 2 5S1-015-C03
C M5 x .8 x 10 mm socket pin screw 1 520-1164
D 4 mm allen wrench 1 560-9646
E M5 x .8 x 10 mm phillips screw 1 520-9250
F alligator® anchor 2 590-0097
Parts List
