12 of 13 ISSUED: 01-28-11 SHEET #:125-9176-1

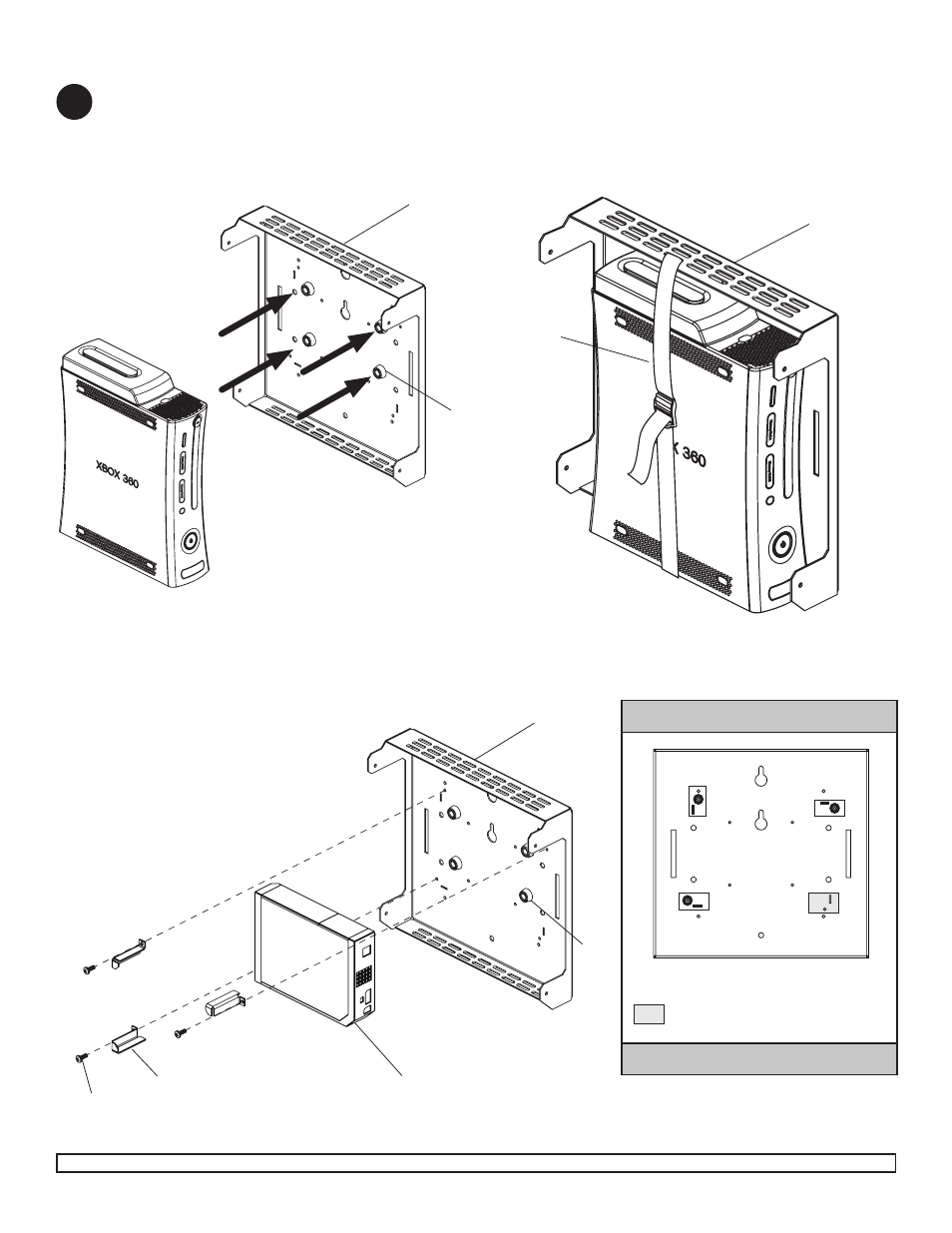

Secure four rubber feet ( C) to wall plate (B)
in approximate position as shown below.
5
GAME CONSOLE
(X-BOX360™ SHOWN BELOW)
Press game console against wall plate ( B) and tightly
secure safety belt hardware ( V).
GAME CONSOLE MAY APPEAR
DIFFERENT THAN ILLUSTRATED
B
B
C
PlayStation ® 3 and XBOX 360™ Installation
MOUNTING PATTERN
M5 x 6 mm phillips screws ( U)
Wii™ Installation
C
B
W ™ GAME CONSOLE
U
Q
Secure four rubber feet ( C) to wall plate (B)
in approximate position as shown below.
Secure Wii™ game console in place with three
lockdown brackets ( Q) using three
M5 x 6 mm phillips screws ( U).
V
USE TO FACE Wii™ RIGHT
ii
TM
TM
