ISSUED: 04-24-00 SHEET #: 142-9002-4 04-21-05

Visit the Peerless Web Site at www.peerlessindustries.com

For customer service call 1-800-729-0307 or 708-865-8870.

1 of 2

D

C

A

B

E

Some parts may appear slightly different than illustrated.

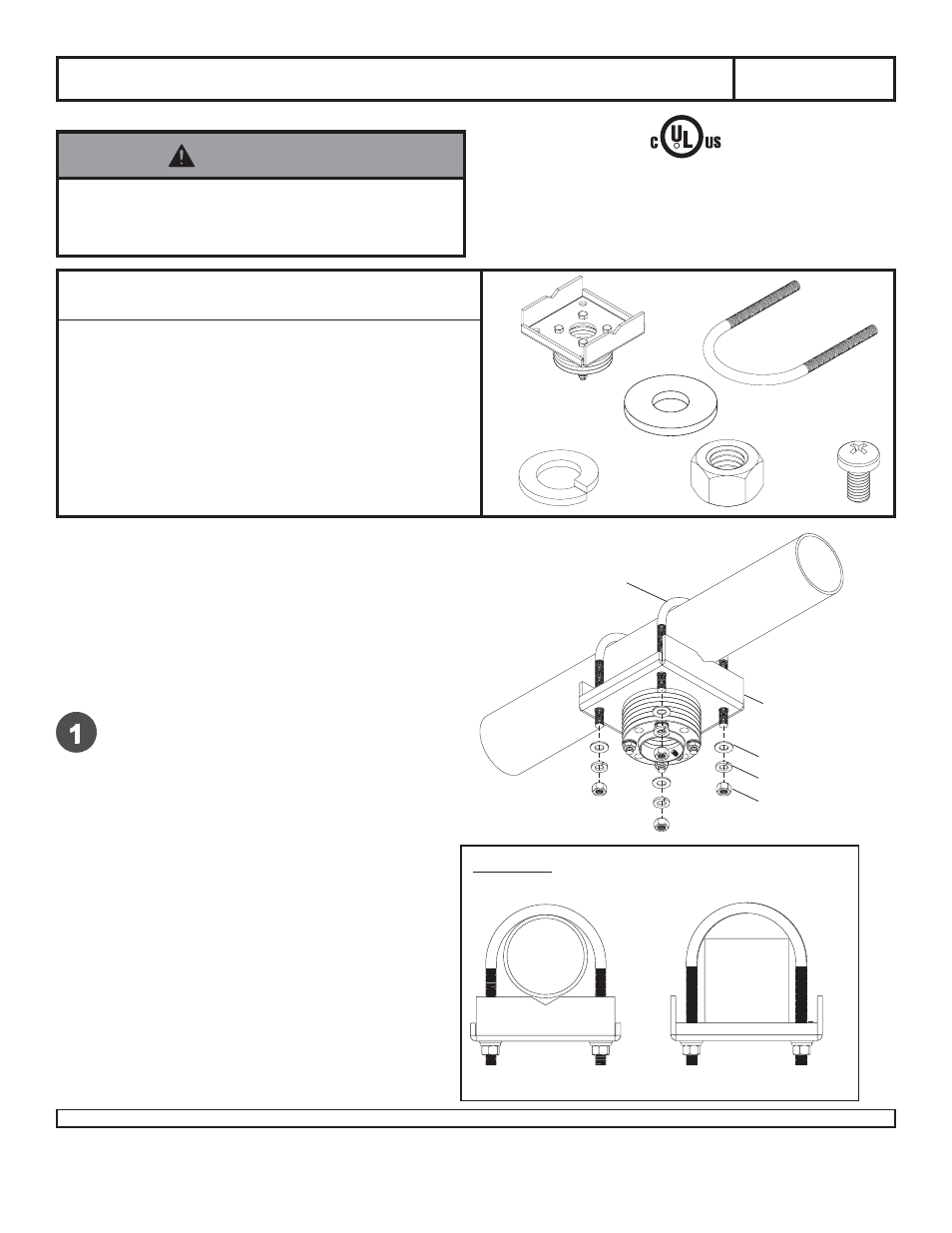

Installation and Assembly - Truss Ceiling Decoupler Adapter

Model: DCT 100

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

Before you start make sure all parts listed are included with your product.

PART #

QTY.

DESCRIPTION

A

ceiling decoupler assembly

1

128-0418

B

U-bolt

2

520-9241

C

washer

4

540-9407

D

lock washer

4

540-9424

E

3/8-16" hex bolt

4

530-9308

F

M5 x 10 mm phillips screw

1

520-9250

Parts List

Select the location on the truss for positioning
the decoupler assembly (A) and position the U-
bolts (B) over the top as shown. Then attach
the decoupler assembly (A) from below with the
hex bolts (E), lock washers (D) and washers
(C) as shown. Tighten bolts to hold decoupler
assembly (A) to U-Bolts (B) but leave loose
enough to allow for minor adjustment to the
angle of the column.

Note: The orientation of the decoupler

assembly (A) relative to the truss
will depend upon the shape of the truss;
see Detail 1 at right.

D

A

B

E

C

This product must be
installed by a qualified,
professional installer.

R

COMBINED BALANCED LOAD CAPACITY:

300 lb (136 kg)*

Detail 1

3" x 3"

max.

For rectangular, square

or I-Beam trusses.

3" dia.

max.

For round pipes.

The orientation of the decoupler assembly
will depend on the shape of the truss

*Includes total weight of the components and hardware.

Tools Required

The following tools are required for assem-
bly and installation, but are not included:

• 9/16" wrench
• Philips screwdriver

F

• Installer must verify that the ceiling truss will safely

support four times the combined weight of all attached
equipment and hardware.

WARNING
