Db a b d, 7accessing game console, Figure 7.1 – Peerless-AV GC-UNV - Installation User Manual
Page 13

Visit the Peerless Web Site at www.peerlessmounts.com
For customer care call 1-800-865-2112 or 708-865-8870.
13 of 13
ISSUED: 01-28-11 SHEET #:125-9176-1
A
Loosen top bottom M8 x 15 mm screws (
E) 1/4 turn and temporarily remove top two M8 x 15 mm screws (D) on
adapter plate (
A) to remove screen as shown below.
7
Accessing Game Console
LOOSEN 1/4 TURN ON
BOTH SIDES
Figure 7.1
REMOVE
REMOVE
B
SCREEN

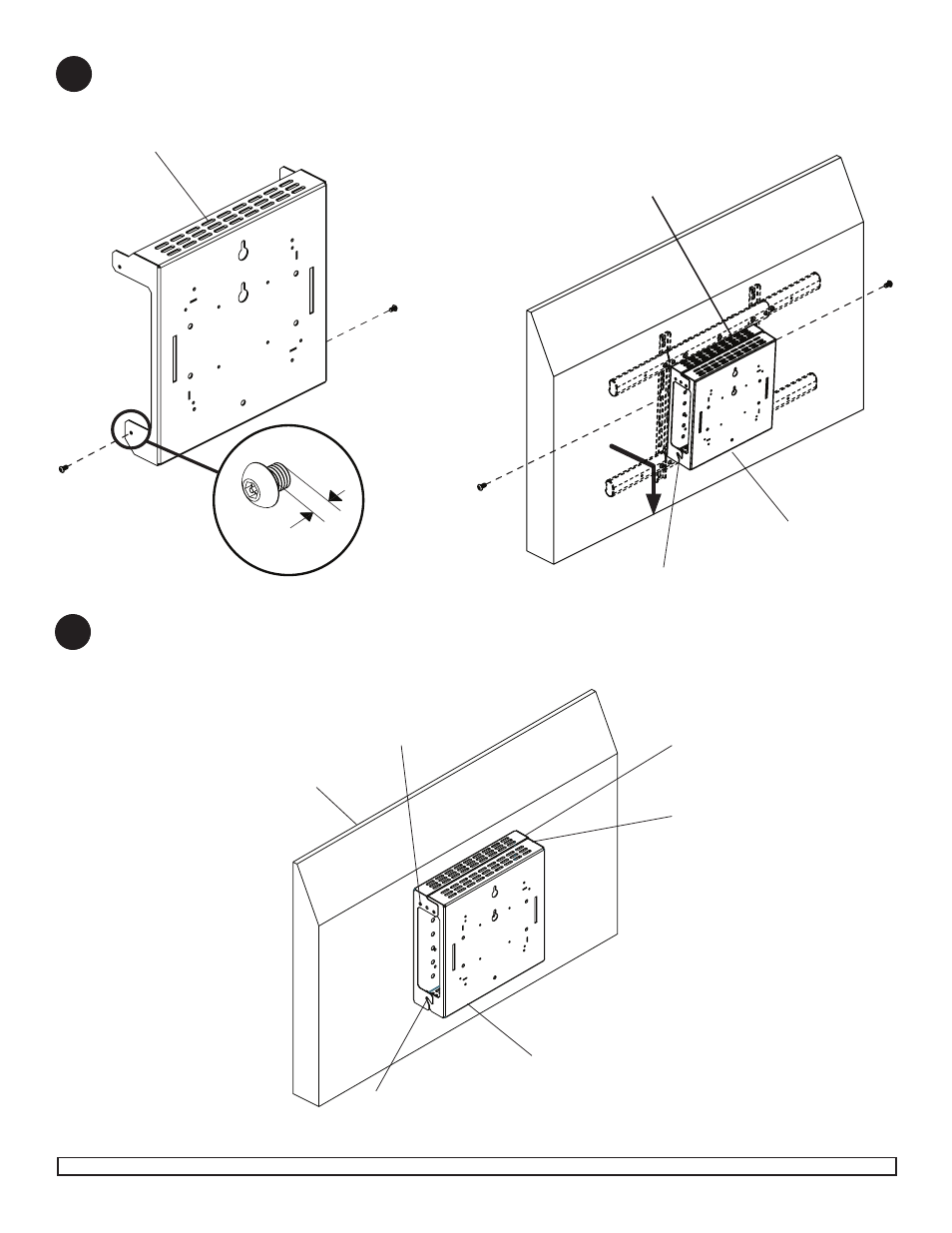

Fasten two M8 x 15 mm screws (
D) into wall plate
(
B) leaving 1/8" of exposed thread
using 4 mm
allen wrench (
I)
as shown below.
6
Hook adapter plate (
A) onto exposed M8 x 15 mm
screws, and secure using two M8 x 15 mm screws
(
D)
using 4 mm allen wrench (
I)
as shown below.
Tighten all screws.
1/8"
D
B
A
B
D
M8 X 15 MM SCREW
© 2011 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc. Other parties’ marks are the property of their respective owners.
