Enable Asymmetric Mode:
1. Asymmetric Mode: Check “Enable” to enable asymmetric mode for Ethernet
Extender port of the Hardened Managed Ethernet Extender.
2. Fixed Rate: Select “Fixed Rate” drop-down menu to disable fixed speed rate or
select a fixed speed rate for Ethernet Extender port from the “Fixed Rate” drop-
down list.
Fixed Rate: bps
Disable
59M /
31M
52M /
24M
47M /
14M
42M / 8M
35M / 6M
28M / 5M
25M / 2M
22M / 1M
14M / 1M
1M / 1M
3. Reload: Select “Reload” button to reload previous settings.
4. Submit: Select “Submit” button to apply new settings.

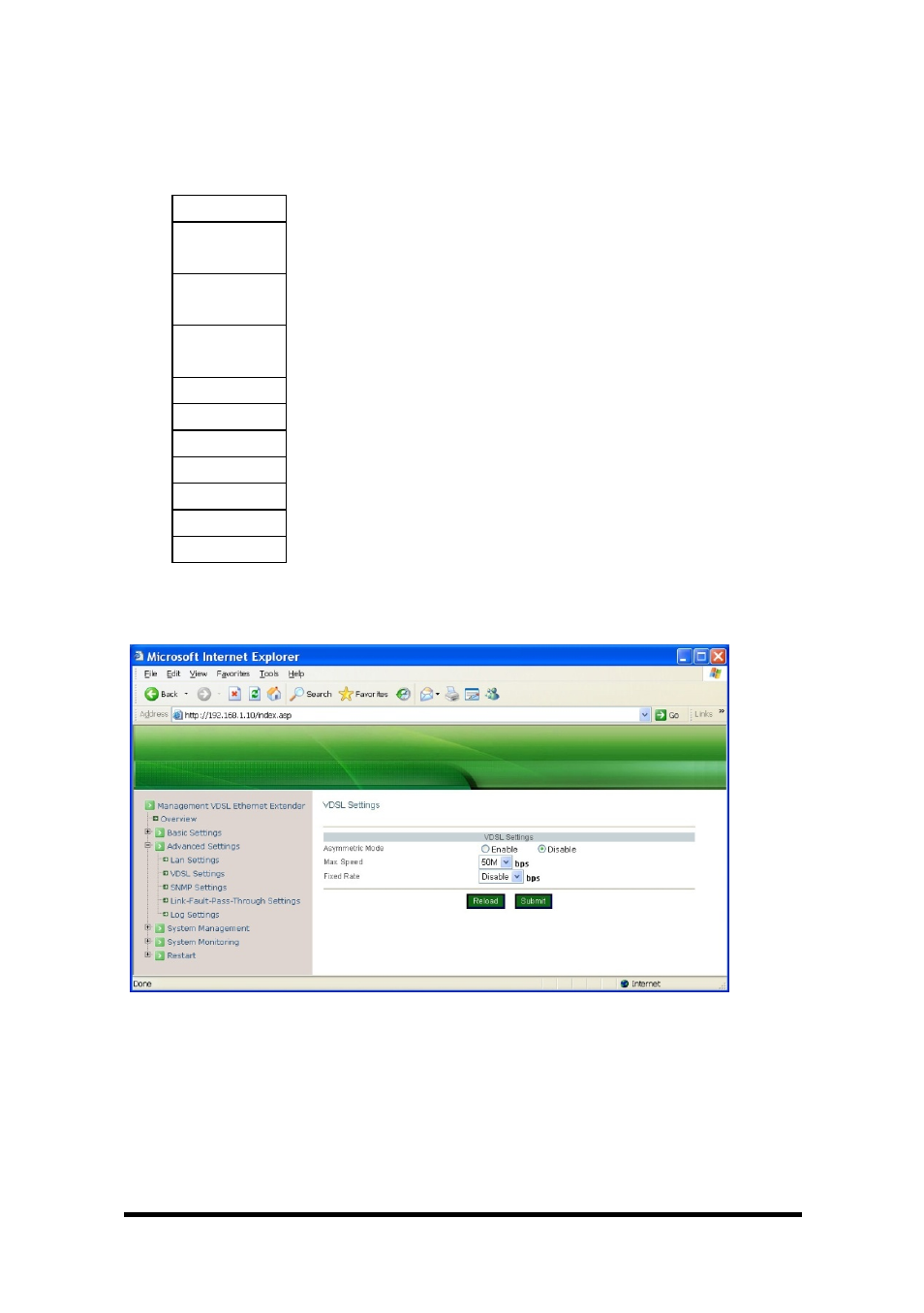

Disable Asymmetric Mode:
1. Asymmetric Mode: Check “Disable” to disable asymmetric mode for Ethernet
Extender port of the Hardened Managed Ethernet Extender.
2. Max. Speed: Select “Max. Speed” drop-down menu to select a maximum speed
for Ethernet Extender port from the “Max. Speed” drop-down list.
