Installation
This chapter gives step-by-step installation instructions for the Hardened Managed
Ethernet Extender.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be
subjected to extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following requirements:
• The Surrounding Air temperature should be between -34 to 60 degrees
Celsius.
• The relative humidity should be less than 95 percent, non-condensing.
• Surrounding electrical devices should not exceed the electromagnetic
field (RFC) standards.
• Make sure that the equipment receives adequate ventilation. Do not
block the ventilation holes of the equipment.
• The power outlet should be within 1.8 meters of the product.

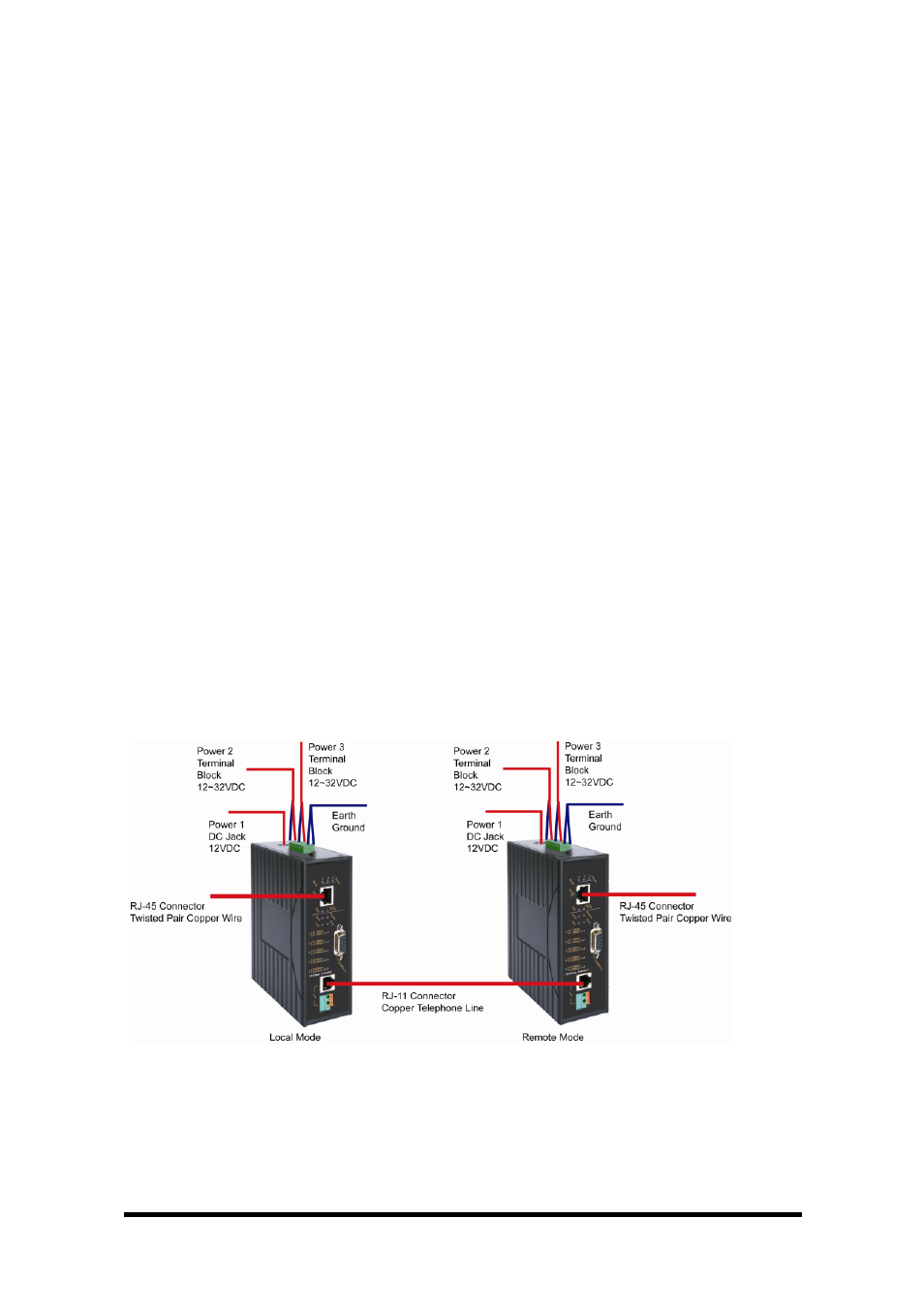

Wiring Diagram
Field Wiring Terminal Markings: Use Copper Conductors Only, 60/7
5℃,
wire range 12-24 AWG, torque value 7 lb-in.
