Page 21
Open “RADIUS Settings” in “System” to make RADIUS configuration.

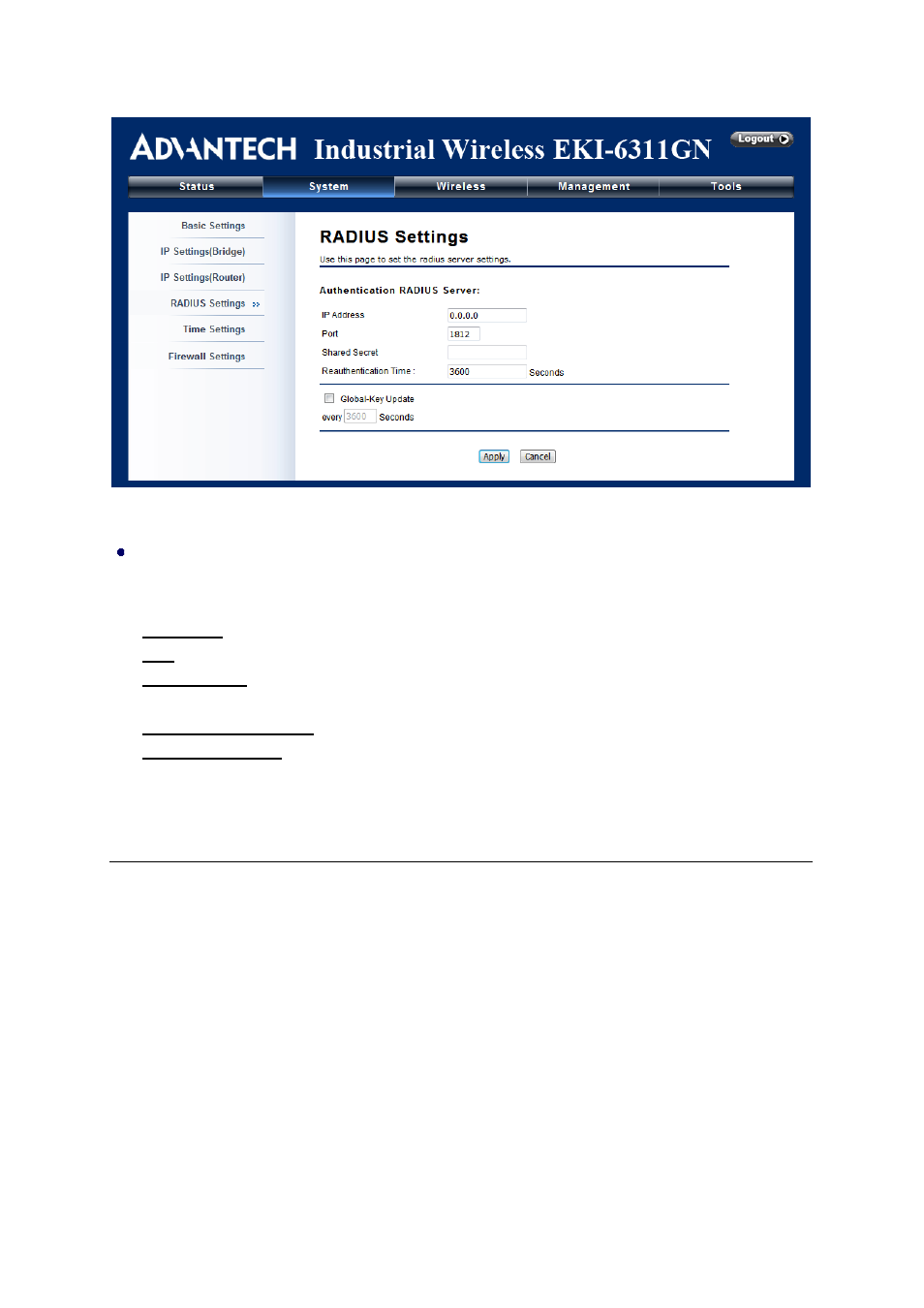

Figure 1713 RADIUS Settings
Authentication RADIUS Server
This is for RADIUS authentication. It can communicate with RADIUS through IP Address, Port
and Shared Secret.
IP Address : Enter the IP address of the Radius Server;
Port : Enter the port number of the Radius Server;
Shared Secret : This secret, which is composed of no more than 31 characters, is shared by the
EKI-6311GN and RADIUS during authentication.
Re-authentication Time : Set the time interval between two authentications.
Global-Key Update : Check this option and specify the time interval between two global-key
updates.
3.6 Time Settings
Compliant with NTP, the EKI-6311GN is capable of keeping its time in complete accord with the
Internet time. Make configuration in “Time Settings” from “System”. To use this feature, check
“Enable NTP Client Update” in advance.
