10

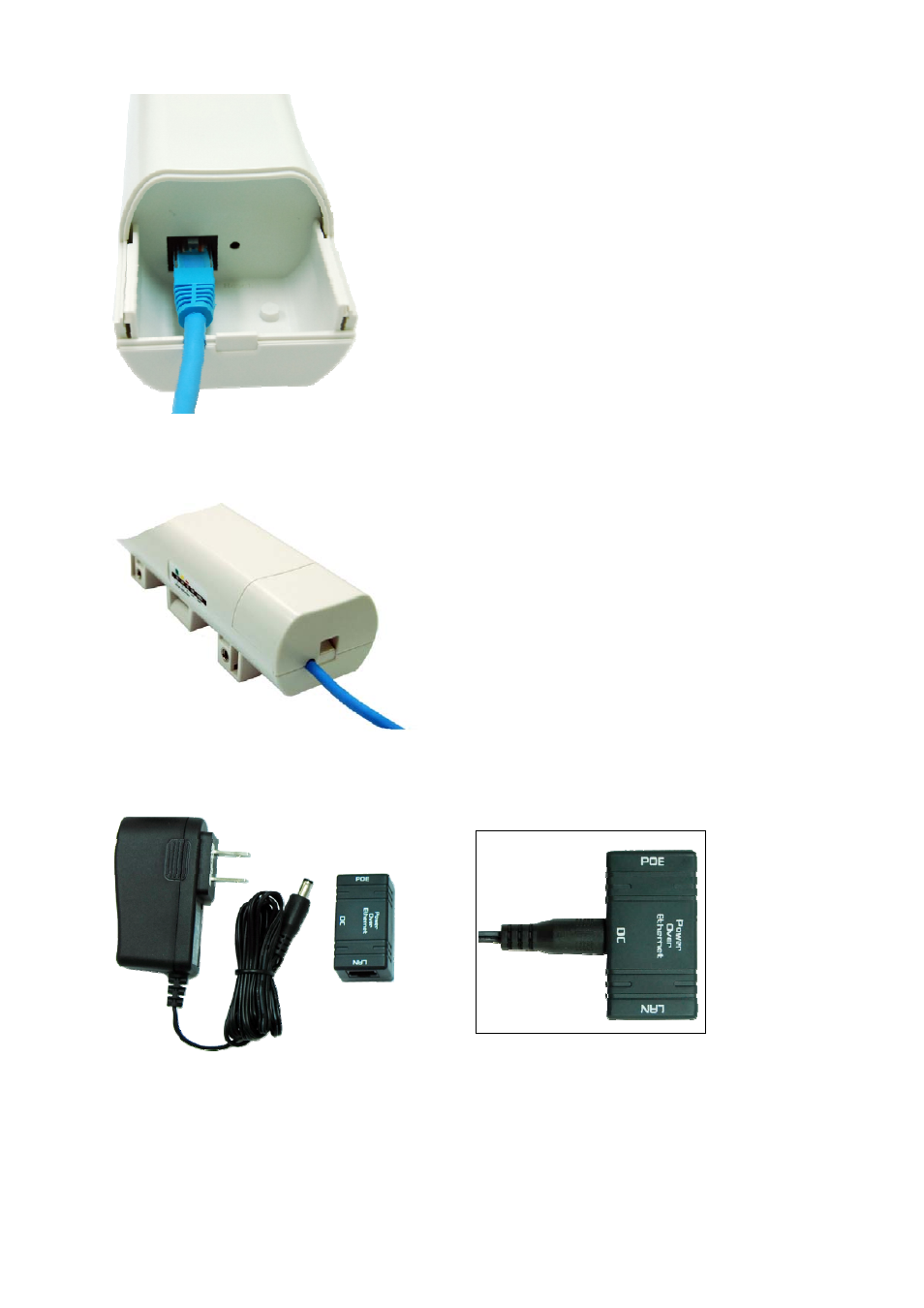

Figure 3 Cable Connection

3.

Slide the cover back to seal the bottom of the EKI-6311GN.

Figure 4 Seal the Bottom

4.

Plug the power cord into the DC port of the PoE injector as the following right picture shows.

Figure 5 Connect to PoE Injector

5.

Plug the other side of the Ethernet cable as shown in Step 3 into the PoE port of the PoE

injector and get the complete set ready.
