12

2.4

Pole Mounting

Pole Mounting

1.

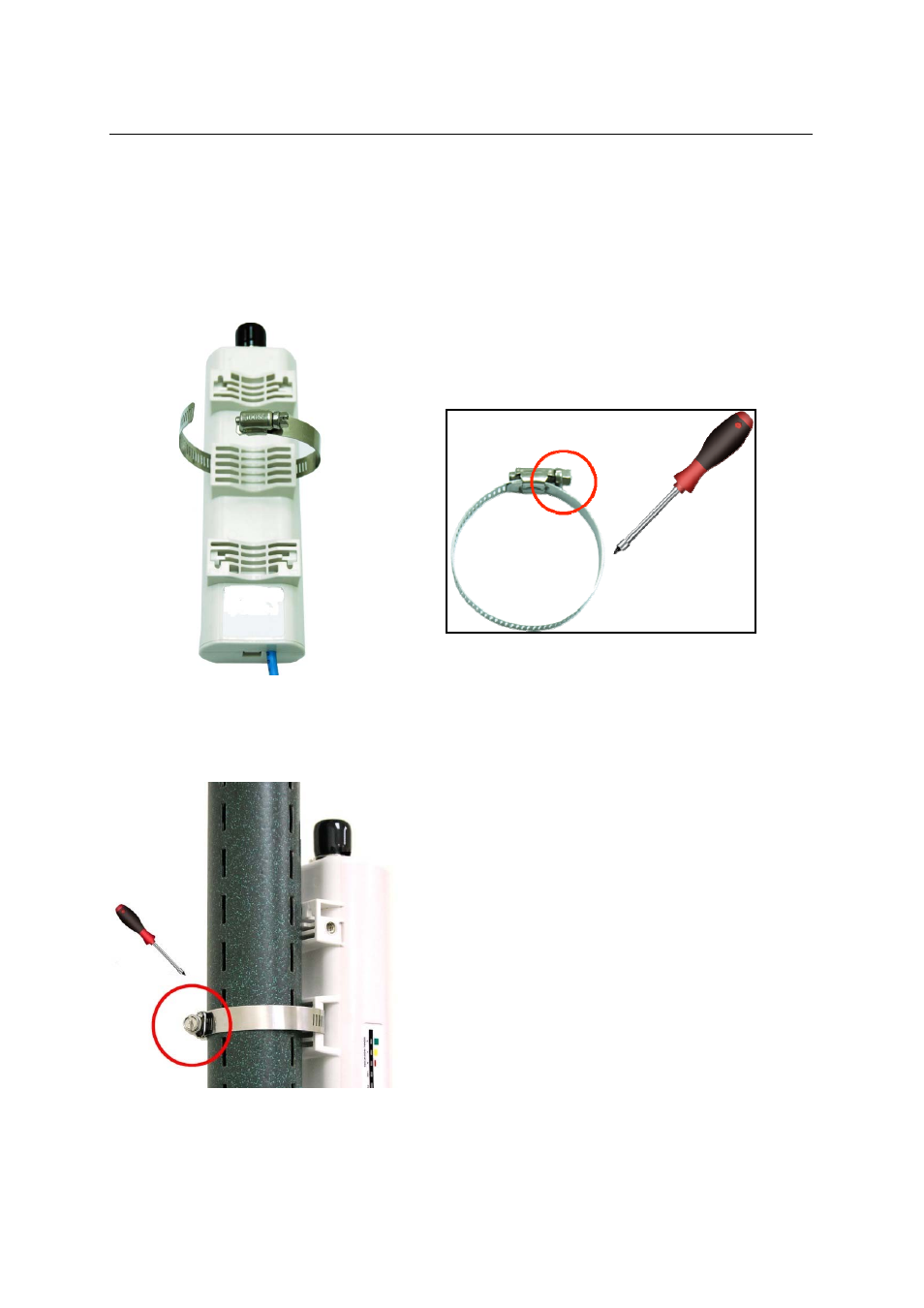

Turn the EKI-6311GN over. Put the pole mounting ring through the middle hole of it. Note that

you should unlock the pole mounting ring with a screw driver before putting it through EKI-

6311GN as the following right picture shows.

Figure 7 Pole Mounting – Step 1

2.

Mount EKI-6311GN steadily to the pole by locking the pole mounting ring tightly.

Figure 8 Pole Mounting – Step 2

3.

Now you have completed the hardware installation of EKI-6311GN.
