Using the External Antenna

If you prefer to use the external antenna for your application instead of the built-in directional antenna,
please follow the steps below.

1.

Grab the black rubber on the top of EKI-6311GN, and slightly pull it up. The metal N-type

connector will appear.

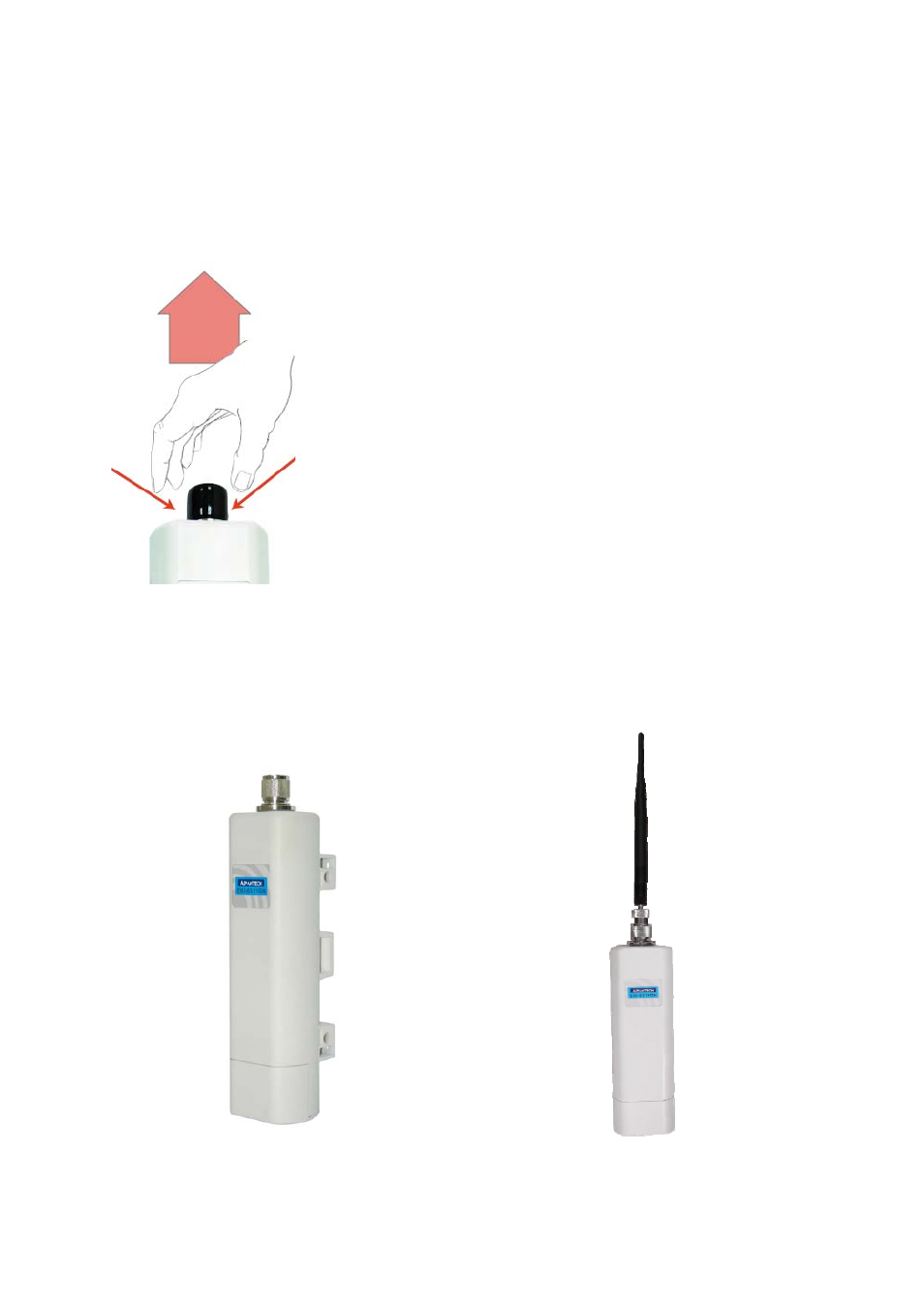

Figure 90 Move the Rubber

2.

Connect your antenna with the N-type to RSMA adaptor on the top of EKI-6311GN. The

following picture shows the full set of EKI-6311GN:

Figure 11 Removed the Rubber

Figure 12 Full set with antenna
