MAX3301E
USB On-the-Go Transceiver and Charge Pump
______________________________________________________________________________________ 17
CONTROL PIN/BIT INPUT OUTPUT
MODE
SUS GP_EN OE/INT DAT_SE0 DAT_VP SE0_VM D+ D-
DESCRIPTION
0 0 0 1 0 0 0 1
0 0 0 1 1 0 1 0
0 0 0 1 0 1 0 0
0 0 0 1 1 1 0 0
0 0 0 0 0 0 0 0
0 0 0 0 1 0 1 0
0 0 0 0 0 1 0 1
Functional
VP_VM
0 0 0 0 1 1 1 1
U S B functi onal m od e
tr anscei ver and I
2 C i nter face
ar e ful l y functi onal
1 0 0 1 0 0 0 1
1 0 0 1 1 0 1 0
1 0 0 1 0 1 0 0
1 0 0 1 1 1 0 0
1 0 0 0 0 0 0 0
1 0 0 0 1 0 1 0
1 0 0 0 0 1 0 1
1 0 0 0 1 1 1 1
Suspend
1 0 1 X X X
Driver is
Hi-Z
Driver is
Hi-Z
USB suspend mode
Receiving 0 0 1 X X X
Driver is
Hi-Z
Driver is
Hi-Z
See Table 4
General-
purpose
buffer
X 1 0 1 See Table 2
General-purpose buffer
mode

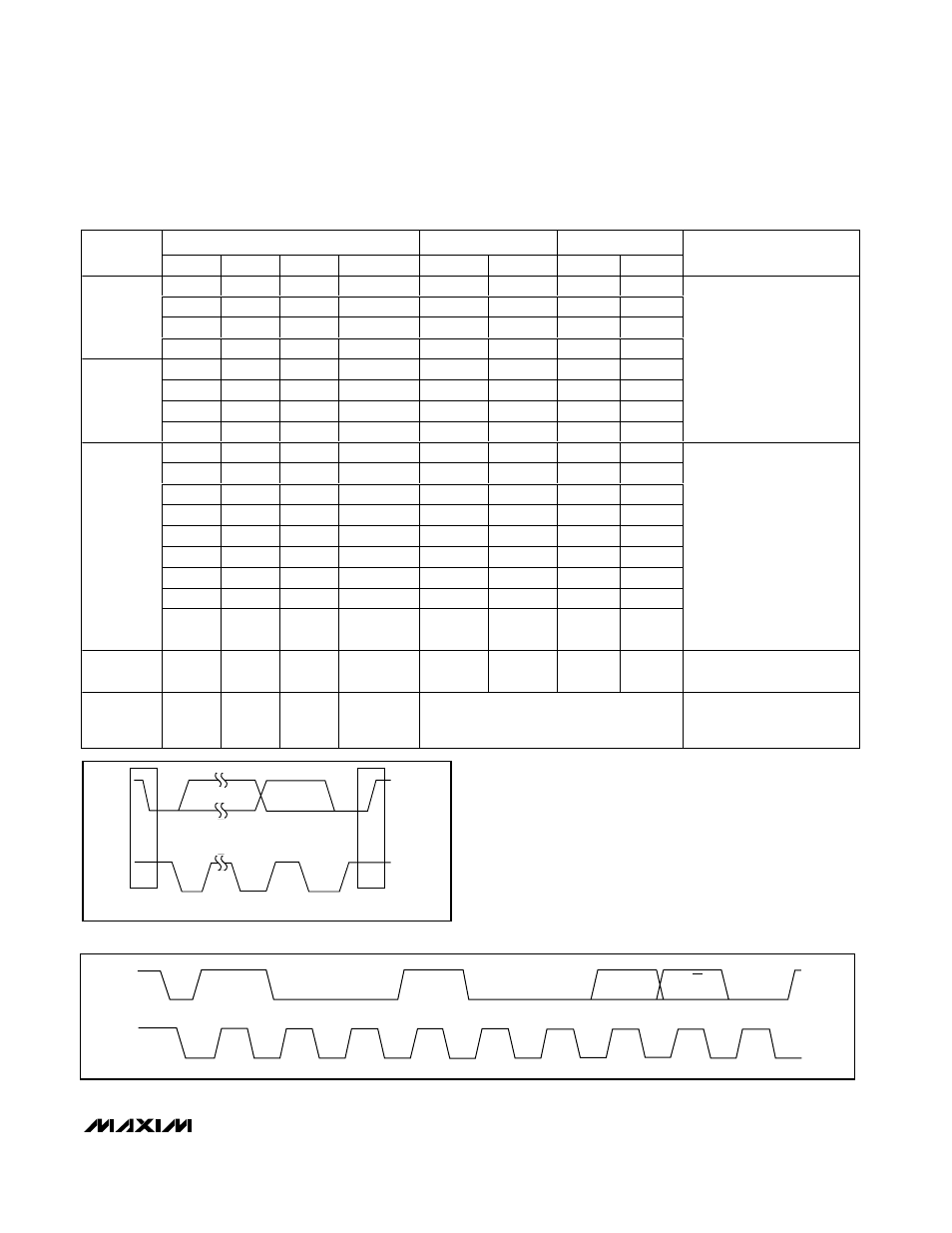

Table 3. Transmit Mode
SDA
SCL S
START
CONDITION
P
STOP
CONDITION
Figure 14. Start and Stop Conditions
SDA
SCL
START MSB
1 0 0 1 0 0 A0
LSB
ACK R/W
Figure 15. Slave Address
