13. Accessory Instructions
PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall 89
Sidedraw Instructions (Continued)

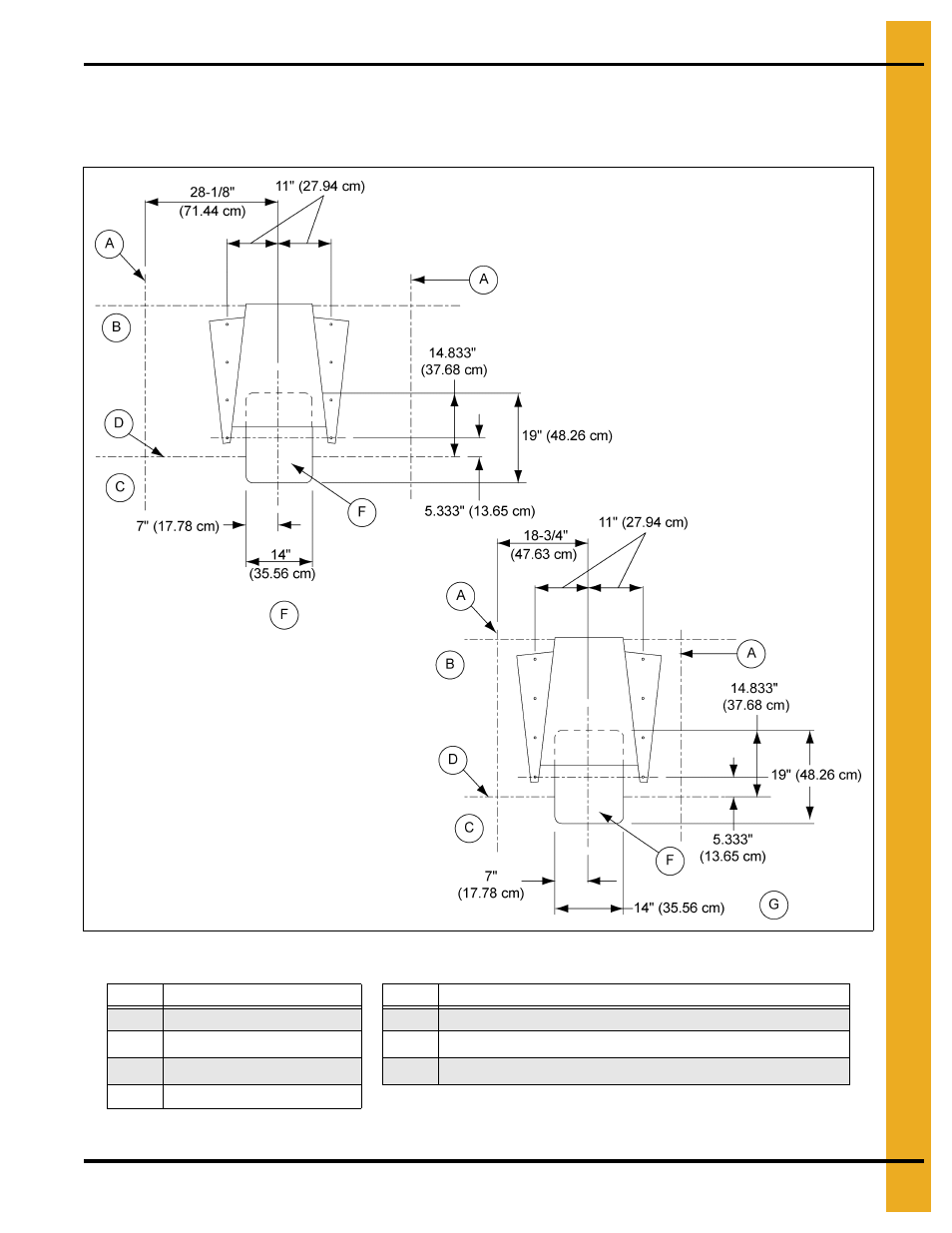

2.66" Sidedraw Instructions - 2 and 3 Post (Externally Stiffened)
Figure 13E
NOTE: Unload tubes and supports from rack and pinion not provided by GSI.
Ref # Description Ref # Description
A Stiffener Column E Field Cut Discharge Hole 1-1/2" Radius at Corners (3.80 cm)
B 7 th Sidewall Ring F Externally Stiffened - 2 Post
C 6
th
Sidewall Ring G Externally Stiffened - 3 Post
D Horizontal Seam
