9. Stiffener Instruction (Inside Stiffened)

44

PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall

Laminated to Universal Stiffener Splice 2.66" Corrugation

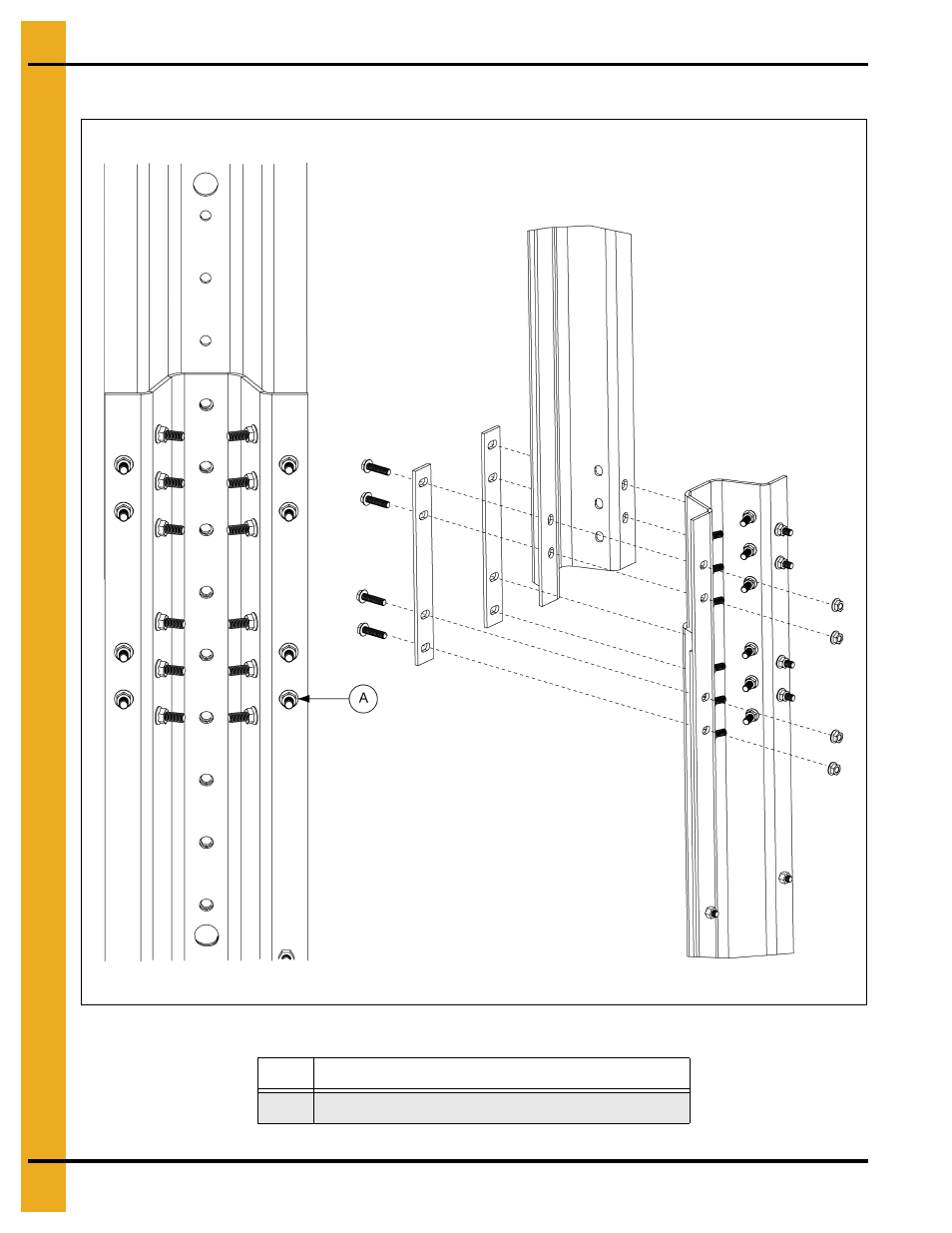

Figure 9I Bolting Detail for Laminated to Universal Stiffener Connection

Ref #

Description

A

3/8" x 1-1/2" Flange Bolts and 3/8" Flange Nuts (20)

NOTE: Install bolts in all bolt hole
locations on stiffener splices.
