13. Accessory Instructions
PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall 85
Sidedraw Instructions (Continued)
2.66'' Sidedraw Instructions - 2 Post (Viewed from Inside of Bin) (Continued)

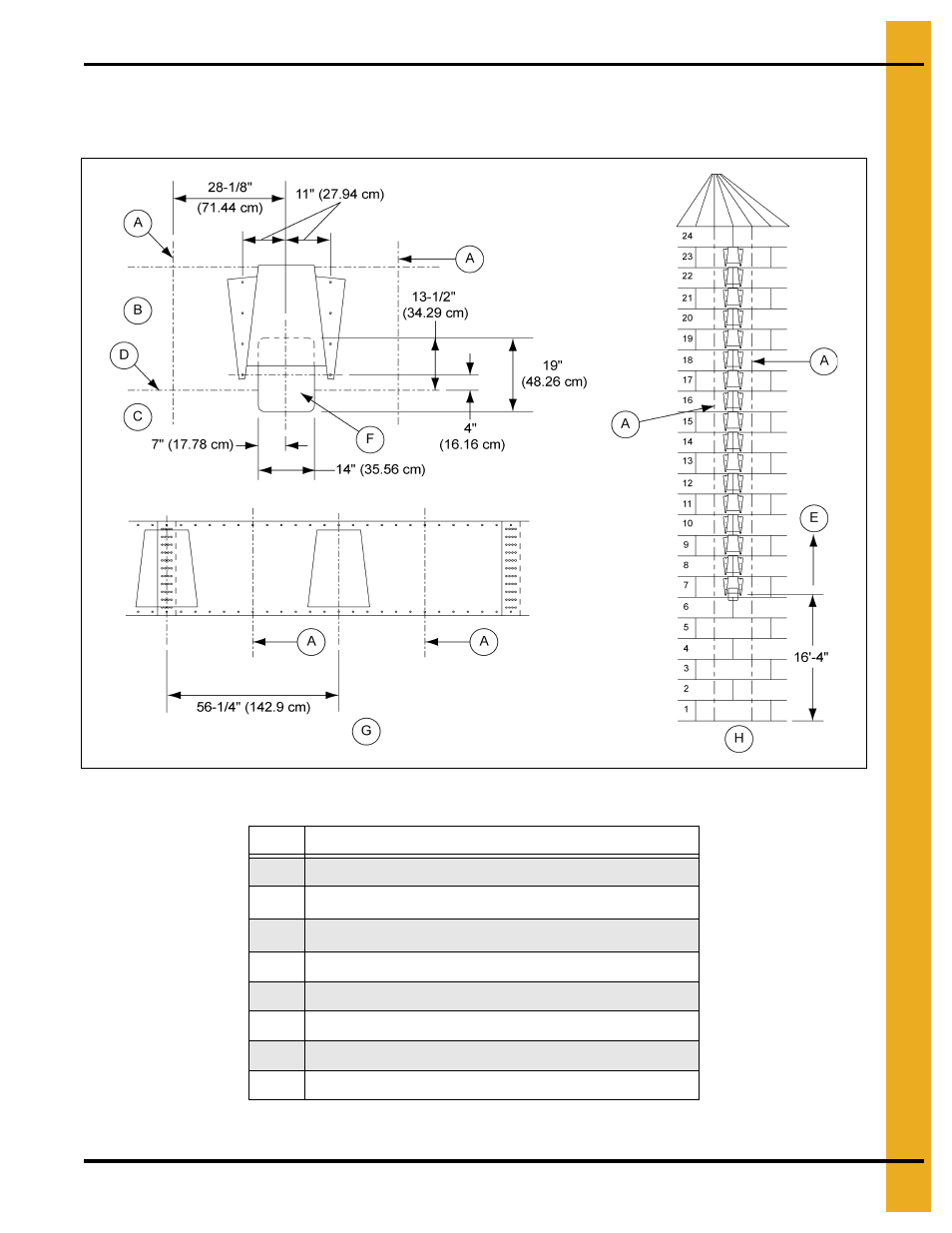

Figure 13A
NOTE: Unload tubes and support from rack and pinion not provided by GSI.
Ref # Description
A Stiffener Column
B 7 th Sidewall Ring
C
6
th
Sidewall Ring
D Horizontal Seam
E Field cut discharge hole 1-1/2" radius at corners (3.80 cm)
F Externally stiffened is 1-1/3" higher
G First Chute Location
H Viewing Inside of Typical 24 Ring Bin
