11. Stiffener Instruction (Outside Stiffened)

66

PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall

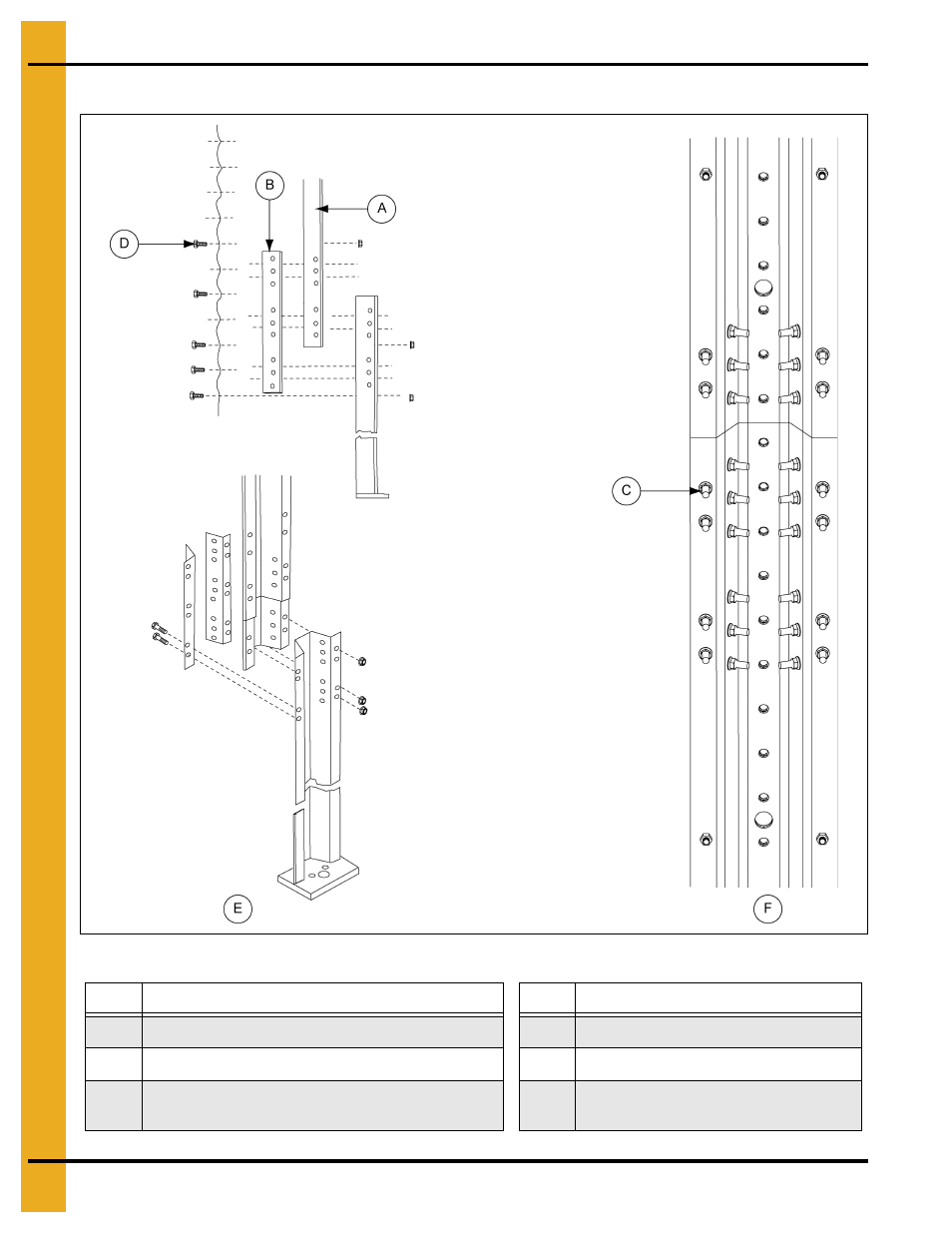

Laminated Stiffener Splice 2.66" Corrugation

Figure 11G

Ref #

Description

Ref #

Description

A

Laminated Stiffener Assembly (SS-6929)

D

Use 3/8" x 1-1/2" Bin Bolt and 3/8" Hex Nut

B

Back Plate Splice (Two (2) per Connection) (SS-6966)

E

Stiffener Detail for SS-6929

C

3/8" x 1-1/2" Flange Bolts and 3/8" Flange Nuts (30)

F

Bolting Detail for Laminated to
Laminated Stiffener Connection

NOTE: Install bolts in all bolt hole
locations on stiffener splices.
