11. Stiffener Instruction (Outside Stiffened)

PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall

67

Laminated Stiffener Splice 2.66" Corrugation (Continued)

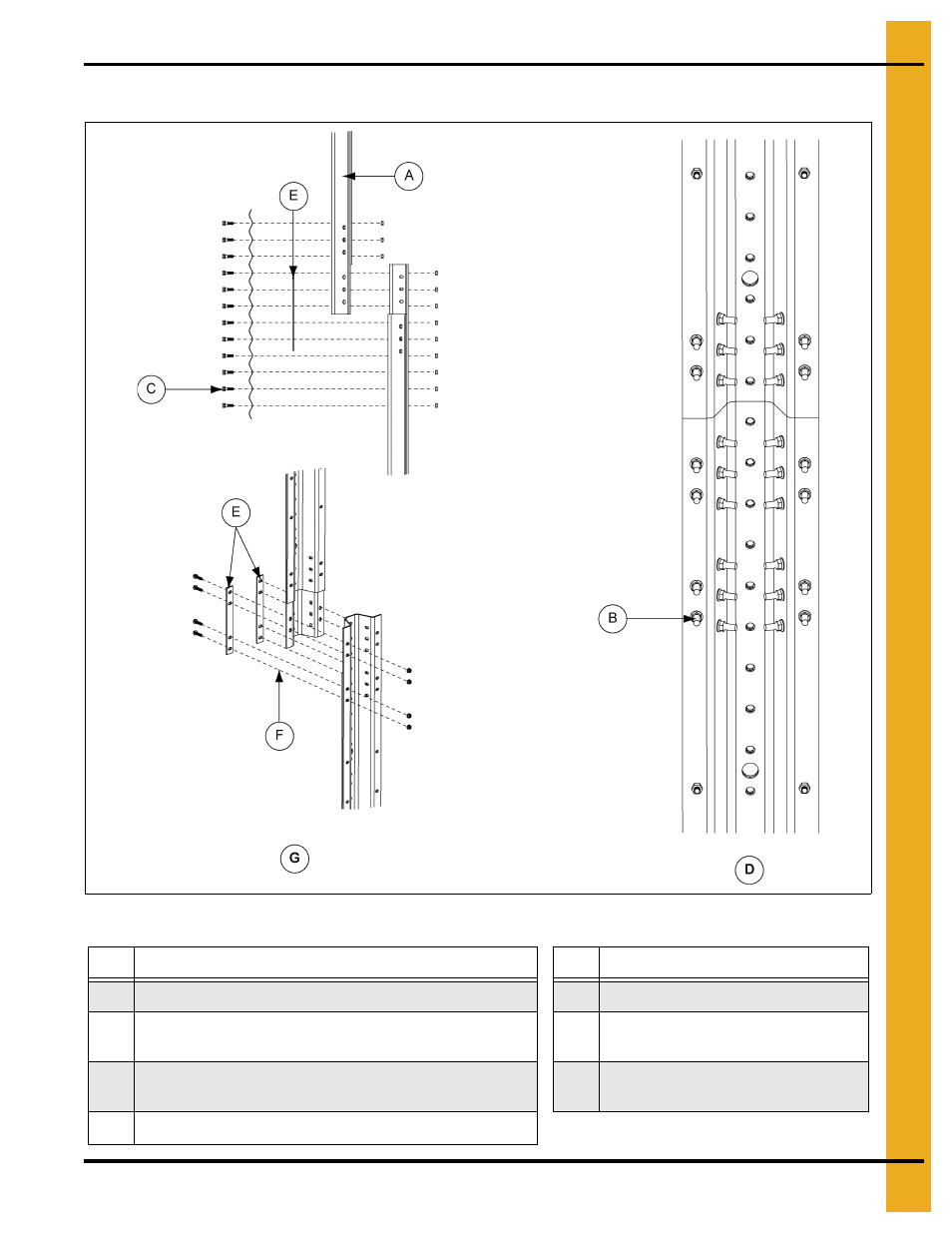

Figure 11H

Ref #

Description

Ref #

Description

A

Laminated Stiffener Assembly (SS-6929)

E

Laminated Stiffener Splice (SS-7427)

B

3/8" x 1-1/2" Flange Bolts and 3/8" Flange Nuts (30)

F

Use 3/8" x 1-1/2" Flange Bolt and
3/8" Flange Nut

C

Use 3/8" x 1-1/2" Bin Bolt and 3/8" Hex Nut

G

Special Laminated Stiffener Splice Detail
(SS-7427 substituted for SS-6966)

D

Bolting Detail for Laminated to Laminated Stiffener Connection

NOTE: Install bolts in all bolt hole
locations on stiffener splices.
