9. Stiffener Instruction (Inside Stiffened)

PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall

41

2.66'' Corrugation Commercial Stiffeners Splice Details (Continued)

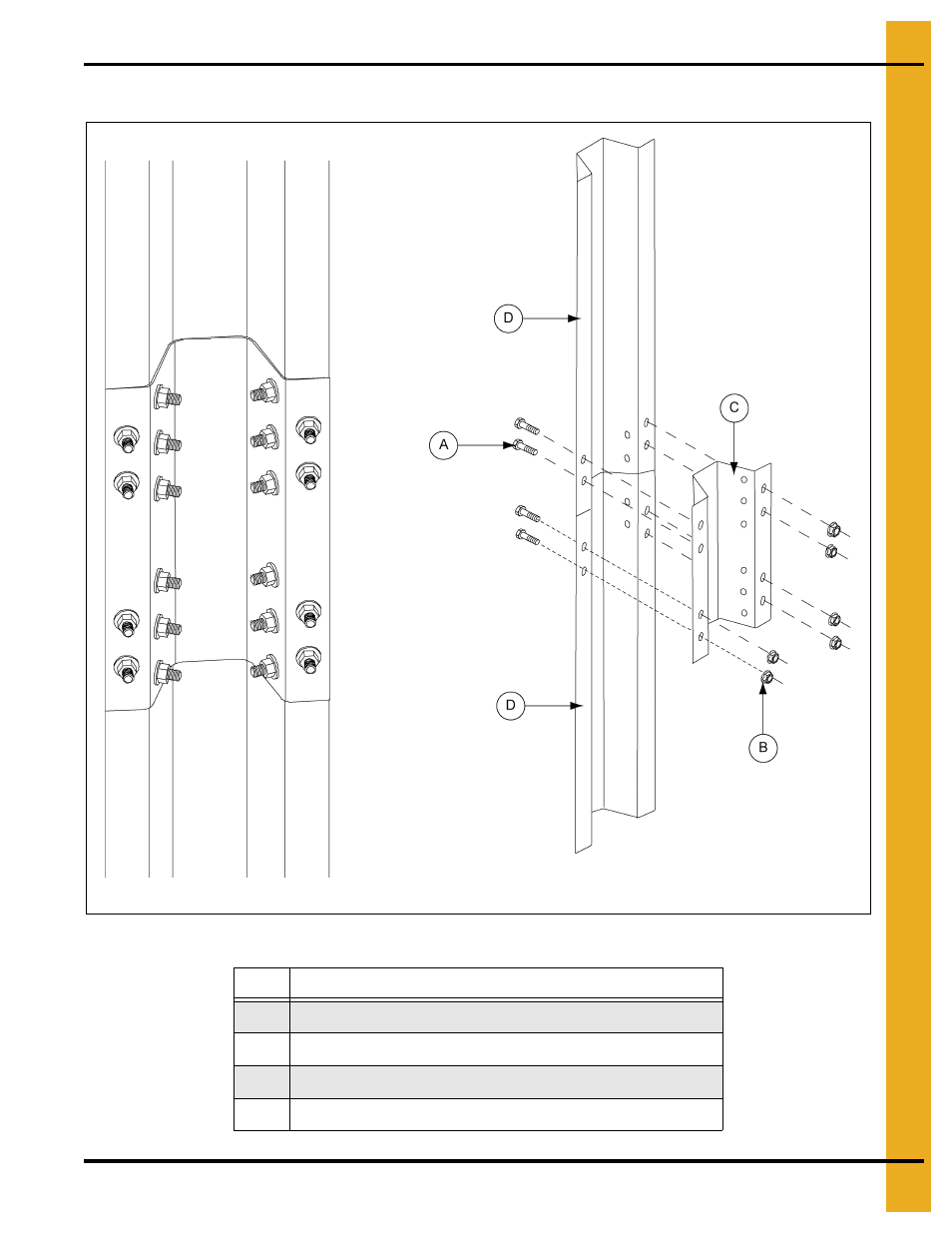

Figure 9F 5 Gauge, 6 Gauge, 8 Gauge and 9 Gauge Bearing Splice

Ref #

Description

A

3/8" Diameter Hex Flanged Head Bolt (No Sealing Washer)

B

3/8" Flange Nut

C

Splice Plate 8 Gauge (SS-7053)

D

5 Gauge, 6 Gauge, 8 Gauge and 9 Gauge Standard Stiffener

See

Page 34

for usage chart.

NOTE: Install bolts in all bolt hole locations on stiffener splices.
