7. Caulking Detail
PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall
29
Caulking Detail for Laminated Sheets (Continued)
When bolting the two (2) assembled/laminated sheets to each other, apply one strip of caulking near the
outside edge of the outer sheet, between the outer two (2) rows of bolts and outside the last row of bolts.
A strip of caulking 12" long should be placed along the horizontal seams. Before bolting
the next ring into place, apply one strip of caulking 12" long on the front of the under lapped sheet at each
joint. Also, a 12" strip of caulking is to be placed along the lower horizontal edge of lapping sheet at the
vertical seam. This will fill the space that occurs between the holes caused by the overlapping sheets.
Additional 12" strips must be used to fill larger gaps that may occur with thicker gauges.
When assembling two (2) sheets to make a laminated sheet assembly, apply a row of caulk all around the
vertical seam.

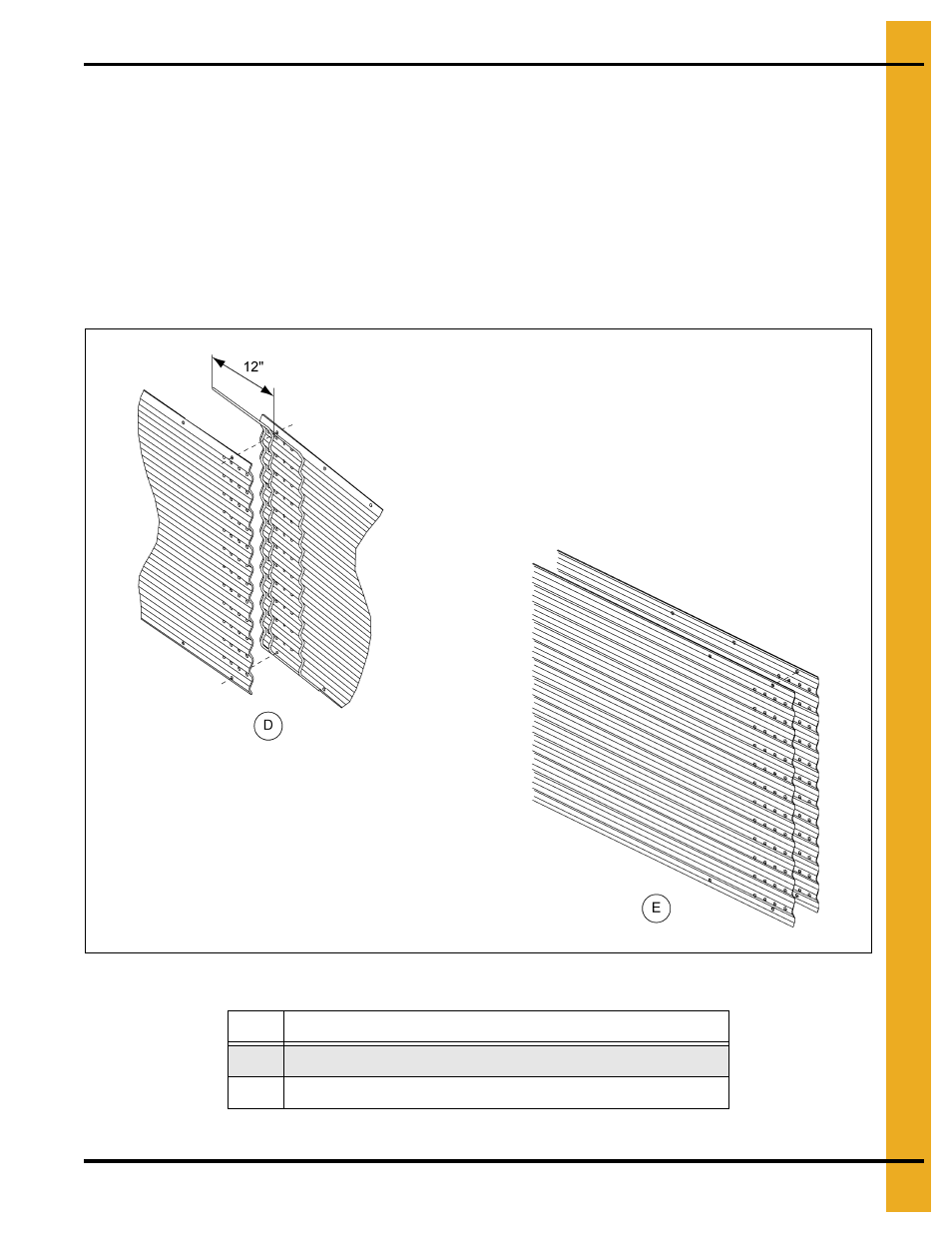

Figure 7D
Ref #
Description
D
Caulking detail for assembled sheets as viewed from inside of bin.
E
Laminated Sheet Detail (Caulking not shown.)
