Page 31: Installation
8. Installation
PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall
31

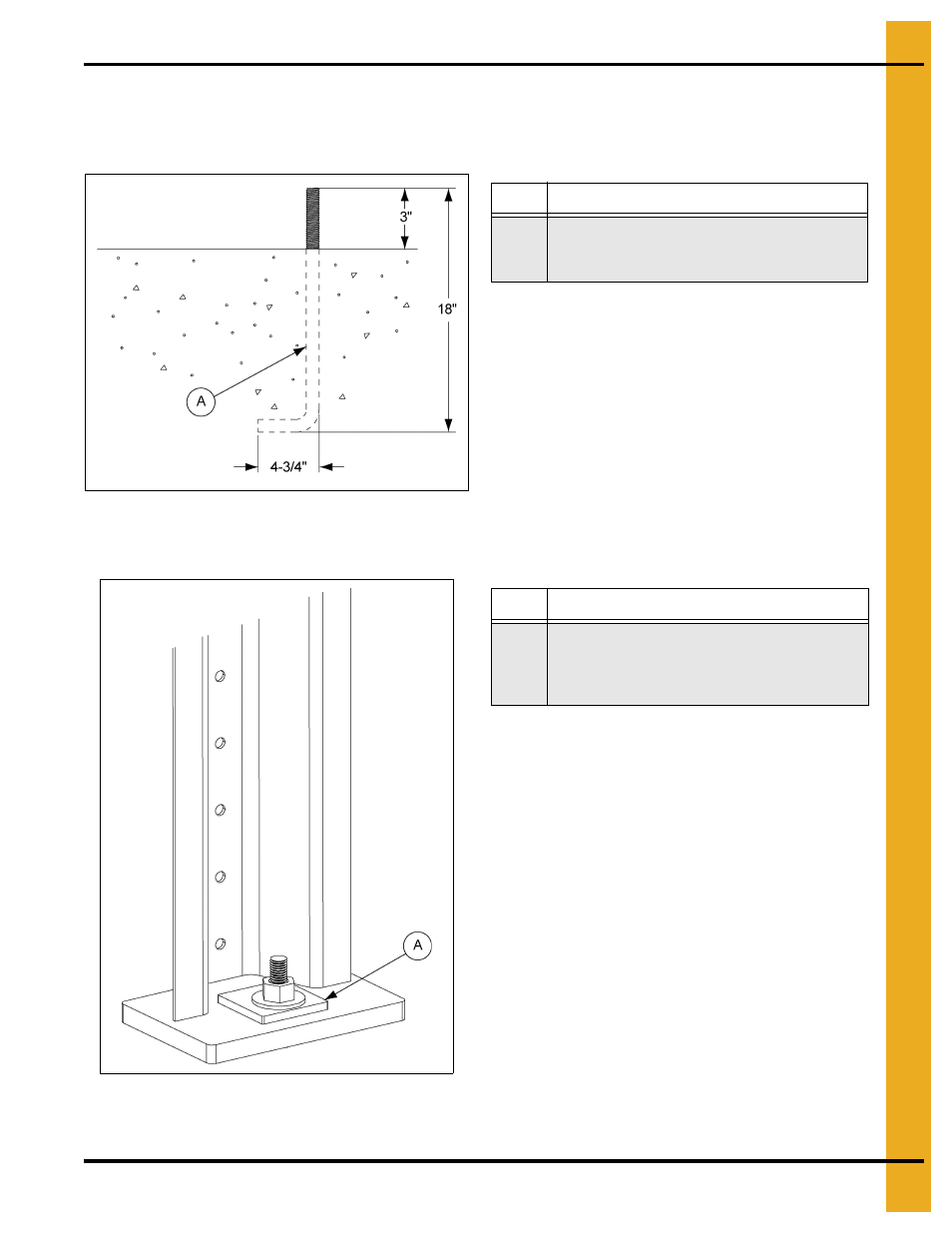

Anchor Bolt Detail
This is a minimum requirement for anchorage on standard tanks. Refer to sidedraw instructions for special
anchorage details on
.
Figure 8B
Anchor Bolt Washer Installation
Figure 8C
Ref #
Description
A
3/4" Diameter anchor bolt shown bolt assembly.
(B-4161 3/4" bolt assembly package.) 3/4" is
minimum diameter permitted.
Ref #
Description
A
A square plate washer (provided) must be placed
in between the base plate and the anchor bolt
nut. 3/4" Anchor plate washer part # is HT-635.
1" Anchor plate washer part # is B-6756.
