9. Stiffener Instruction (Inside Stiffened)
36 PNEG-1000 2.66" Commercial Tank Stiffener and Sidewall
Commercial Stiffeners for 2.66'' Corrugation (Continued)

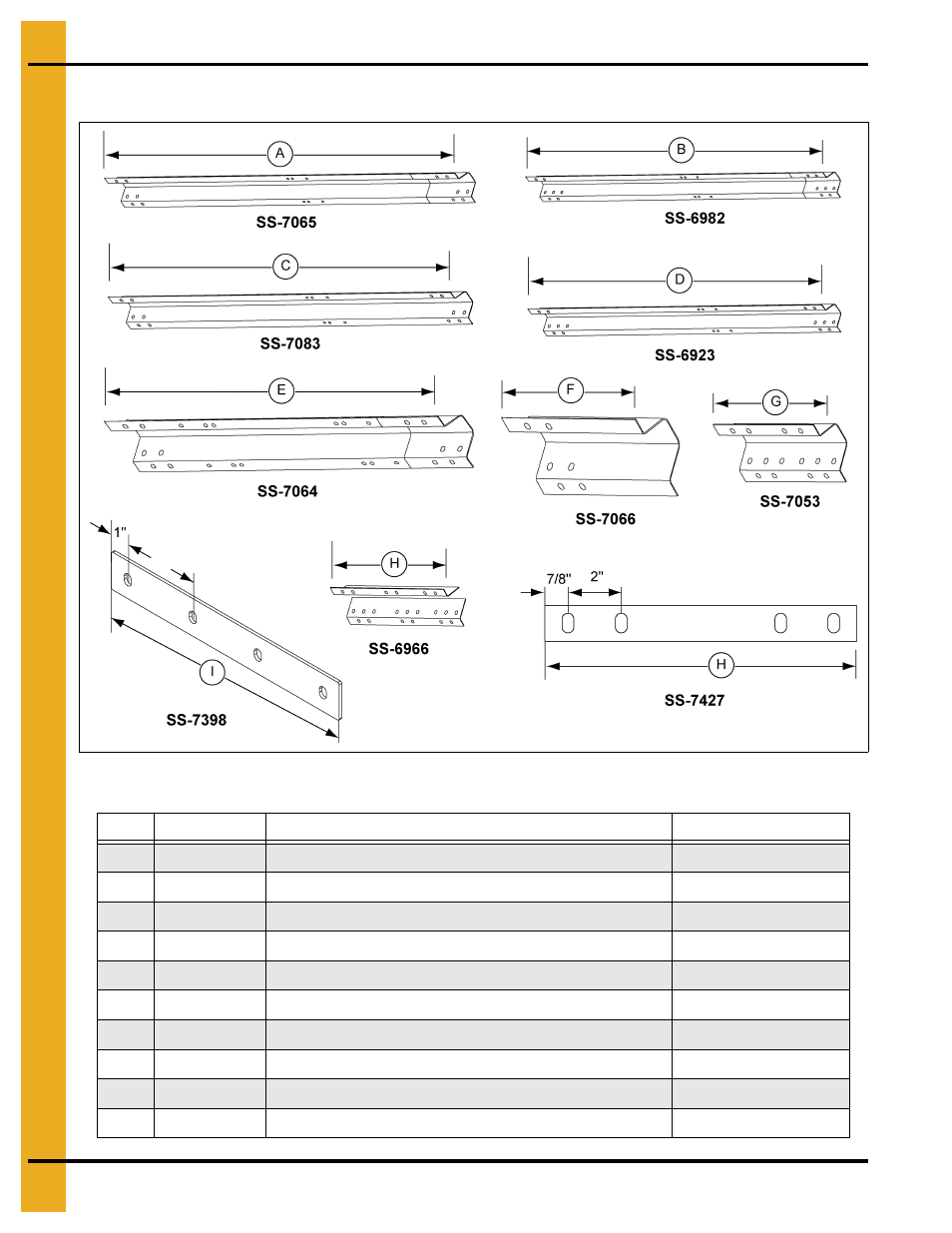

Figure 9B
Ref # Part # Description Length
A SS-7065 14 Gauge and 15 Gauge 2 Ring Stiffener 70.969" (180.260 cm)
B SS-6982 12 Gauge and 13 Gauge 2 Ring Stiffener 70.969" (180.260 cm)
C SS-7083 10 Gauge and 11 Gauge 2 Ring Stiffener 63.938" (162.401 cm)
D SS-6923 5 Gauge, 6 Gauge, 8 Gauge and 9 Gauge 2 Ring Stiffener 63.938" (162.401 cm)
E SS-7064 Offset 1 Ring Stiffener 38.969" (98.981 cm)
F SS-7066 1 Ring Top 12.469'' (31.671 cm)
G SS-7053 8 Gauge Splice 14'' (35.56 cm)
H SS-6966 or Laminated Back Plate Splice 22'' (55.88 cm)
H SS-7427 Laminated Back Plate Splice 11-3/4" (29.845 cm)
I SS-7398 Enhanced Back Plate Splice 14" (35.56 cm)
4" Typical
