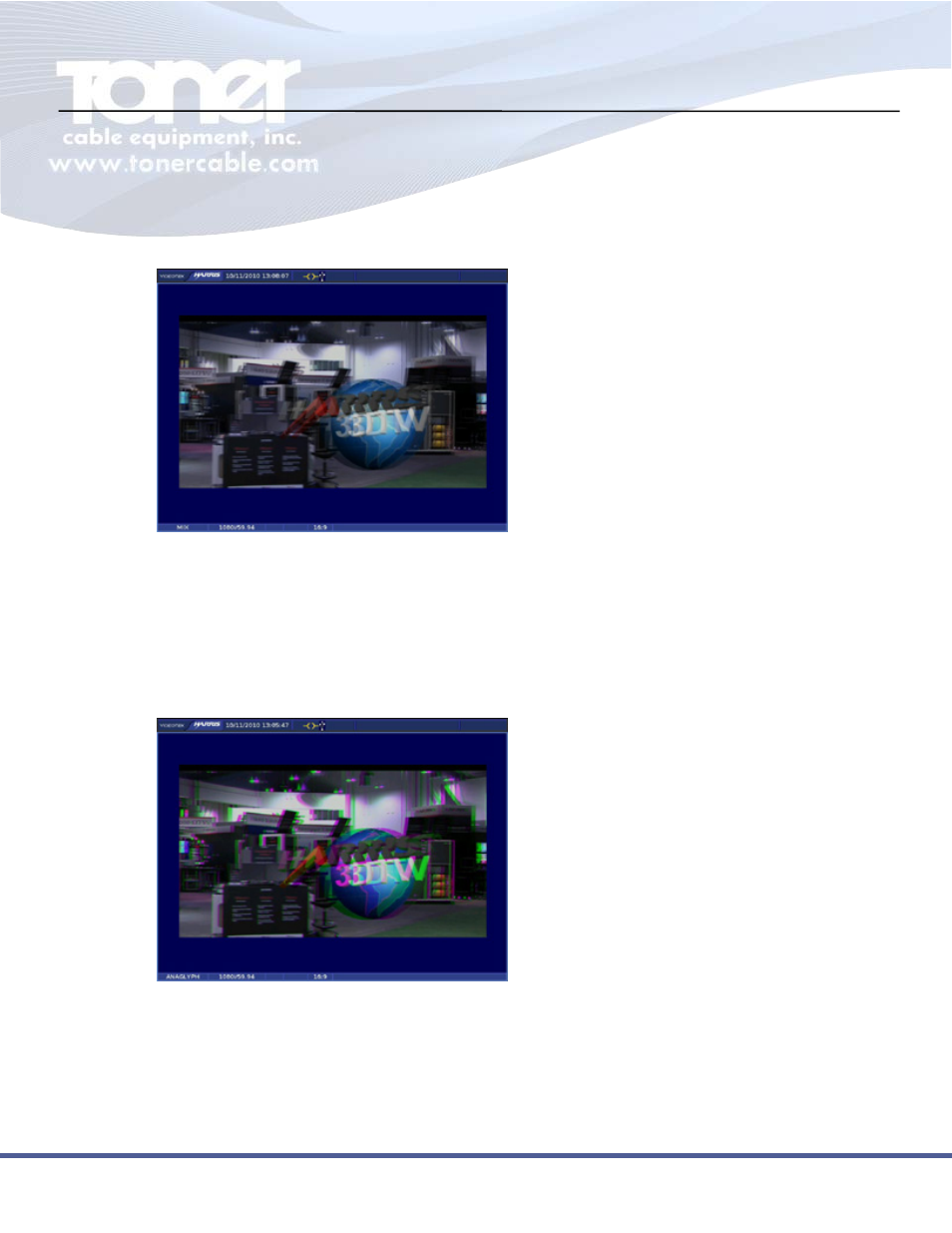

Mix picture display

The Anaglyph picture display allows the use of common red/green or cyan/magenta glasses to see the
3D effect without special monitors or expensive, active 3D glasses. This method of viewing 3D is inferior
to the use of shutter glasses, but makes it easy for an operator wearing anaglyph glasses to check the
3D effect on any color display — including the TVM9150 front-panel LCD display. Anaglyph glasses
possess two different lenses of different (usually chromatically opposite) colors, such as red and cyan or
green and magenta.



Anaglyph picture display
